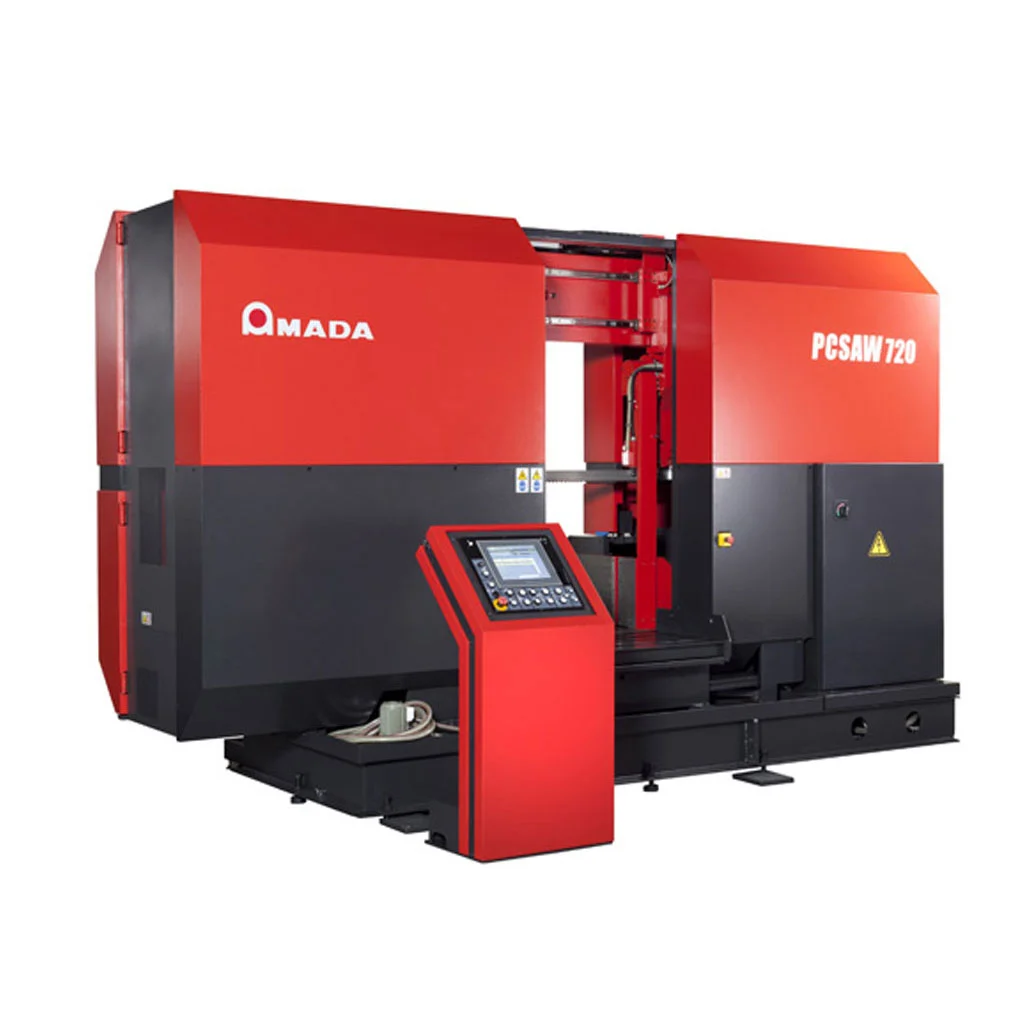

NEW AMADA PCSAW720

32″ x 28″ Amada Horizontal Pulse Cutting Band Saw Model PCSAW720 Specifications:

32″ x 28″ Amada Horizontal Pulse Cutting Band Saw Model PCSAW720 Features:
PULSE CUTTING • Single pulse cutting cancels the vibrations that occur during the penetration force. This technology decreases cutting resistance while increasing blade life and cutting rates. Increased blade life is now guaranteed without sacrificing productivity.
INCREASED BLADE LIFE WITHOUT SACRIFICING PRODUCTIVITY • By controlling vibrations that occur during the penetration force, pulse cutting reduces cutting resistance and blade wear in half. Lower cost is ensured by the extended blade life.
AUTOMATIC DUAL WIRE BRUSH SYSTEM • The dual wire brushes contact the sides of the blade at the teeth, instantly cleaning the gullet area and avoiding excessive brush wear due to improper settings.
MOTION DETECTOR
FULL STROKE VISES
BLADE DEVIATION MONITOR
VERTICAL PULSE CONTROL
LARGE AREA CHIP CONVEYOR
3D AUTOMATIC ADJUSTING WIRE BRUSH
WINDOWS®-BASED CNC CONTROLS
BLADE SPEED CONTROLLED BY INVERTER
CUTTING FLUID LEVEL DETECTOR
HYDRAULIC BLADE TENSIONING
AUTOMATIC POSITIONED GUIDE ARM
WHEEL COVER LIMIT SWITCH
LASER BEAM QUICK APPROACH
VIBRATION REDUCTION ROLLERS
FLEXIBLE CONTROL PANEL LOCATION

32″ x 28″ Amada Horizontal Pulse Cutting Band Saw Model PCSAW720 Optional Accessories:
ROLLER TABLE 6′
ROLLER TABLE 10′
VERTICAL CLAMPS
RETURN CONVEYOR
VISE PRESSURE CONTROL
EXTERNAL GOOSE NECK CHIP CONVEYOR
NON-POWERED ROLLER TABLE
HYDRAULIC POWERED ROLLER TABLE
EXTENDED WARRANTY: Regular 1 year + Additional 1 year = Total 2 years

About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.

Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
All product information including but not limited to price, specifications, color, photos, equipped with and features are subject to change.

Round (diameter): 11.4″-28.3″
Rectangle (W x H): 32″ x 28″
Work Load Capacity: 17,640 lbs
Blade Size (L x T x W): 27’3″ x 0.063″ x 2-5/8″
Blade Speed: 49-361 ft./min by Inverter
Top Limit Setting: Automatic Setting with Photo Sensor
Cutting Control: Windows Based CNC Control, Hydraulic Flow Control Valve with Stepping Motor
Type: Front and Rear Vise
Control: Windows Based CNC Control, Hydraulic Flow Control Valve with Stepping Motor
Saw Blade: 15 HP
Hydraulic Pump: 5 HP
Cutting Feed AC Servo: 1/8 HP
Wire Brush: 1/2 HP
Cutting Fluid Pump: 1/4 HP
Power Supply Voltage: AC220V±10%, 3 PH, 60 Hz All Other Voltages Require Transformer
Power Requirement: 25 kVA
Tank Capacity: 52.8 gal
Pump Type: Centrifugal Electric
Pump Capacity: 5.3 gal/min
Tank Capacity: 8 gal
Pump Type: Variable Displacement Vane Pump
Pressure Setting: 814 psi
Chip Disposal: Chip Conveyor
Index Mechanism: Shuttle Vise
Stroke: 19.685″
Length: 0.787″-393.70″
Number of Input Block/Station: 1-99
Number of Cut-Off Pieces: 1-9999
Remnant Length: 1.57″ Plus Length of Parts
Head-Up Position: 172.7″ x 85.9″ x 108.9″
Head Down Position: 172.7″ x 85.9″ x 108.9″
Table Height: 27.6″
Machine Weight: 17,640 lbs
