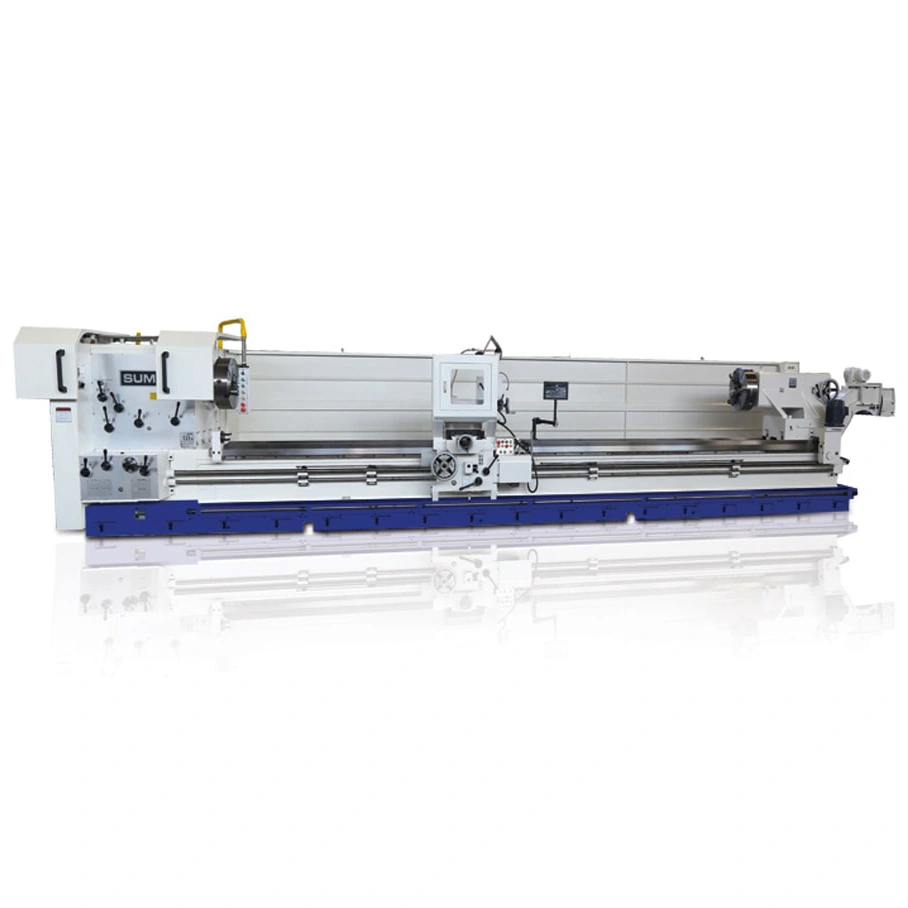

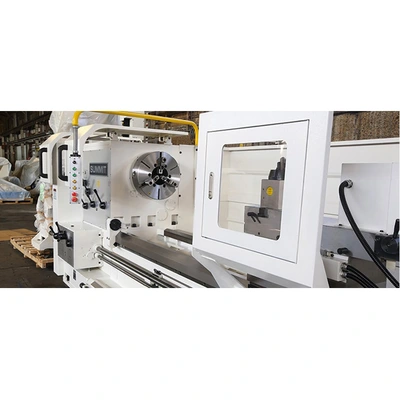

Summit® Big Swing Hollow Spindle Lathes (47″, 55″ & 63″) have set a new standard among machining tools in this size range with their unprecedented depth and combination of “standard” features. These lathes are designed to provide the precision and rugged reliability required for today’s demanding applications. The Big Swing Hollow Spindle lathes are available in center distances from 80″ to 600″ with spindle bores from 9″ to 21″ to cover a wide range of work pieces and feature castings that are heavily ribbed for rigidity and vibration dampening. The headstock is designed with straight cut final drive gears to provide quiet and efficient operation through the full range of spindle speeds. The extra wide (31.5″) bed ways are hardened and precision ground to provide high accuracy and long life and the bed is constructed from high-grade alloyed cast iron, normalized and aged to achieve maximum stability. An additional third way is provided on the front of the bed to provide additional support to the carriage to prevent deflection even in the heaviest cuts.
Quick change gear box will cut inch and metric threads
Hardened & precision ground bed ways
4-Way rapid traverse
Two speed tailstock
Quick change tool post with holders
Electronic digital readouts
Wide range of workholding devices
Optional removable gap available upon request
Thread dial
Steady rest
Follow rest
Full length splash guard (up to 240″)
Chuck guards
Taper attachment
Halogen work light
Coolant system
Swing over bed: 55″ / 1400mm
Swing over cross slide: 40.5″ / 1030mm
Between centers: 22,000 lbs. /10,000 kg
Spindle bore: 12.2″ / 310mm. or 14.2″ / 360mm
Spindle nose: A2-20
Spindle speeds range: 5 – 300
Cross slide travel: 30.7″ / 780mm
Compound travel: 13.7″ / 350mm
Longitudinal feeds (no.) range: (48) 0.13 – 1.92
Cross feeds (no.) range: (48) 0.065 – 0.96
Threads per inch (no.) range: (48) 1-15 TPI
Metric threads (no.) range: (48) 2 – 30mm/pitch
Quill diameter: 7.9″ / 200mm (Standard) or 11.4″ / 290mm for Rotary Quill (Optional)
Quill travel: 11.8″ / 300mm
Tailstock center: #7 MT
Width of bed: 31.5″ / 800mm
Main drive motor: 30 HP (40 HP & 50 HP optional)
Shipping dimensions (LxWxH): 440″ x 87″ x 91″
Shipping weight: 53,620 lbs.
