6” round, 12.6” square, 15” x 12” rectangular cutting capacity, 5 HP (126NCD)
5” round, 16.5” square, 16.5” x 16.5” rectangular cutting capacity, 7.5 HP (170NCD)

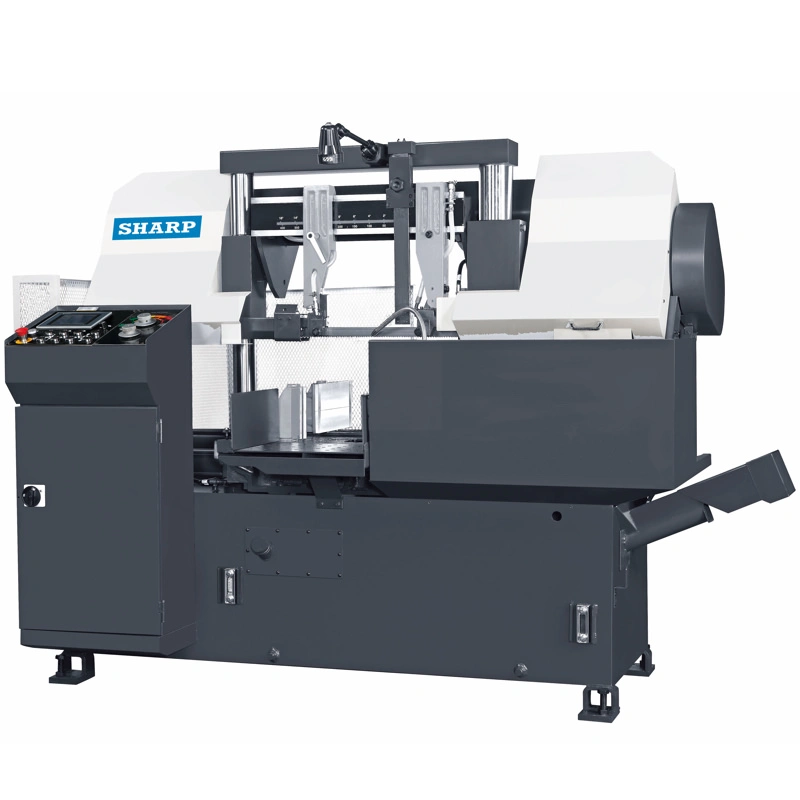

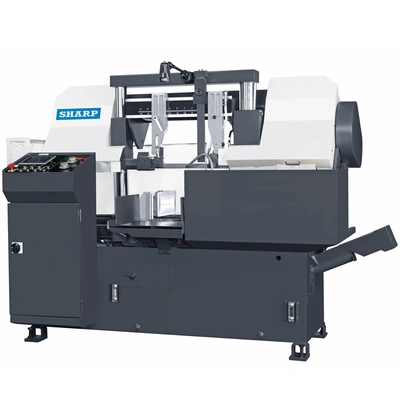

5” round, 31.5” square, 31.5” x 34.2” rectangular cutting capacity, 10 HP (310NCD)
NC operating panel with touch screen
Double column hydraulic saw frame with heavy duty ball joint for powerful down feed
Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life.
Automatic hydraulic blade tensioning provide proper tensioning during and after machining
Multiple coolant applied during exit and entry of blade through blade guides, during cutting, and blade cleaning with brush
Gearbox blade drive for heavy duty cutting
Easy blade change with front access at wait level
Blade “clip” device ot ease blade change
Additional flushing hose for cleaning
Discharge table with adjustable material stop
Bi-Metal saw blade
Coolant system
Tools leveling pads and additional wire brush
Hydraulic chip conveyor
Vise pressure regulator
3M powered roller table
Double retracting vise jaws
Hydraulic tool clamp for bundle cut
Laser beam light
Round: 31.5″
Square: 31.5″ x 31.5″
Rectangle: 31.5″ x 34.2″
Speed: 49-293 fpm (15-80 m/min)
Size: 326.8″ x 2.6″ x 0.06″
Tension: Hydraulic (automatic blade breakage detector)
Guide: Tungsten carbide blade guide
Cleaning: Powered wire brush
Saw Blade: 10 HP
Hydraulic: 3 HP
Coolant: 1/4 HP
Hydraulic Oil: 26.6 gal
Coolant: 32 gal
Mode: Hydraulic, Automatic, NC controller
Length: Single Stroke: 16.5″
Vise Control: 2 full stroke hydraulic cylinder vises (one set being shuffle vises)
Minimum clamped width: 10.6″
Height of Work Bed: 25.2″
Gross Weight: 19,360 lbs
Floor Space (L x W x H): 153″ x 92″ x 116″
