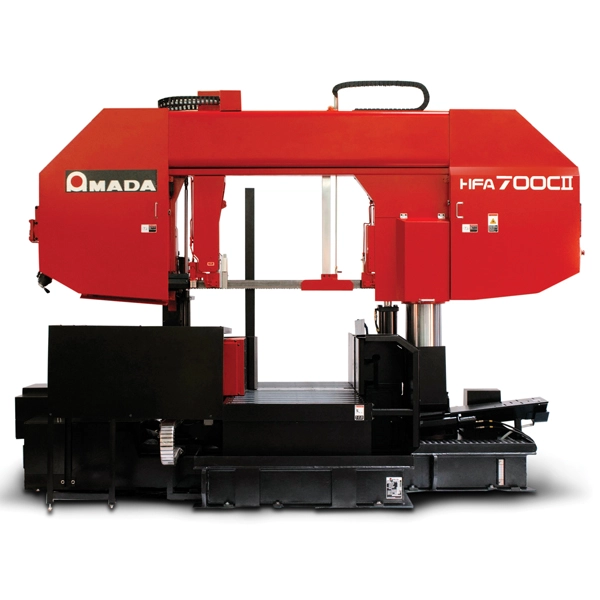

32″ x 28″ New Amada Horizontal Post Style Band Saw Model HFA700CII Specifications:
32″ x 28″ New Amada Horizontal Post Style Band Saw Model HFA700CII Features:
BLADE DEVIATION MONITOR: The NC controller constantly monitors the cutting and blade conditions, including the twist of the saw blade. If these exceed the preset parameters in the automatic blade run-out detector the machine will cease cutting and indicate the reason for stopping.
USER-FRIENDLY OPERATOR CONSOLE: By simplifying required input data, the cutting rate controller (CNC Light) makes achieving maximum cutting rates, accuracies, and longer blade life a constant.
AUTOMATICALLY POSITIONED GUIDE ARM
BLADE DEVIATION MONITOR
BLADE SPEED CONTROLLED BY INVERTER
POWERED CHIP CONVEYOR
CNC CONTROLLED DOWN FEED
DRIVE BY NO TORQUE LOSS HELICAL BEVEL GEAR
FULL STROKE VISES
HYDRAULIC BLADE TENSIONING
MOTION DETECTOR
PIECE COUNTER
PROGRAMMABLE OPERATION BY MICRO-PROCESSOR
VIBRATION DAMPING ROLLERS
WHEEL COVER LIMIT SWITCH
WORK LIGHT
32″ x 28″ New Amada Horizontal Post Style Band Saw Model HFA700CII Optional Accessories:
POWER ROLLER TABLE 6.5′
FREE POWER ROLLER TABLE 6.5′
POWER ROLLER TABLE 10′
FREE ROLLER TABLE 10′
VICE PRESSURE CONTROL VALVE
SUB CONTROL BOX 23′
SUB CONTROL BOX 65.5′
VERTICAL CLAMP, MUST BE FACTORY ORDERED
32″ x 28″ New Amada Horizontal Post Style Band Saw Model HFA700CII NC Functions:
HOUR METER
BLADE LIFE/HISTORY
NUMBER OF PIECES REQUIRED/CUT
99 CUT-OFF LENGTHS FROM THE SAME BAR
BLADE RUNOUT MONITOR
AUTOMATIC KERF COMPENSATION
Round (diameter): 11.4″-28″
Rectangle (W x H): 32″ x 28″
Work Load Capacity: 17,637 lbs
Blade Size (L x T x W): 27’3″ x 0.063″ x 2-5/8″
Blade Speed: 49-394 ft./min by Inverter
Tension Control: Hydraulic
Top Limit Setting: Automatic Setting with Quick Approach Feeler
Cutting Control: CNC-Lite, Hydraulic Flow Control Valve with Stepping Motor
Type: Front and Rear Vise
Control: Hydraulic Full-Stroke Cylinder
Saw Blade: 15 HP
Hydraulic Pump: 5 HP
Power Supply Voltage: AC220V±10%, 3 PH, 60 Hz All Other Voltages Require Transformer
Power Requirement: 26 kVA
Tank Capacity: 26.4 gal
Pump Type: Electric
Pump Capacity: 30.4 gal/min
Tank Capacity: 30.4 gal
Pressure Setting: 784 psi
Chip Disposal: Chip Conveyor
Index Mechanism: Shuttle Type
Stroke: 19.6″
Length: 0.39″-999.999″
Number of Input Block/Station: 1-99
Number of Cut-Off Pieces: 1-9999
Remnant Length: 1.38″ Plus Length of Parts

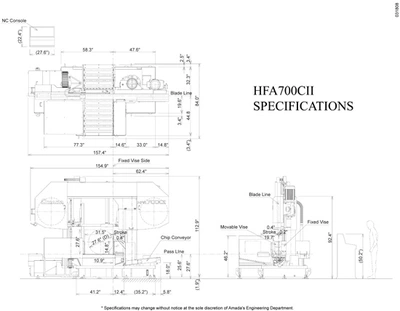

Head-Up Position: 157.4″ x 84″ x 112.9″
Head Down Position: 157.4″ x 84″ x 112.9″
Table Height: 27.6″
Machine Weight: 15,435 lbs
