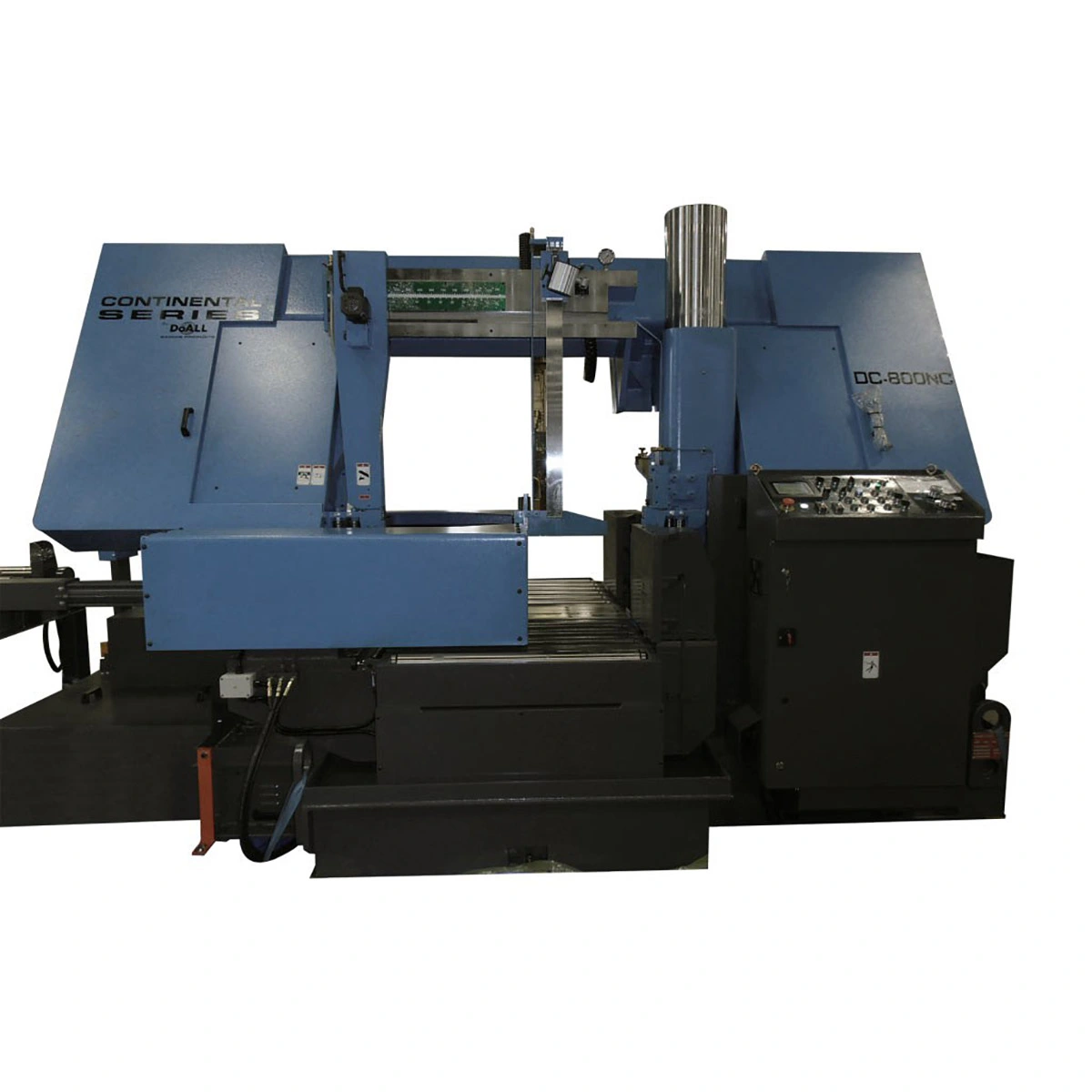

31.5″ x 39.5″ New DoAll Horizontal Band Saw Model DC-800NC Specifications:
31.5″ x 39.5″ New DoAll Horizontal Band Saw Model DC-800NC Features:
Touch Screen Control: Easy operator input. 20 Job storage with batching capabilities. Control is multi-lingual for today’s workforce. Will display error message when incorrect entry is made. Easy switching between imperial or metric units.
High Efficiency Transmission: High efficiency planetary gear box built to decrease wear and transmit full torque to the saw blade.
Hydraulic Chip Conveyor: Adjustable speed auger style conveyor allows for coolant drain from chips before extraction.
Coolant Thru Carbide Faced Saw Guide Inserts: Supplies coolant to the blade evenly before and after the cut creating straighter cuts and allowing longer blade life due to coolant being supplied at the tooth tip.
Efficiently Designed Hydraulic System: Engineered low pressure system allows for smoother and quieter operation which aids in longer component life and easy accessibility for maintenance.
Band Wheels: 28 Degree lay back head design minimizes band twist which causes band fatigue and also allows a smaller foot print. Flange cast steel wheels insure band tracking to prevent tooth set lost.
Underslung Indexer System: Reduces friction when indexing heavier or rough surface material by the use of rollers allowing for smoother material movements.
Movable Saw Guide Arm: An electrical driven moveable guide arm with a hydraulic lock system aids the operator in the placement of the arm close to the cut minimizes blade deflection.
Hydraulic Blade Tension: Hydraulically driven lever the design eliminates possible error of over/under tightening the band for maximum cutting rates and band life.
Back-up Bearing/Inserts: Supports the back of the saw band allowing the creation of band preload which aids in reducing vibration while cutting and increasing blade life.
Retractable Shuttle Type Index Vise: Both jaws retract when vise is opened to accommodate the movement of crooked stock increasing accuracy and repeatability.
Magnetic Scale for Indexer: The scale which creates indexing accuracy is protected from dirt and oil build up insuring its long life.
Nesting Fixtures: Plug-n-play vertical hold-down clamp assemblies allow operator to perform multiple piece cutting to increase productivity.
Warranty: One year parts and service subject to terms and conditions. Optional ten year warranty is available.
31.5″ x 39.5″ New DoAll Horizontal Band Saw Model DC-800NC Standard Equipment:
Programmable Logic Controller for all machine functions
Feed rate/feed force saw head control
Infinite band speed controlled variable frequency drive
Hydraulic retractable shuttle vise material indexer on chrome rails
Rapid and creep speed index vise control
Full stroke vices with moveable outboard front vise
Variable vise pressure control
Vertical hydraulic cylinders with hold down fixtures
Hydraulic set, zero clearance, coolant through, carbide faced saw guide inserts with lead in rollers
Adjustable power driven band cleaning brushes with coolant flush line attached
Halogen work light
Electric motor driven movable saw guide arm
Blade shock proof device
Flushing hose for machine wash down and auxiliary coolant nozzles
Hydraulic band tension
Hydraulic adjustable speed auger design chip conveyor
One shot column lubricator
Saw band break/stall motion detector shut off switch
Band door interlocks
Operation and parts manuals on USB stick
One 6.5 foot (2 meter) idler input conveyor
Maintenance tool kit
Complimentary DoALL Cutting Fluids package
One (1) complimentary DoALL bi-metal saw blade
31.5″ x 39.5″ New DoAll Horizontal Band Saw Model DC-800NC Optional Accessories:
Capacity at 90° rectangle: 31.5″ x 7.5-39.5″
Capacity at 90° round: 7.5″ – 31.5″
Saw blade (width x length): 2 5/8″ x 347″
Motor HP: 15 Hp
Band speed: 52-275 fpm
Band tension: Hydraulic
Motor HP: 3 Hp
Reservoir size: 34 gallon
Flood: Yes
Mist lubricator: No
Motor HP: 1/4 Hp
Reservoir size: 63 gallon
Length per stroke: 15.75″
Maximum index strokes length: 236″
Remnant length: 9″ (non bundle)
W x L x H: 172″ x 94″ x 108″
Material pass height: 36″
Machine weight: 25,350 lbs
Voltage requirement (Wye configuration): 230V-60Hz-3ph
Total amp draw (FLA): 61 amps
