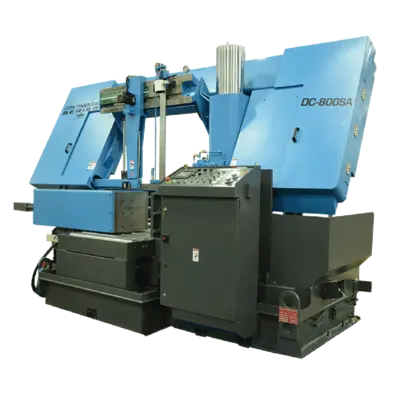

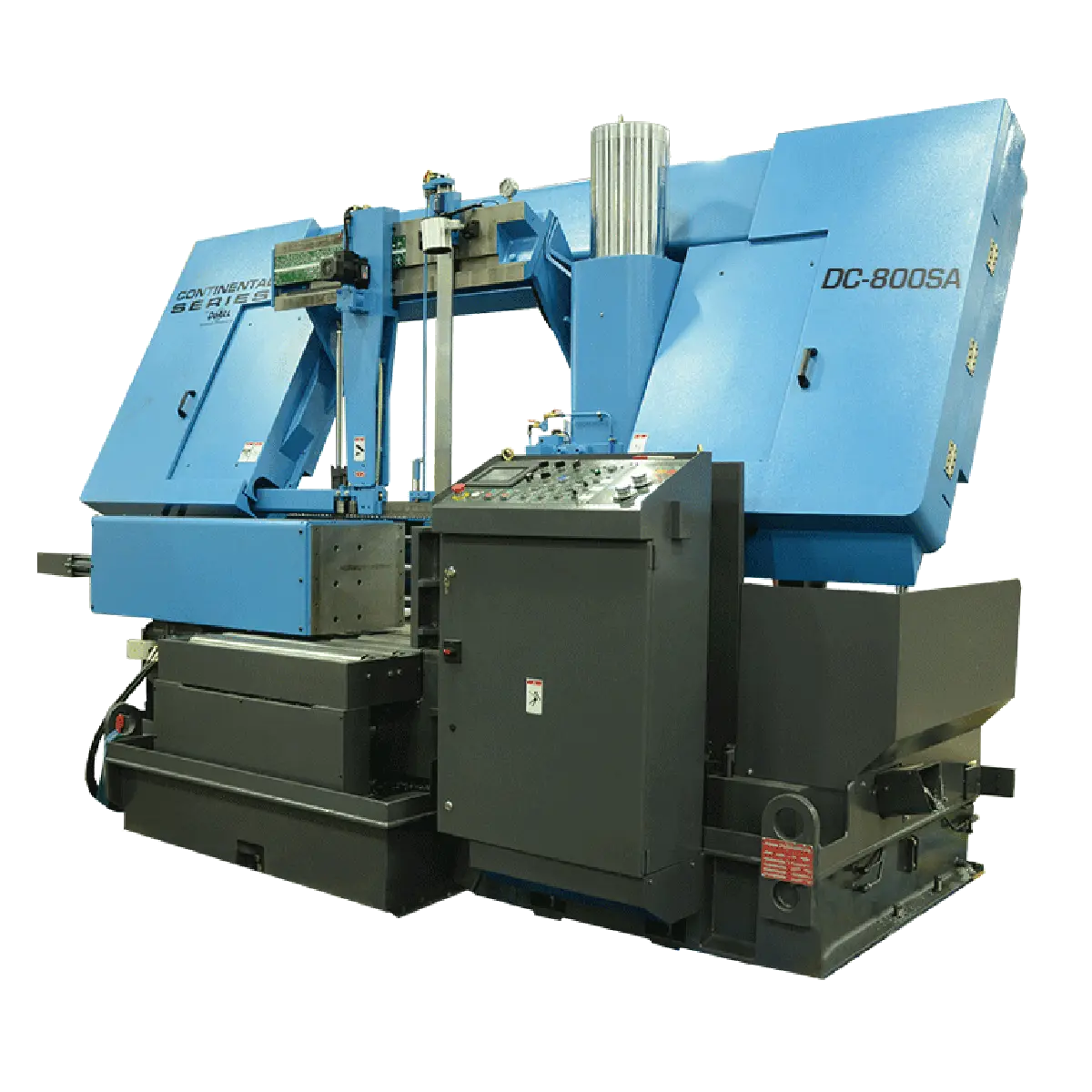

New DoALL Semi-Automatic Band Saw Model DC-800SA is a high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL semi-automatic saws is the perfect choice. Once you have set your desired feed rate, blade speed and initial vise opening, a cut is complete, the band shuts off and the head returns to the upright open position and locks. Then the operator must manually reposition the material for another cut.
31.5″ x 39.5″ New DoAll Horizontal Band Saw Model DC-800SA Specifications:
31.5″ x 39.5″ New DoAll Horizontal Band Saw Model DC-800SA Features:
Push Button Control Panel: Ergonomically placed, user friendly push button control panel.
High Efficiency Transmission: High efficiency planetary gear box built to decrease wear and transmit full torque to the saw blade.
Hydraulic Chip Conveyor: Adjustable speed auger style conveyor allows for coolant drain from chips before extraction.
Coolant Thru Carbide Faced Saw Guide Inserts: Supplies coolant to the blade evenly before and after the cut creating straighter cuts and allowing longer blade life due to coolant being supplied at the tooth tip.
Efficiently Designed Hydraulic System: Engineered low pressure system allows for smoother and quieter operation which aids in longer component life and easy accessibility for maintenance.
Band Wheels: 28 Degree lay back head design minimizes band twist which causes band fatigue and also allows a smaller foot print. Flange cast steel wheels insure band tracking to prevent tooth set lost.
Material Positioner: Hydraulic shuttle roller table assists operator in positioning material which decreases set up time.
Moveable Saw Guide Arm: Electrical driven moveable guide arm with hydraulic lock system aids operator in placement of the arm close to the cut minimize blade deflection.
Hydraulic Blade Tension: Hydraulically driven lever type design eliminates possible error of over/under tightening the band for maximum cutting rates and band life.
Back-up Bearing/Inserts: Supports the back of the saw band allowing the creation of band preload which aids in reducing vibration while cutting and increasing blade life.
Warranty: One year parts and service subject to terms and conditions. Optional ten year warranty is available.
31.5″ x 39.5″ New DoAll Horizontal Band Saw Model DC-800SA Standard Equipment:
Programmable Logic Controller for all machine functions
Feed rate/feed force saw head control
Infinite band speed controlled variable frequency drive
Hydraulic retractable shuttle roller table for material positioning with rapid and creep speed control
Full stroke vises with outboard front vise
Variable vise pressure control
Hydraulic set, zero clearance, coolant through, carbide faced saw guide inserts with lead in rollers
Adjustable power driven band cleaning brushes with coolant flush line attached
Halogen work light
Electric motor driven movable saw guide arm
Blade shock proof device
Flushing hose for machine wash down and auxiliary coolant nozzles
Hydraulic band tension
Hydraulic adjustable speed auger design chip conveyor
One shot column lubricator
Saw band break/stall motion detector shut off switch
Band door interlocks
Operation and parts manuals on USB stick
One 6.5 foot (2 meter) idler input conveyor
Maintenance tool kit
Complimentary DoALL Cutting Fluids package
One (1) complimentary DoALL bi-metal saw blade
31.5″ x 39.5″ New DoAll Horizontal Band Saw Model DC-800SA Optional Accessories:
Capacity at 90° rectangle: 31.5″ x 7.5-39.5″
Capacity at 90° round: 7.5″ – 31.5″
Saw blade (width x length): 2 5/8″ x 347″
Motor HP: 15 Hp
Band speed: 52-275 fpm
Band tension: Hydraulic
Motor HP: 3 Hp
Reservoir size: 22.5 gallon
Flood: Yes
Mist lubricator: No
Motor HP: 1/4 Hp
Reservoir size: 58 gallon
Length per stroke: N/A
Maximum index strokes length: N/A
Remnant length: N/A
W x L x H: 172″ x 85″ x 105″
Material pass height: 28.5″
Machine weight: 24,251 lbs
Voltage requirement (Wye configuration): 230V-60Hz-3ph
Total amp draw (FLA): 61 amps
