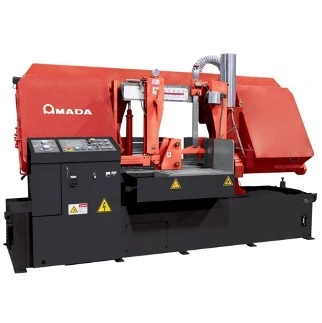

22.4″ x 22″ New Amada Horizontal Post Style Band Saw Model HFA560P (PA22MPC) Specifications:
22.4″ x 22″ New Amada Horizontal Post Style Band Saw Model HFA560P (PA22MPC) Features:
SPEED RANGE: Infinitely variable through a frequency inverter drive and heavy-duty worm gear transmission. The broad speed range allows for optimum cutting of a large spectrum of materials. A read out at the operator’s touch screen assures accurate speed setting
BLADE GUIDE: The hydraulic clamping and combination roller bearing and carbide blade guides reduce heat and blade stress providing longer blade life and accuracies of +- 0.002 per inch of cut material. Large anti-vibration rollers help to increase blade life.
HYDRAULIC SHUTTLE FEED: Multi length shuttle indexing up to 999″. The shuttle comes to positive stops at both ends of the index, assuring cutoff length accuracy. Repeatability is +- 0.005″ per index. The shuttle vise jaw floats hydraulically to accommodate crooked stock assuring straight, accurate cuts.
HYDRAULIC DOWN FEED: Feed rate and down pressure can be controlled independently for fast, accurate cutting. Setup is made easy through the color-coded dial allowing the operator to select the optimum setting for the type of material being cut.
MPC PROGRAMMABLE CONTROL: Conveniently located on the operator’s control panel, this touch screen control allows the operator to program and store up to 100 jobs. Inputs include Part Length from 0 to 999″ (in inches up to 3 decimal places) and Number of Pieces to be cut.
FULL STROKING HYDRAULIC VISE JAWS: The front vise jaws are split to reduce the remnant. The split vise jaws also help to reduce burrs left on the material and are ideal for bundle cutting, and holding the workpiece.
AUTOMATIC CHIP REMOVAL: The chip auger rotating in the coolant return removes chips quickly and efficiently, freeing the operator to perform more productive operations.
VARIABLE VISE PRESSURE: Hydraulic clamping pressure to the work holding jaws can be adjusted as required to hold solid or thin wall material, allowing the piece to be held securely and without distortion.
SPLIT FRONT VISE
HMI TOUCH SCREEN CONTROL
AUTOMATIC CHIP REMOVAL
BI-DIRECTIONAL SHUTTLE VISE
FULL STROKING HYDRAULIC VISES
ROBUST RIGID DUAL COLUMN DESIGN
FULLY ADJUSTABLE HYDRAULIC DOWN FEED
AUTOMATIC HEIGHT SELECTION WITH FAST APPROACH
22.4″ x 22″ New Amada Horizontal Post Style Band Saw Model HFA560P (PA22MPC) Optional Accessories:
ROLLER CONVEYORS
OUT OF SQUARE DETECTOR
AUTOMATIC MIST LUBE
HYDRAULIC HOLD DOWNS
22.4″ x 22″ New Amada Horizontal Post Style Band Saw Model HFA560P (PA22MPC) Safety Features:
COVERED CHIP AUGER
COVER INTERLOCKS
STALLED OR BROKEN BLADE SENSOR
LOCKOUT TAGOUT CAPABLE
TWO HANDED FRONT VISE CLAMP OPERATION
SAFETY RAILING AROUND SHUTTLE
Round (diameter): 22″ (Minimum 4.3″)
Rectangle (W x H): 22.4″ x 22″
Work Load Capacity: 7,250 lbs
Blade Size (L x T x W): 21’8″ x 0.063″ x 2″
Blade Speed: 78-310 ft./min by Inverter
Tension Control: Hydraulic
Top Limit Setting: Automatic Setting with Fast Approach Feeler
Cutting Control: Hydraulic Pressure & Flow Control Valve
Type: Front and Rear Vises
Control: Hydraulic Full Stroke Cylinder
Saw Blade: 10 HP
Cutting Fluid Pump: 0.25 HP
Hydraulic Pump: 3 HP
Power Supply Voltage: AC230V±10%, 3 PH, 60 Hz , Required at factory voltage setting
Cutting Fluid Pump: @@ kVA
Hydraulic: 427 psi
Coolant: 37 gal
Hydraulic Fluid: 30 gal
Index Mechanism: Shuttle Vise
Stroke: 16″
Length: 0.39″-999″
Number of Input Block: 1-100
Number of Input Station: 1-20
Number of Cut-Off Pieces: 1-999
Remnant Length: 6.5″ Plus Length of Parts
Chip Disposal: Chip Conveyor
Head-Up Position: 137.2″ x 85.8″ x 91″
Head Down Position: 137.2″ x 85.8″ x 91″
Table Height: 31.5″
Machine Weight: 9,920 lbs
