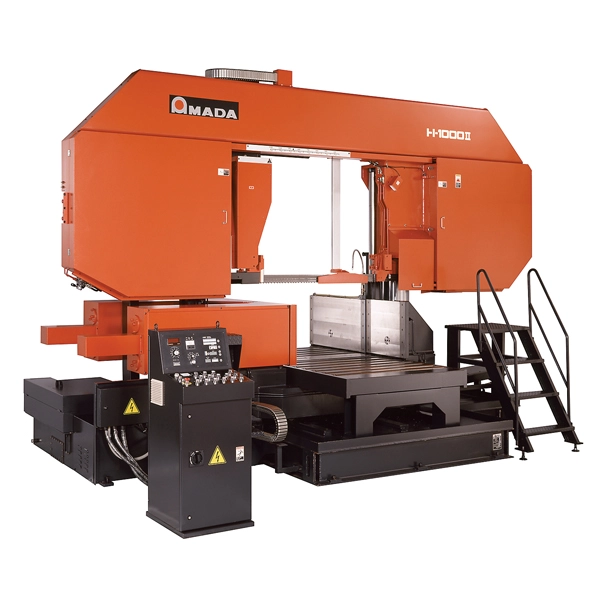

NEW AMADA H1000II

44″ x 40″ New Amada Horizontal Billet Band Saw Model H1000II Specifications:

44″ x 40″ New Amada Horizontal Billet Band Saw Model H1000II Features:
HYDRAULIC VISE • Prevents material movement while sawing • Easy set-up • Positive clamping on the full range of capacity
DUAL CUT CONTROL SYSTEM • Combines with fine feed roller for accurate material indexing • Quick and easy set-up • Blade feed controlled by both pressure and flow • Maximum blade life in all cutting applications • Easy set-up with reference cutting rate system
SEMI-AUTOMATIC INDEXING • Quick and easy indexing with fine feed roller
CHIP CONVEYOR
MOTION DETECTOR
LIGHT BEAM MARKING UNIT
VARIABLE BLADE SPEED DRIVE
BLADE DEVIATION MONITOR
CUTTING DEPTH CONTROL
CNC LITE CUTTING CONTROL
OUTBOARD VISE
VIBRATION PREVENT ROLLER
QUICK APPROACH
SUB CONTROL BOX

44″ x 40″ New Amada Horizontal Billet Band Saw Model H1000II Optional Features:
FREE ROLLER TABLE 6′
POWER ROLLER TABLE 6′

Round (diameter): 15.7″-40″
Rectangle (W x H): 15.7″ x 15.7″ – 44″ x 40″
Work Load Capacity: 33,069 lbs
Blade Size (L x T x W): 36’5″ x 0.063″ x 3″
Blade Speed: 50-246 ft/min by Inverter
Tension Control: Hydraulic
Top Limit Setting: Automatic Setting with Quick Approach Feeler
Cutting Control: CNC-Light, Hydraulic Flow Control Valve with Stepping Motor
Type: Front and Rear Vises
Control: Hydraulic Full Stroke Cylinder
Saw Blade: 15 HP
Cutting Fluid Pump: 1/4 HP
Hydraulic Pump: 5 HP
Wire Brush: 1/8 HP
Power Supply Voltage: AC220V±10%, 3 PH, 60 Hz, All Other Voltages Require Transformer
Power Requirement: 20 kVA
Tank Capacity: 66.1 gal
Pump Type: Electric
Tank Capacity: 39.6 gal
Pressure Setting: 1110 psi
Chip Disposal: Chip Conveyor
Index Mechanism: Outboard Vise, Manual Operation
Stroke: 19.7″
Length: N/A
Number of Input Station: N/A
Number of Cut-Off Pieces: N/A
Remnant Length: N/A
Head-Up Position: 213.3″ x 130.7″ x 150.6″
Head Down Position: 213.3″ x 130.7″ x 121.1″
Table Height: 33.5″
Machine Weight: 30,800 lbs
