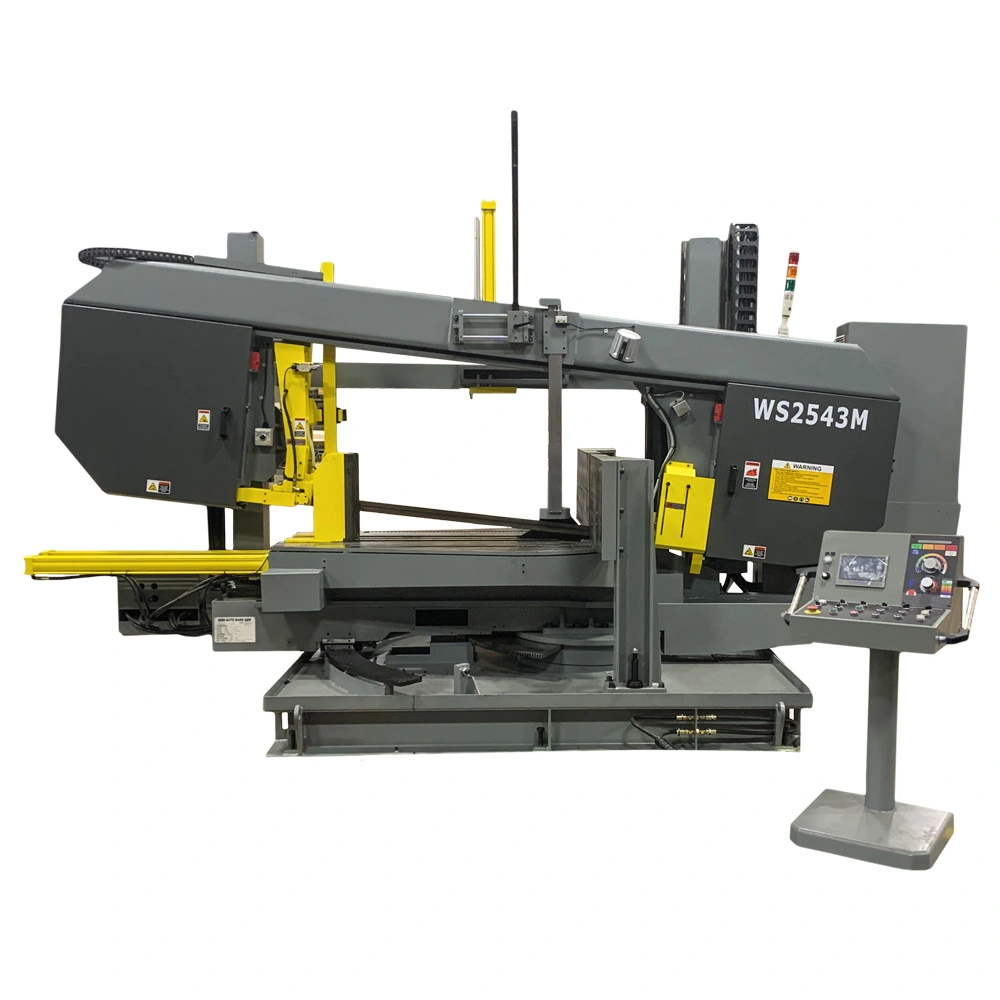

44” x 27” New Marvel Horizontal Mitering Band Saw Model WS2543M Specifications:
44” x 27” New Marvel Horizontal Mitering Band Saw Model WS2543M Features:
SAW FRAME: The saw frame is canted at a 6.5 degree angle for faster cutting of structural and other flat materials. The heavy duty saw frame rides up and down a linear way guide system.
MITER CUTTING: The WS2543M model has a saw base that swivels to 45 degrees one direction and 60 degrees the other, for miter cutting. A ½ hp (400 W.) motor turns the machine base and the degree of angle is read out on a LED DISPLAY.
SPEED RANGE: 98-361 FPM (30-110m/min.). Infinitely variable through a frequency inverter system and a heavy duty Worm Gear Transmission. The broad speed range allows for optimum cutting of a large spectrum of materials. An Electric Tachometer ensures accurate speed settings.
HYDRAULIC DOWN FEED: Feed rate and down pressure can be controlled for fast, accurate cutting. Setup is made easy through the color-coded dial allowing the operator to select the optimum setting for the type of material being cut.
BLADE GUIDES: A combination of roller bearing and hydraulically actuated carbide blade guides ensures the blade is held taut for fast, accurate cuts. The cast iron Movable Guide Arm is positioned through a Hydraulic Cylinder, then is Hydraulically Locked in position.
FAST APPROACH: Work height is manually set allowing the head to raise just enough to clear the work piece, reducing cycle time and allowing for faster cutting performance.
CHIP BRUSH: An Independent Motor drives the blade cleaning Chip Brush to ensure complete removal of chips from each gullet of the blade, providing optimum cutting performance and enhanced blade life.
VISE JAW: Full Stroking Vise Jaw and a Vertical Clamp Device ensure the work piece is secure and eliminates excessive vibration during the cut providing better blade life and cleaner cuts. Minimum Clamping Capacity is 7.5” (190mm) width.
CONTROLS: An Independent Electric Cabinet and Control Panel allow the operator to position the controls for optimum viewing of the cutting area. A PLC controls all electrical and hydraulic functions.
AMADA SST-WS BLADE: Amada SST Wide Set blade 28’6-1/2” long x 2” wide, 3/4 tooth pitch. This is the standard blade that is included with machine purchase.
AUTOMATIC CHIP CONVEYOR: A motorized conveyor for removal of chips from the machine into a disposal container.
HYDRAULIC HOLD DOWN: Added instead of the single point hold down, for use with bundled or nested material.
Round (diameter) at 90°: 28″
Round (diameter) at 45°: 28″
Round (diameter) at 60°: 25.6″
Rectangle (W x H) at 90°: 44″ x 27″
Rectangle (W x H) at 45°: 25.6″ x 27″
Rectangle (W x H) at 60°: 15.7″ x 25.6″
Work Load Capacity: 11,020 lbs
Blade Size (L x T x W): 28’6-1/2″ x 0.063″ x 2″
Blade Speed: 98-361 ft/min by Inverter
Tension Control: Hydraulic
Top Limit Setting: Automatic Setting with Fast Approach Feeler
Cutting Control: Hydraulic Pressure & Flow Control Valve
Type: Split Vises and Vertical Clamp Device
Control: Hydraulic Full-Stroke Cylinder
Saw Blade: 10 HP
Cutting Fluid Pump: 1/4 HP
Hydraulic Pump: 3 HP
Roll Motor: 1.5 HP
Table Rotation: 1/2 HP
Power Supply Voltage: AC230V±10%, 3 PH, 60 Hz, Voltage must be specified when ordering
Power Requirement: N/A
Tank Capacity: 47.5 gal
Tank Capacity: 19.8 gal
Pressure Setting: 1067 psi
Chip Disposal: Chip Conveyor
Index Mechanism: Shuttle Vise
Stroke: 59″
Length: 0″ – 393.6″
Machine Dimensions (W x L x H): 179″ x 89.4″ x 101″
Table Height: 32′ – 33′
Machine Weight: 11,880 lbs
