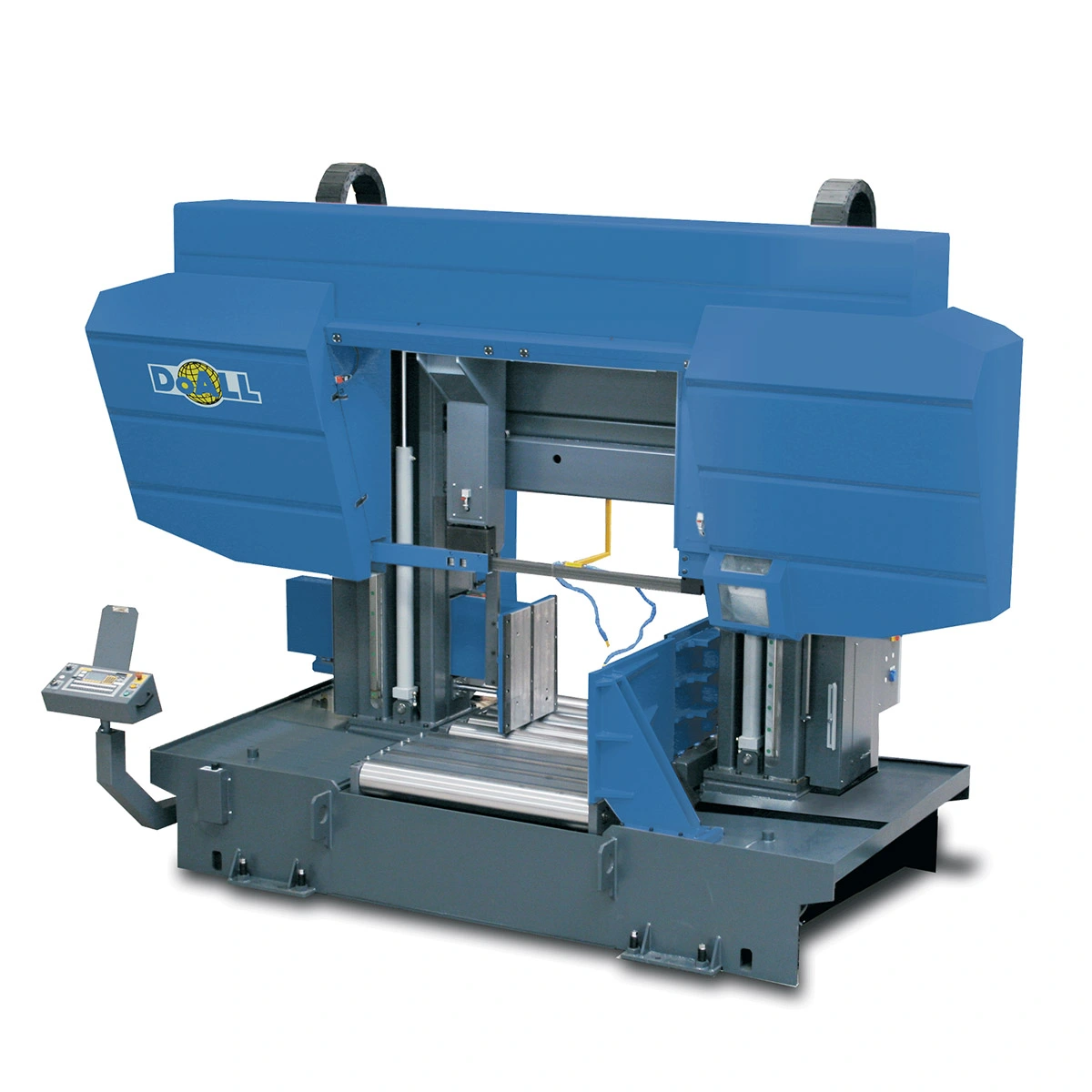

NEW DOALL DC-1400CNC

The DC-1400CNC high production, horizontal CNC band saws from DoALL are highly efficient, automatic, hydraulically controlled machines with multiple material feeds. Designed for vertical cuts, the DC-1400CNC is ideal for serial production in industrial settings.
Thanks to the robust construction of the DC-1400CNC, it is possible to cut a wide range of full and profile materials including stainless and tool steel. In addition, the “box” or enclosed design provides very safe operation. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
47 x 55″ New DoAll Horizontal CNC Band Saw Model DC-1400CNC Specifications:
47 x 55″ New DoAll Horizontal CNC Band Saw Model DC-1400CNC Standard Equipment:
Siemens saw control
Work light
Hydraulic band tension
Automatic guide arm setting
Automatic feed control with programmable feed rates
Variable vise pressure control – Set of 2
Power-driven, band brush
Chain chip conveyor with large pan
Automatic retraction of material in cycle for protection of carbide blades
Dual acting index vice jaws for crooked stock
Retractable stationary machine vice jaw
Set up tools
Complimentary DoALL cutting fluids package
One DoALL bi-metal saw blade
Instruction and parts manuals on CD or USB data stick
47 x 55″ New DoAll Horizontal CNC Band Saw Model DC-1400CNC Optional Accessories:
Factory Installed or Special Options

Laser line generator … $1535
Mist-style saw band lubrication … $1075
Hydraulic discharge/rear vise … $38630
Dynamic adjustment of feed rate to ensure cut square-ness … $4750
Hydraulic vertical front/upper vise … $3010
6.6 ft (2000mm) Power worm-driven extreme heavy-duty conveyor … $47825
6.6 ft (2000mm) Extra length of extreme heavy-duty, power driven conveyor … $41495
Laser line generator … $1535
Mist-style saw band lubrication … $1075
Hydraulic discharge/rear vise … $38630
Dynamic adjustment of feed rate to ensure cut square-ness … $4750
Hydraulic vertical front/upper vise … $3010
6.6 ft (2000mm) Power worm-driven extreme heavy-duty conveyor … $47825
6.6 ft (2000mm) Extra length of extreme heavy-duty, power driven conveyor … $41495
Machine Accessories

6.6 ft. (2000mm) Extreme heavy-duty conveyor with one (1) RBR vertical roller – 39.4″ (1000mm) cylinder width – 4704 lbs/ft (7000kg/m) capacity … $28130
Single fixed vertical guide roller – 31.5″ (800mm) cylinder height – Attaches to TDT for operation … $4545
Single adjustable vertical guide roller – Adjusts up to 39.4″ (1000mm) width – 31.5″ (800mm) height – Requires RBR for operation … $2955
Large chip pan with drain … $840
Wear parts service kit … $1315
Additional digital copy of manuals on CD or USB data stick … $75
Magnetic wand chip remover … $160
6.6 ft. (2000mm) Extreme heavy-duty conveyor with one (1) RBR vertical roller – 39.4″ (1000mm) cylinder width – 4704 lbs/ft (7000kg/m) capacity … $28130
Single fixed vertical guide roller – 31.5″ (800mm) cylinder height – Attaches to TDT for operation … $4545
Single adjustable vertical guide roller – Adjusts up to 39.4″ (1000mm) width – 31.5″ (800mm) height – Requires RBR for operation … $2955
Large chip pan with drain … $840
Wear parts service kit … $1315
Additional digital copy of manuals on CD or USB data stick … $75
Magnetic wand chip remover … $160
Saw Setup at End User Facility

Saw set-up coordination – does not include riggers, rigging or machine installation at facility … $8400
Saw set-up coordination – does not include riggers, rigging or machine installation at facility … $8400

Cutting capacity for tube: Round: 47″ (1200mm)
Rectangle: 47 x 55″ (1200x1400mm)
Cutting capacity for solid: Round: 47″ (1200mm)
Maximum nesting capacity: 47.24 x 31.5″ (1200x800mm)
Minimum nesting capacity: 20.5″ (520mm)
Band saw blade dimensions: 3-3/20 x 0.063″ (80×1.6 mm)
Length: 458″ (11650mm)
Band speed: 50-262fpm (15-80mpm)
Band drive motor: 15hp (11.1kw) – 25 degree sloped
Auto index single stroke min-max: 0.12-39.4″ (3-1000mm)
Auto index multiple stroke max: 394″ (9999mm)
Minimum butt end: 6.7″ (170mm)
Hydraulic pump: 5.4hp (4kw)
Coolant pump and capacity: 0.2hp (0.155kw)
61.8 gal (234 lit)
Auto index single stroke min-max: 0.4-39.4″ (10-1000mm)
Auto index multiple stroke max:: 394″ (9999mm)
Minimum butt end: 31.5″ (800mm)
Multiple feed: 393.7″ (9999mm)
Material pass line height: 18″ (460mm)
Machine weight: 55116 lbs. (25000kg)
Dimensions W x L X H: 205 x 93 x 113″ (5200x2700x2850mm)
Machine voltage: 460vac, 3-Phase, 60hz, Wye configuration required
