Overview
Type:
Horizontal Band Saws
Manufacturer:
AMADA
Model:
H-1300II
Stock #:
35861
Description

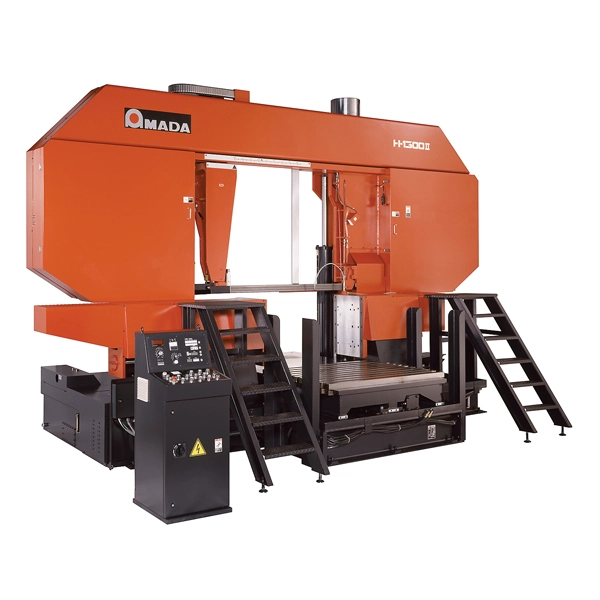

52″ x 52″ New Amada Horizontal Billet Band Saw Model H1300II Specifications:

52″ x 52″ New Amada Horizontal Billet Band Saw Model H1300II Standard Features:
HYDRAULIC VISE • Prevents material movement while sawing • Easy set-up • Positive clamping on the full range of capacity
DUAL CUT CONTROL SYSTEM • Combines with fine feed roller for accurate material indexing • Quick and easy set-up • Blade feed controlled by both pressure and flow • Maximum blade life in all cutting applications • Easy set-up with reference cutting rate system
SEMI-AUTOMATIC INDEXING • Quick and easy indexing with fine feed roller
CHIP CONVEYOR
MOTION DETECTOR
LIGHT BEAM MARKING UNIT
VARIABLE BLADE SPEED DRIVE
BLADE DEVIATION MONITOR
CUTTING DEPTH CONTROL
CNC LITE CUTTING CONTROL
OUTBOARD VISE
VIBRATION PREVENT ROLLER
QUICK APPROACH
SUB CONTROL BOX

Specifications

Round (diameter): 22.4″-52″
Rectangle (W x H): 23.6″ x 23.6″ – 52″ x 52″
Work Load Capacity: 37,478 lbs
Blade Size (L x T x W): 40’4″ x 0.063″ x 3″
Blade Speed: 50-230 ft/min by Inverter
Tension Control: Hydraulic
Top Limit Setting: Automatic Setting with Quick Approach Feeler
Cutting Control: CNC-Light, Hydraulic Flow Control Valve with Stepping Motor
Type: Main Vise
Control: Hydraulic Full Stroke Cylinder
Saw Blade: 20 HP
Cutting Fluid Pump: 1/2 HP
Hydraulic Pump: 5 HP
Power Supply Voltage: AC220V±10%, 3 PH, 60 Hz, All Other Voltages Require Transformer
Power Requirement: 28 kVA
Tank Capacity: 73.9 gal
Pump Type: Electric
Tank Capacity: 52.8 gal
Pressure Setting: 1080 psi
Chip Disposal: Chip Conveyor
Index Mechanism: Table Feed, Manual Operation
Stroke: 70.8″, by Hydraulic
Length: N/A
Number of Input Station: N/A
Number of Cut-Off Pieces: N/A
Remnant Length: N/A
Head-Up Position: 220.4″ x 171.6″ x 160.8″
Head Down Position: 220.4″ x 171.6″ x 136.9″
Table Height: 27.5″
Machine Weight: 40,790 lbs
