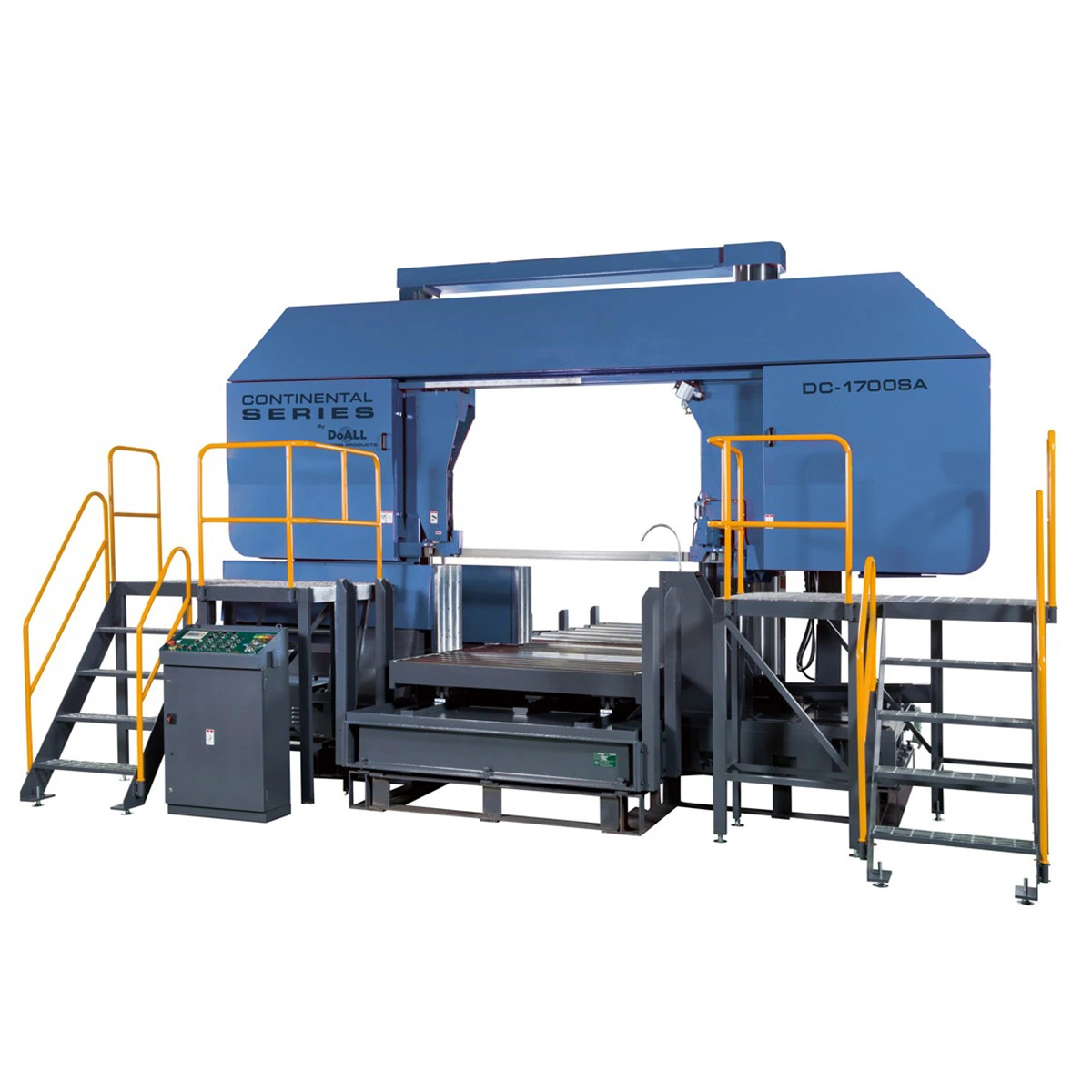

51-1/4″ x 67″ New DoAll Horizontal Band Saw DC-1700SA
Overview
Description
51-1/4″ x 67″ New DoAll Horizontal Band Saw DC-1700SA for sale at Worldwide Machine Tool
The DC-1700SA Dual Column, high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis.
While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL dual column, semi-automatic saws is the perfect choice.
51-1/4″ x 67″ New DoAll Horizontal Band Saw DC-1700SA Specifications:
51-1/4″ x 67″ New DoAll Horizontal Band Saw DC-1700SA Features, Functions and Benefits:
Helical-bevel gear reducer allows for: Higher transmission efficiency, higher stability, less noise
Movable bed: Material carrying platform with front/rear rollers for material movement
Cutting depth controller: The cutting motion will automatically stop when the pre-set depth is reached
Multiple chip conveyor: Two-section chip conveyor for raising the height of the chip outlet
Hydraulic blade tension: Automatically sets blade tension and reduces it when the machine stops, allows for higher cutting efficiency, and longer blade life.
51-1/4″ x 67″ New DoAll Horizontal Band Saw DC-1700SA Standard Equipment:
Programmable Logic Controller (PLC) control for all electric and hydraulic functions
Variable vise pressure
Blade deviation monitor
Hydraulic full stroke dual vise clamping system
Idle wheel motion detector with blade stalling and breakage shutoff
Carbide blade guide with roller bearing
Length setting: Manual setting (optional powered roller and hydraulic cylinder)
Hydraulic actuated carbide blade guides
Hydraulic fixed guide arm
Flushing hose for machine cleaning
Power driven blade-cleaning wire brush
Infinitely variable blade speed controlled by inverter
Work light
One 6.5 foot (2 meter) gravity conveyor
Tool kit
Complimentary DoALL Cutting Fluids package
One complimentary DoALL bi-metal saw blade
Operation and parts manuals on CD or USB data stick
51-1/4″ x 67″ New DoAll Horizontal Band Saw DC-1700SA Optional Accessories:
Specifications
Round: 51-1/4″
Rectangle: 51-1/4″ x 67″
Min Bundle Capacity: 27.3″ x 0.98″
Length x Width x Gage: 512″ x 3-3/20″ x 0.063″
Motor: 20 hp
Speed: 39-246 fpm
Wye configuration: 230/60Hz/three phase
Motor: 5hp
Capacity: 43.6 gal
Motor: 1/4hp
Capacity: 74 gal
Material pass line height: 26.75″
Machine weight: 46,297 lbs
Width x Length x Height: 110″ x 244″ x 150″
