Designed to provide the precision and rugged reliability required for today’s demanding applications, we are proud to offer the newly redesigned Summit® 70″, 80″, 100″ Series Big Swing Hollow Spindle Lathes. The Big Swing lathes are available in center distances from 80″ to 600″ with a 8″ spindle bore to cover a wide range of workpieces and feature castings that are heavily ribbed for rigidity and vibration dampening. The headstock is designed with straight cut final drive gears to provide quiet and efficient operation through the full range of spindle speeds. The extra wide (52.9″) bed ways are hardened and precision ground to provide high accuracy and long life and the bed is constructed from high-grade alloyed cast iron, normalized and aged to achieve maximum stability.

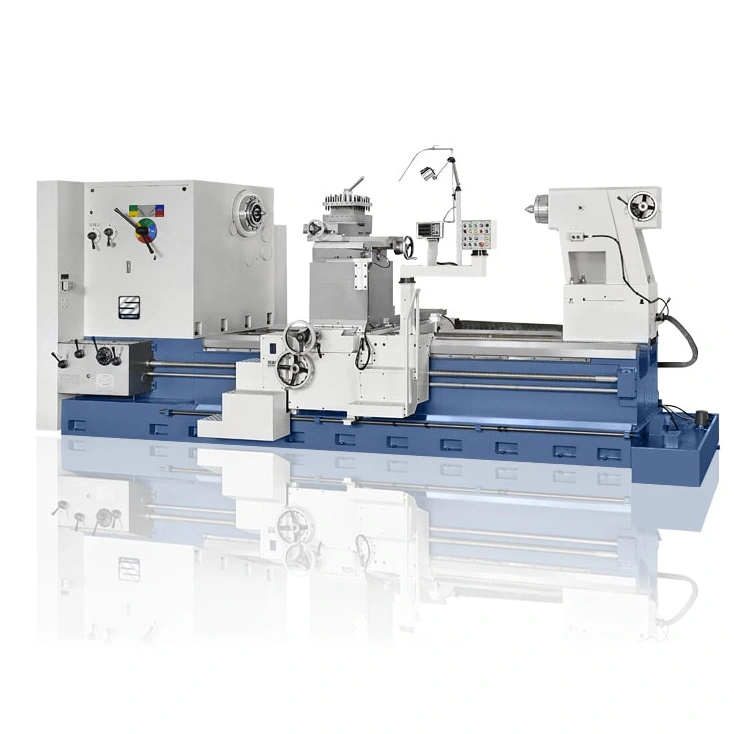

80″ x 360″ New Summit Lathe Model 80-360 Big Swing Hollow Spindle Specifications:
Quick change gear box will cut inch and metric threads
Hardened & precision ground bed ways
6-Way rapid traverse
Two speed tailstock
Easy access control station
Infinitely variable spindle
Steady rest
Follow rest
Thread dial
Chuck guards
Halogen work light
Coolant system
Swing over bed: 78.7″
Swing over cross slide: 61″
Distance between centers: 360″
Between centers: 55,000 lbs.
Spindle bore: 8″
Spindle nose: A2-15
Spindle speeds number: 4
Spindle speeds range: Infinitely variable
Cross slide travel (full length): 49.2″
Cross slide travel (half length): 20″
Compound travel (X1): 9.8″
Compound travel (Z1): 15.7″
Bed Width: 52.9″
Longitudinal feeds (no.) range: (48) .005 – .075 IPR
Cross feeds (no.) range: (48) .0025 – .0378 IPR
Threads per inch (no.) range: (48) 1 – 15 TPI
Metric threads (no.) range: (48) 2 – 30 mm/pitch
Lead screw: 2.4″
Quill diameter: 11.4″ Rotary Quill
Quill travel: 11.8″
Quill taper: MT #7
Main motor power: 60 HP (75 HP Optional)
Dimensions (LxWxH): 480″ x 96″ x 112″
Weight: 123,200 lbs.
