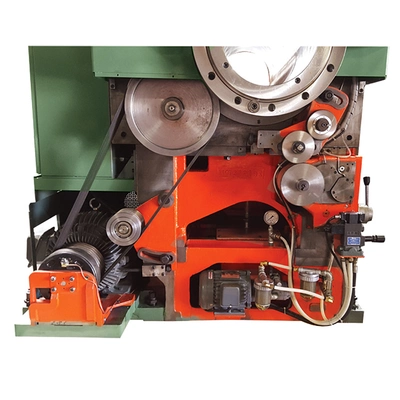

20 HP, 230V (only), 3 Phase, 60 Cycle Motor and Electrics Including Motor Drive Arrangement w/Mitsubishi Inverter & Hydraulic Brake
Spindle Bore: HG 14.8 (15.0” optional)
Spindle Nose: ASA-A2-20
Sliding Chuck Guard
Rear Chuck Adapter Installed
Set of Change Gears for Special Leads
Hardened and Ground Bedways
Tool Slide w/T-Slot
Thread Chasing Dial
4-Way Rapid Traverse
Hydraulic Brake System
Self-Spacing Supports for Lead Screw, Feed Rod & Control Rod
Coolant System with Pump and Piping
Tailstock Safety Locking Chock

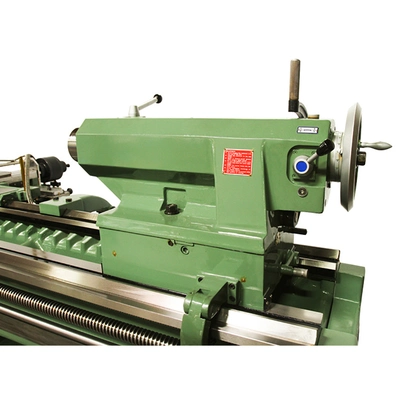

2-Speed Drive Tailstock Quill
Pull Drawer Chip (Coolant) Pan
UL Electrical Components & Cables
Tool Box w/Necessary Wrenches & Spanners
Instruction Manual and Parts List

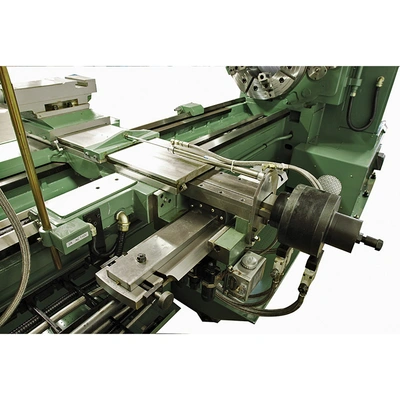

Semi-Automatic Air Threading Attachment w/ Special Taper (Factory Install Only) $11,900
11.9” Steady Rest With Roller Jaws (Min. Capacity 1.25”) $3,950
19.7” Steady Rest With Roller Jaws (Min. Capacity 11.1”) $4,800
23.5” Steady Rest With Roller Jaws (Min. Capacity 11.9”, 34” & 40” Swing Only) $6,700
7.9” Follow Rest (Min. Capacity 0.75”) $2,750
Roller Bracket (34”: 15.75-27.5”) $7,500
Spindle Bore Enlarged to 15.0″ (Factory Only) $4,500
Telescopic Taper Attachment (Hardened & Ground) $6,200
Drilling Attachment $2,900
Micrometer Carriage Stop $750
Turret Carriage Stop $750
Halogen Work Light $250
Add Limit Switch to Chuck Guard $150
Aloris DA Tool Post Only $1,350
Aloris DA Tool Post Plus 6 Holders (Set #5) $2,595
Aloris EA Tool Post Only $2,050
Aloris EA Tool Post Plus 6 Holders (Set #6) $4,050
Newall DP-700 2-Axis Digital Readout + Installation $7,800
Toolpost Guard. $1,250
Full Length Splash Guard Upon Request
Chip Conveyor Upon Request
Chucks Upon Request
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.
Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
Swing Over Bed: 34″
Swing Over Cross Slide: 25.1″
Distance Between Centers: 159″
Width of Bed: 22″
Height of Center from Leg Bottom: 48.6″
Spindle Bore: 14.8″
Taper of Spindle Bore & Center: 3/4” Taper per Foot
Type of Spindle Nose: ASA A2-20
Number of Spindle Speeds: 16
Spindle RPM: 5 – 300 RPM
Main Drive Motor: 20 HP (15kw) 6P
Coolant Pump Motor: 1/4 HP
Number of Feed Changes: 40 Kinds
Range of Feeds per Revolution: 0.0024”-0.0337″
Longitudinal Cross: 1/2 of Longitudinal Feed
Leadscrew Diam. & Threads per Inch: 1.875” / 2 TPI
Threading: inch/metric
Threading range Whitworth: 1 to 28 TPI (50)
Threading range Metric: 1 to 28mm pitch (41)
Threading range Module: 0.5 to 7 M (20)
Threading range D.P.: 4 to 56 D.P. (40)
Maximum Travel of Compound: 9.75”
Maximum Travel of Cross Slide: 21.25”
Tailstock Quill Travel: 11.75″
Tailstock Quill Diameter: 5.125″
Tailstock Center: M.T. #6
Floor Space: W: 86″ L: 245″
Machine Weight: 21,150
