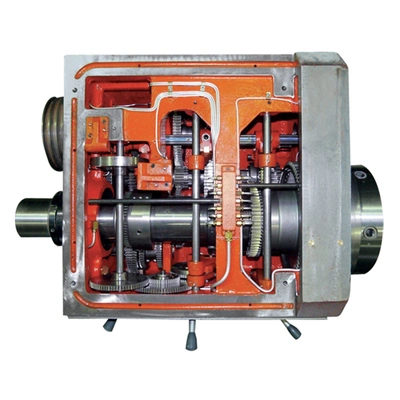

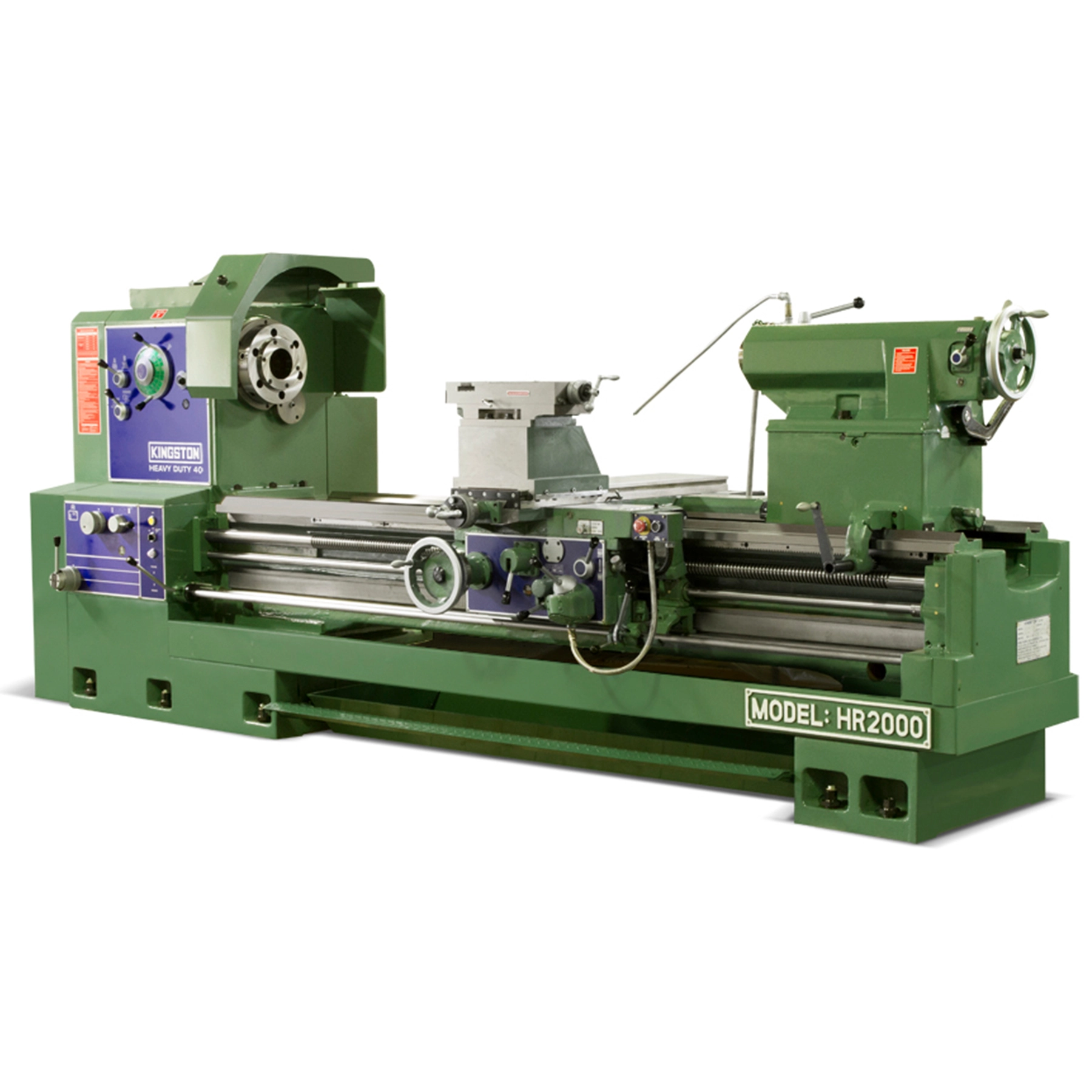

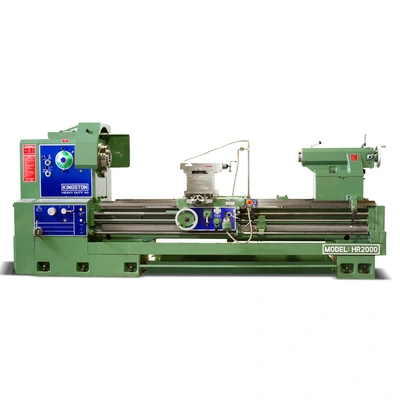

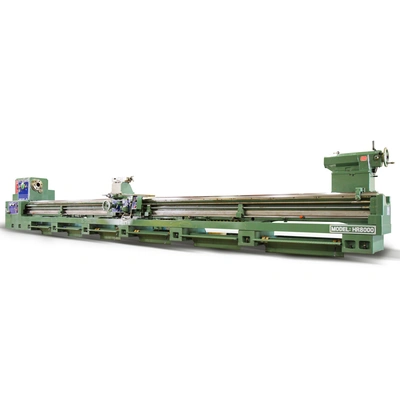

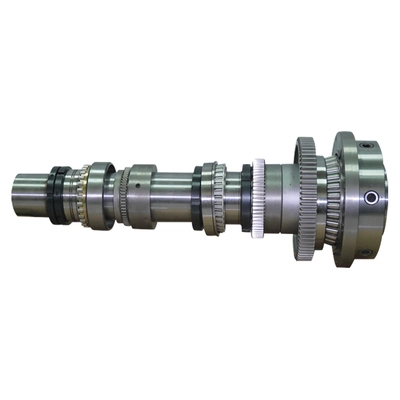

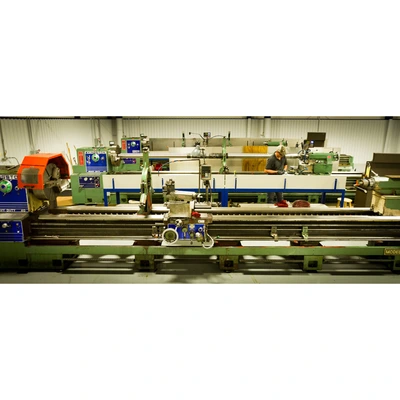

The 34″ x 200″ New Kingston Lathe is known as “The Workhorse” in machine shops across the country, Kingston’s heavy-duty HR model has been the industry leader in its class for nearly 40 years. At the heart of this machine is a strong and rigid headstock with a hardened and ground main spindle, which features a 4.06” bore and a 3-point bearing support system for superior cutting capability. Operators benefit from the increased control that comes with 16 spindle speeds (8 – 800 RPM) and a wider range of feeds and threading choices. The unique rib structure of the 22” bedway is made with high-quality casting to ensure greater stability and accuracy in heavy-duty applications. The HR is available in 30”, 34”, or 40″ swing and lengths from 80” – 320”.
Main Motor 20 HP, 230V/460V, 3 Phase, 60 Cycle, Switch and Wiring Complete
Spindle Bore: HP 4.09”
Spindle Nose: D1-11 Camlock
Headstock Spindle Adapter ASA#450 to MT#6
Chuck Guard
Set of Change Gears for Special Leads
Hardened and Ground Bedways

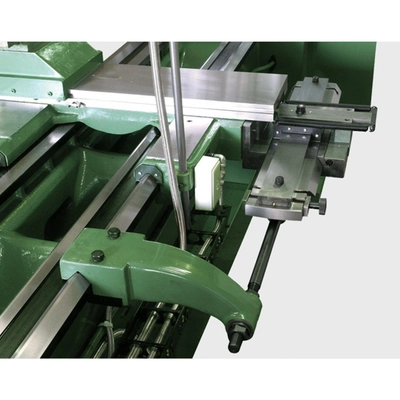

Tool Slide with T-Slot

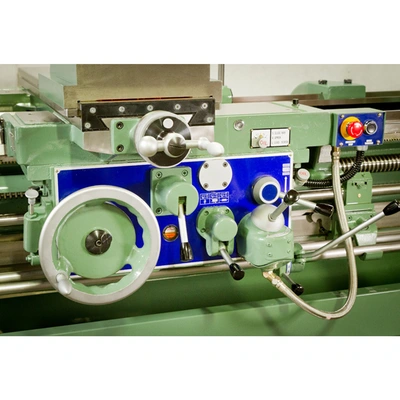

4-Way Rapid Traverse
Thread Chasing Dial
Tailstock Safety Locking Chock
2-Speed Drive Tailstock Quill
Coolant System with Pump & Piping
Pull Drawer Chip (Coolant) Pan
UL Electrical Components & Cables
Tool Box with Necessary Wrenches & Spanners
Instruction Manual and Parts List
Swing Over Cross Slide: 25.1″
Swing Over Gap (up to C.C. 160″ only): 45.6″
Distance Between Centers: 200″
Width of Bed: 22″
Height from floor to work center: 48.6″
Spindle Bore: 4.09″
Taper of Spindle Bore & Center: ASA #450 x M.T. #6
Type of Spindle Nose: D1-11
Number of Spindle Speeds: 16
Spindle Speed: 8-800 RPM (12-1200 Optional)
Number of Feed Changes: Fine (20), Normal (40), Course (30)
Range of Feeds per Revolution: 0.0024″-0.0337″
Longitudinal Cross: 1/2 of Longitudinal Feed
Leadscrew Diam. & Threads per Inch: 1.9” / 2 TPI
Threading range Whitworth: 2 to 28 TPI (40)/Coarse 5/8″ to 8″ Pitch (16)
Threading range Metric: 1 to 14mm (31)/Coarse 16 to 200mm Pitch (61)
Threading range Module: 0.5 to 7 M (20)/Coarse 8 to 56 M (30)
Threading range D.P.: 56 to 4 D.P. (40)/Coarse 3.5″ to .5″ D.P. (30)
Maximum Travel of Compound: 9.4″
Maximum Travel of Cross Slide: 21.2″
Tailstock Quill Travel: 11.8″
Tailstock Quill Diameter: 5.1″
Tailstock Center: M.T. #6
Main Drive Motor: 20 HP (25 HP, 30 HP Optional)
Coolant Pump Motor: 1/4 HP
Floor Space: W: 82″ L: 312″
Machine Weight: 16,060
