The big bore lathe is ideal for large pipe works in oil fields and big valves works. This series offers spindle bores up to 15″, center distance range from 60″ to 315″. The machine bed is 32″ wide. Double chucks are available for holding extra long and large work pieces.
Coolant Device
X, Z – axes Auto Lubrication System
X, Z – axes with Turcite-B
Steady Rest 16” (Bearing Type, grip range 60-400mm)
Face Plate with 4-Jaw 40”
Dead Center
Center Sleeve MT#6 (6” bore only, option for 9” and over)
Tool post Screw Wrench
Level Pads
Tools and Tool Box
Operation Manual
Lubricating Device for Headstock
Spindle Motor:30HP
Electromagnetic Brake
Metric / Inch Gear Box
Longitudinal & Cross Rapid Feeding
Electric tailstock with quill dia. 200mm, tailstock body and quill motorized for 32” bed width series

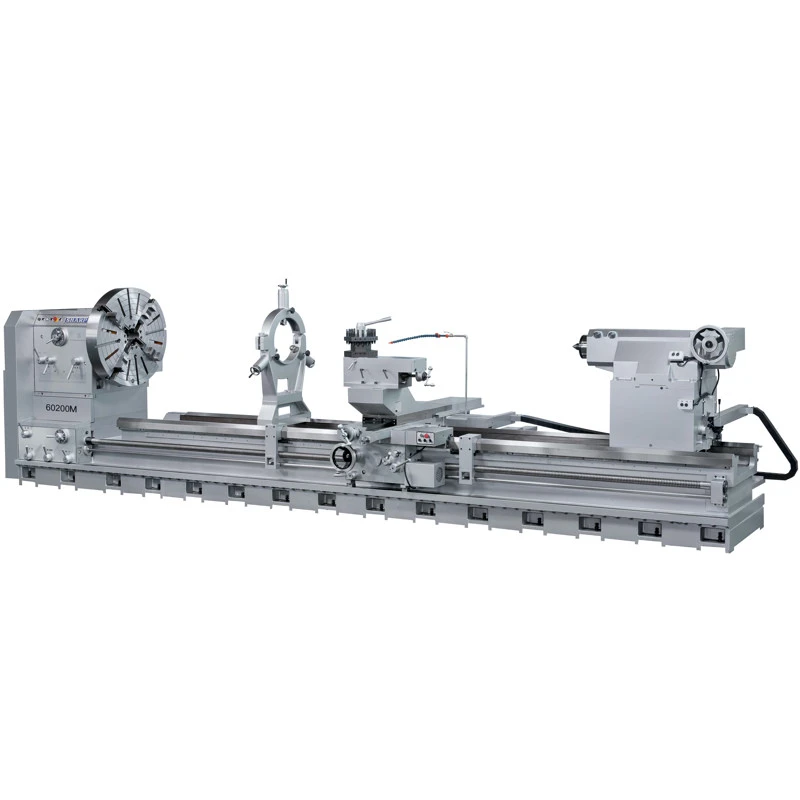

80″ x 240″ New Sharp Heavy Duty Big Bore Lathe Model 80240M-32 is suitable for turning and cutting large workpieces and steel rod materials for heavy industries like oil pipe networks, aerospace, and heavy-duty shaft processing.
Casting: One piece casting work with the reinforced inner structure, extra 3rd support to be suitable for processing of large workpieces and enhanced heavy-duty cutting ability. The removable gap has a built-in reinforced structure and does not affect any cutting stability.
Spindle:
Bore 6 “, 16-step speed change, turbine speed change mechanism with no easy speed jumping and three-point support for the box.
Fitted with adjustable, electromagnetic brake for easy braking adjustment according to different workpiece materials and speed.
Gear and shaft are made of super alloy material with FAG bearings to offer durable cutting and low production noise.
Sealed oil bath lubrication system with enforced oil supply by mechanical pump to achieve better lubrication effects.
Bore 6 “, 16-step speed change, turbine speed change mechanism with no easy speed jumping and three-point support for the box.
Fitted with adjustable, electromagnetic brake for easy braking adjustment according to different workpiece materials and speed.
Gear and shaft are made of super alloy material with FAG bearings to offer durable cutting and low production noise.
Sealed oil bath lubrication system with enforced oil supply by mechanical pump to achieve better lubrication effects.
Gear Box: Metric / Inch gearbox free from gear exchange to improve production efficiency. Speedy installation, forward and reverse movement, and safety installation with an automatic sealed oil bath lubrication system.
Apron Feeding Device: Swift transmission, positive and negative rotation movement and safety device with auto-sealed oil bath lubrication & cross rapid feeding.
Saddle: Anti-friction processed surface with regular oil injections, lubricated and friction endurable.
Tailstock: Two-stage in-feed device, swing arm movement to have smooth and labor-saving operation.
Electrical Control: 2-stage safety start-up device and overloading power cut system.
Castings: FC-30 steel is used for main structures like base, spindle, saddle, and tailstock, which are annealed and have no deformation.
Processing: Base, spindle, saddle, slot surface of traveling plate, tool base sliding table, and tail shaft pipe is high frequency treated, precision ground for extended service life.
Headstock Gear and shaft are made of super alloy material with FAG bearings to offer durable cutting and low production noise, Turbine speed change mechanism with an easy speed jump. Three-point support for the box.
Electric box 2-stage safety start-up device, durable cutting, and low production noise. Overloading power cut the system is filtered with adjustable, electromagnetic brakes for easy braking adjustment according to different workpiece materials and speeds.
