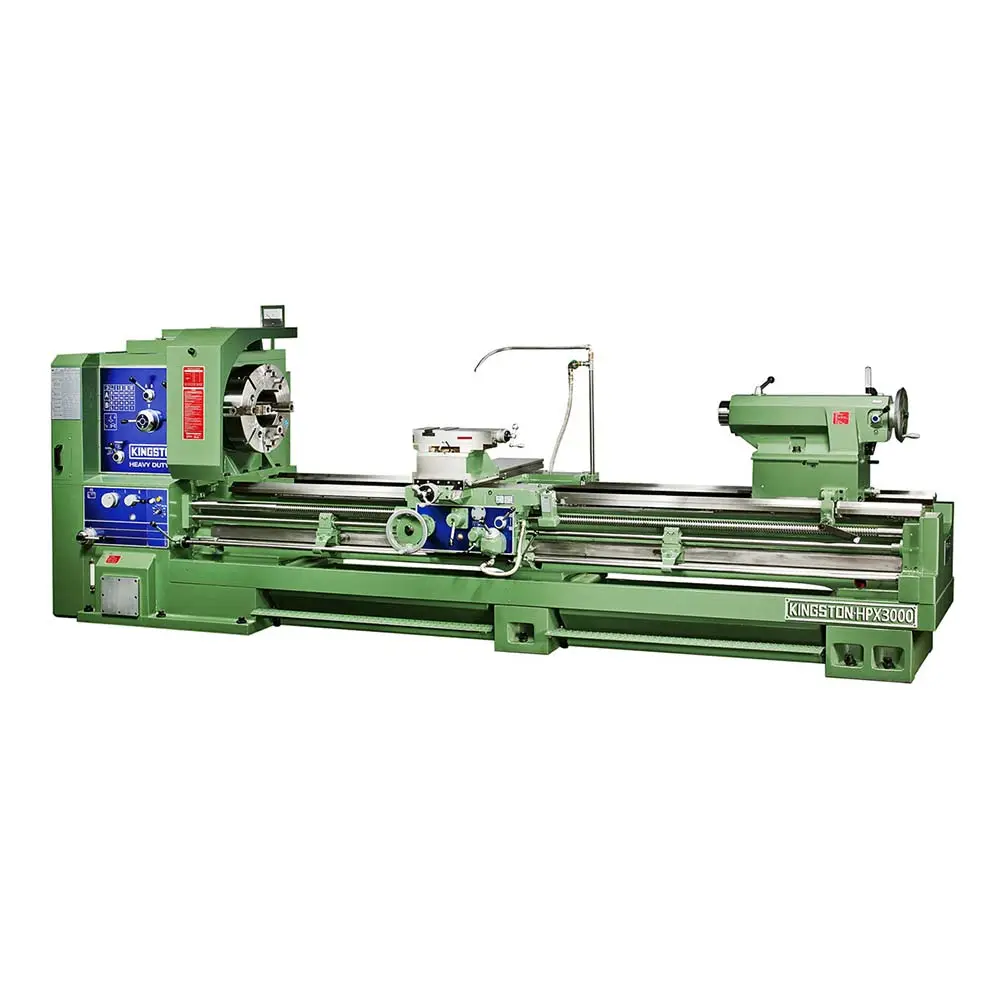

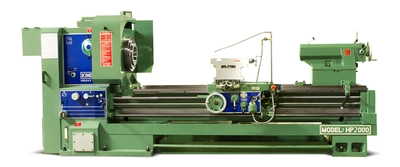

The 34″ x 200″ New Kingston Lathe is an extremely popular in the oilfields and elsewhere, Kingston’s 7.09” bore HP model and 9.25” (or 10.1”) bore HPX model deliver superior power and cutting performance on large and long workpieces. At the heart of these machines is a strong and rigid headstock and 22” bedway made with high-quality casting for greater stability and accuracy in heavy-duty applications. The powerful 30 HP spindle motor features 16 spindle speeds and the gear box features 40 kinds of feed changes. Kingston’s HP model is bigger, stronger, more precise, and more reliable than 6” bore machines, and the larger HPX model is in a league of its own. Available in 34” and 40” swings and lengths from 80” to 280. Watch the video to see the HPX in action!
Main Motor 30 HP, 230V/460V, 3 Phase, 60 Cycle, Switch and Wiring Complete
Spindle Bore: HP 7.09”
Spindle Nose: ASA-A2-15
Rear Chuck Adapter Installed
Front & Rear Chuck Guard
Set of Change Gears for Special Leads
Hardened and Ground Bedways
Tool Slide with T-Slot
Thread Chasing Dial
4-Way Rapid Traverse
Hydraulic Brake System
Self-Spacing Support for Lead Screw, Feed Rod & Control Rod
Coolant System with Pump and Piping
Tailstock Safety Locking Chock
2-Speed Drive Tailstock Quill
Pull Drawer Chip (Coolant) Pan
UL Electrical Components & Cables
Tool Box with Necessary Wrenches & Spanners
Introduction Manual and Parts List
11.9” Steady Rest with Roller Jaws (Min. Capacity 1.25″). $3,950
19.7″ Steady Rest with Roller Jaws (Min. Capacity 11.1″) $4,800
23.5” Steady Rest with Roller Jaws (Min. Capacity 11.9″) $6,700
7.9” Follow Rest (Min. Capacity 0.75″). $2,750
Roller Bracket (34″: 15.75″-27.5″ / 40″: 20″-33.5″). $7,500
Telescopic Taper Attachment (Hardened & Ground). $6,200
Drilling Attachment. $2,900
Micrometer Carriage Stop. $750
Turret Carriage Stop. $750
Halogen Work Light. $250
Add Limit Switch to Chuck Guard. $150
Aloris DA Tool Post Only. $1,350
Aloris DA Tool Post Plus 6 Holders (Set #5) $2,595
Aloris EA Tool Post Only $2,050
Aloris EA Tool Post Plus 6 Holders (Set #6). $4,050
Newall DP-700 2-Axis Digital Readout + Installation (Net): HP-3000 $9,900
Toolpost Guard $1,250
Chip Conveyor. Upon Request
Full Length Splash Guard. Upon Request
Chucks. Upon Request
Swing Over Cross Slide: 25.125″
Distance Between Centers: 200″
Width of Bed: 22″
Height from floor to work center: 48.63″
Spindle Bore: 7.09″
Type of Spindle Nose: ASA A2-15
Number of Spindle Speeds: 16
Spindle Speed: 8-700 RPM
Number of Feed Changes: 40 Kinds
Range of Feeds per Revolution: 0.0024”-0.0337″
Longitudinal Cross: 1/2 of Longitudinal Feed
Leadscrew Diam. & Threads per Inch: 1.9” / 2 TPI
Threading: inch/metric
Threading range Whitworth: 1 to 28 TPI (50)
Threading range Metric: 1 to 28mm Pitch (41)
Threading range Module: 0.5 to 7 M (20)
Threading range D.P.: 4 to 56 D.P. (40)
Maximum Travel of Compound: 9.75″
Maximum Travel of Cross Slide: 21.25″
Tailstock Quill Travel: 11.75″
Tailstock Quill Diameter: 5.125″
Tailstock Center: M.T. #6
Main Drive Motor: 30 HP (22 kw)
Coolant Pump Motor: 1/4 HP
Floor Space: W: 87″ L: 316″
Machine Weight: 19300
