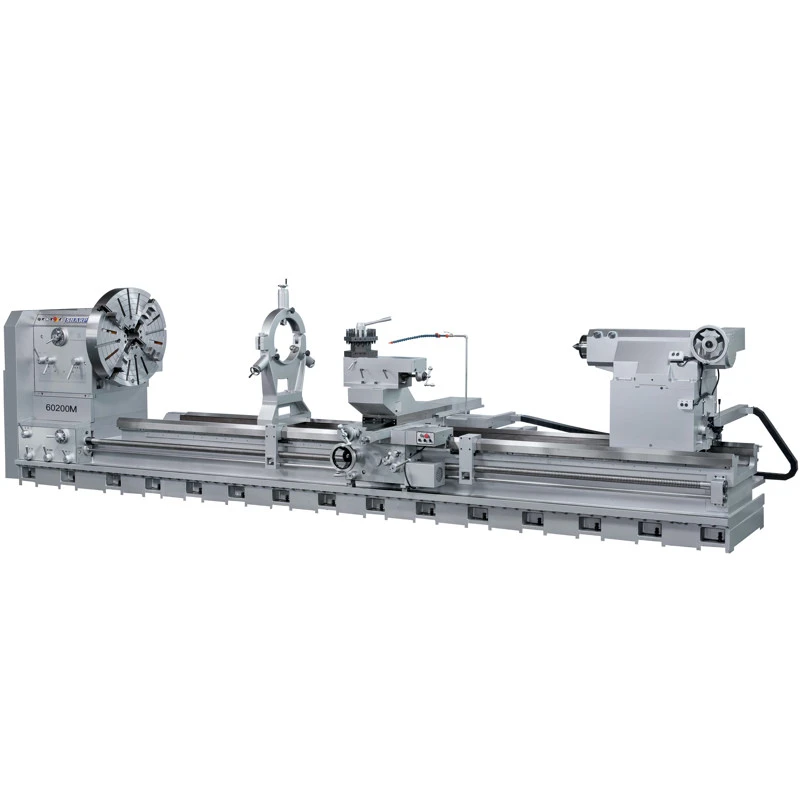

The big bore lathe is ideal for large pipe works in oil fields and big valves works. This series offers spindle bores up to 15″, center distance range from 60″ to 315″. The machine bed is 24″ wide. Double chucks are available for holding extra long and large work pieces.
Swing over bedways: 40″, 50″, 60″, 70″, 80″
Bet centers: 60″ – 315″
Spindle bore: 6″ standard, 9″, 12″, 15″, optional
Spindle motor: 30 HP, larger HP available
Bed width: 24″
Massive one-piece casting machine base
16 spindle speed
2 stage spindle start up
Headstock oil bath system
Electro magnetic brake
Lubrication system
Coolant system
Manual tailstock
Steady rest 16″
Work lamp
3-jaw chuck, different sizes
4-jaw chuck, different sizes
Steady rest, larger sizes
Follow rest, different sizes
Face plate with 4 jaws, different sizes
Rear chuck adapter
40 HP, 50 HP in lieu of 30 HP motor
Taper attachment
Digital Readout System
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.
Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
Swing Over Bed: 33.9″
Swing Over Cross Slide: 21.3″
Swing Over Gap: 47.3″
Distance Between Centers: 236.29″
Spindle Speed: 16-810 rpm
No. of Spindle Speeds: 12 steps
Spindle Nose: A2-11
Spindle Bore: 6″
Inch Threads, Number: 2-28 tpi, 36
Metric Threads, Number: 0.8-14 mm
Modular Threads, Number: 0.5-7 MP, 22
Diametral Pitch Threads, Number: 4-56 DP, 36
Longitudinal Feeds: 0.0020-0.0276 in/rev
Cross Feeds: 0.001-0.0138 in/rev
Leadscrew Pitch, Diameter: 2 tpi, 1.77″
Cross Slide Travel: 16.9″
Compound Travel: 14.6″
Compound Width: 25″
Bed Length: 326.8″
Bed Width: 24″
Quill Diameter: 4.9″
Quill Travel: 11.8″
Quill Center Taper: MT #6
Spindle Motor: 20 HP
Approximate Weight: 23,980 lbs
Dimensions: 28.5 x 6.75 x 4.75 ft
