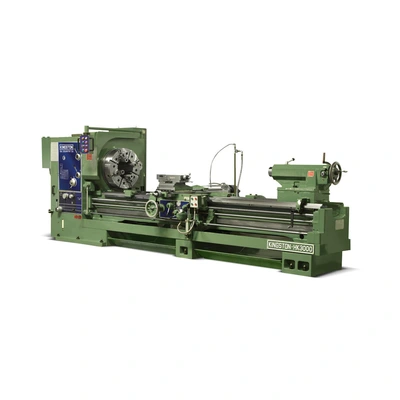

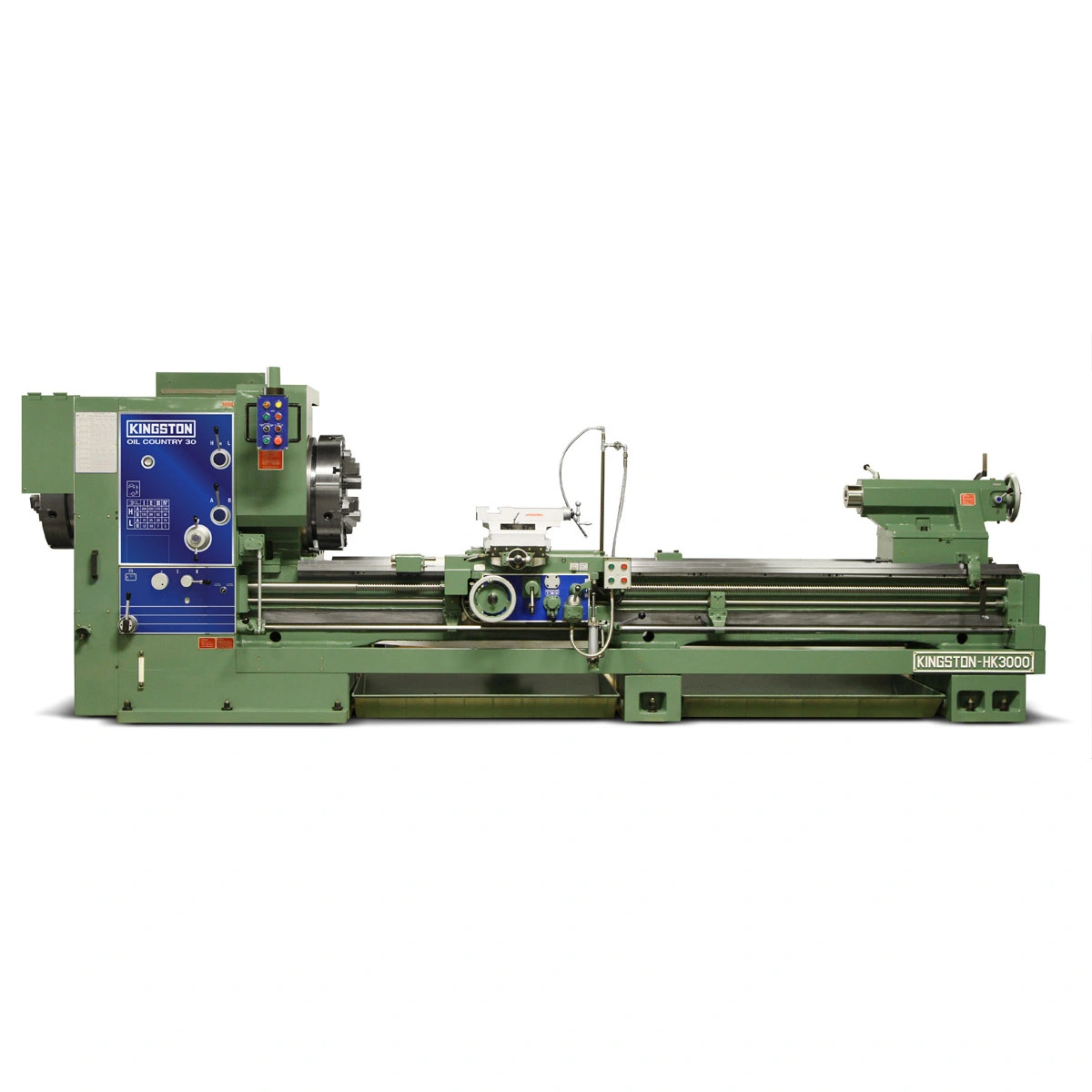

The 40″ x 200″ HG models are the heavyweight champs of Kingston’s manual line. Available in 12.5” and 14.7” spindle bores, respectively, the HK and HG thrive under the most demanding of work conditions. The HK (available in 30” or 34” swing) consistently leads the industry in heavy-duty oil country applications—with the shorter 30” swing being the most popular for its lower center of gravity and maximum stability during heavy cutting—while the larger HG is available in swing sizes up to 40”. These models are equipped with a powerful 20 HP Mitsubishi inverter-driven main motor (6P) and a hydraulic braking system, with a semi-automatic air threading attachment (complete with taper) as a popular option. Kingston’s commitment to building powerful, big bore, heavy duty machines is legendary; the HK and HG are Kingston’s maximal efforts – showcasing our largest spindle bore sizes, heaviest loading capacity, and massive amounts of torque. The HK and HG come front-and-rear-chuck ready (A2-20 spindle nose), with lengths from 120” to 280” between centers.

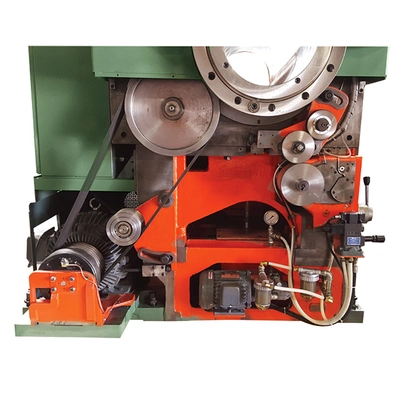

20 HP, 230V (only), 3 Phase, 60 Cycle Motor and Electrics Including Motor Drive Arrangement w/Mitsubishi Inverter & Hydraulic Brake
Spindle Bore: HG 14.8 (15.0” optional)
Spindle Nose: ASA-A2-20
Sliding Chuck Guard
Rear Chuck Adapter Installed
Set of Change Gears for Special Leads
Hardened and Ground Bedways
Tool Slide w/T-Slot
Thread Chasing Dial
4-Way Rapid Traverse
Hydraulic Brake System
Self-Spacing Supports for Lead Screw, Feed Rod & Control Rod
Coolant System with Pump and Piping

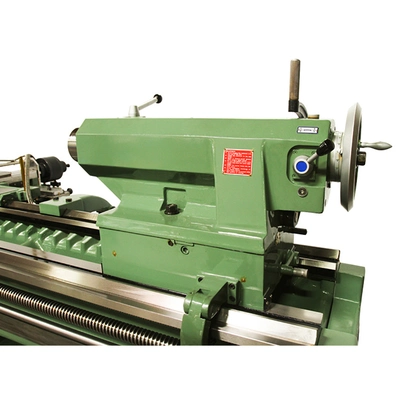

Tailstock Safety Locking Chock
2-Speed Drive Tailstock Quill
Pull Drawer Chip (Coolant) Pan
UL Electrical Components & Cables
Tool Box w/Necessary Wrenches & Spanners
Instruction Manual and Parts List

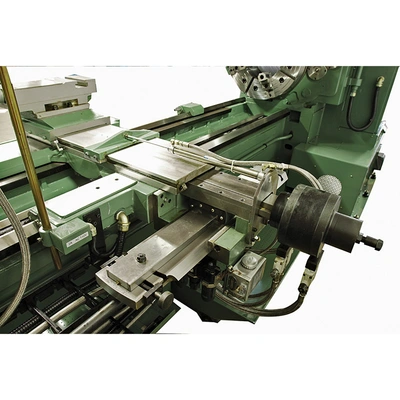

Semi-Automatic Air Threading Attachment w/ Special Taper (Factory Install Only) $11,900
11.9” Steady Rest With Roller Jaws (Min. Capacity 1.25”) $3,950
19.7” Steady Rest With Roller Jaws (Min. Capacity 11.1”) $4,800
23.5” Steady Rest With Roller Jaws (Min. Capacity 11.9”, 34” & 40” Swing Only) $6,700
7.9” Follow Rest (Min. Capacity 0.75”) $2,750
Roller Bracket (40”: 20”– 33.5”) $7,500
Spindle Bore Enlarged to 15.0″ (Factory Only) $4,500
Telescopic Taper Attachment (Hardened & Ground) $6,200
Drilling Attachment $2,900
Micrometer Carriage Stop $750
Turret Carriage Stop $750
Halogen Work Light $250
Add Limit Switch to Chuck Guard $150
Aloris DA Tool Post Only $1,350
Aloris DA Tool Post Plus 6 Holders (Set #5) $2,595
Aloris EA Tool Post Only $2,050
Aloris EA Tool Post Plus 6 Holders (Set #6) $4,050
Newall DP-700 2-Axis Digital Readout + Installation $9,900
Toolpost Guard. $1,250
Full Length Splash Guard Upon Request
Chip Conveyor Upon Request

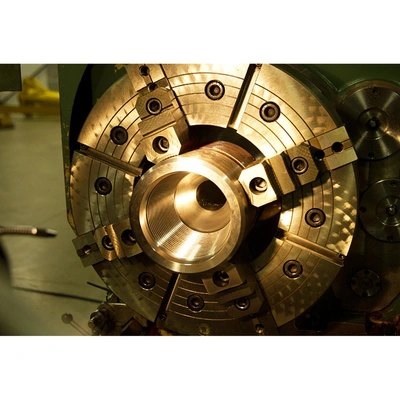

Chucks Upon Request
Swing Over Bed: 40″
Swing Over Cross Slide: 31.0″
Distance Between Centers: 198″
Width of Bed: 22″
Height of Center from Leg Bottom: 51.5″
Spindle Bore: 14.8″
Taper of Spindle Bore & Center: 3/4” Taper per Foot
Type of Spindle Nose: ASA A2-20
Number of Spindle Speeds: 16
Spindle RPM: 5 – 300 RPM
Main Drive Motor: 20 HP (15kw) 6P
Coolant Pump Motor: 1/4 HP
Number of Feed Changes: 40 Kinds
Range of Feeds per Revolution: 0.0024”-0.0337″
Longitudinal Cross: 1/2 of Longitudinal Feed
Leadscrew Diam. & Threads per Inch: 1.875” / 2 TPI
Threading: inch/metric
Threading range Whitworth: 1 to 28 TPI (50)
Threading range Metric: 1 to 28mm pitch (41)
Threading range Module: 0.5 to 7 M (20)
Threading range D.P.: 4 to 56 D.P. (40)
Maximum Travel of Compound: 9.75”
Maximum Travel of Cross Slide: 21.25”
Tailstock Quill Travel: 11.75″
Tailstock Quill Diameter: 5.125″
Tailstock Center: M.T. #6
Floor Space: W: 86″ L: 288″
Machine Weight: 23,700
