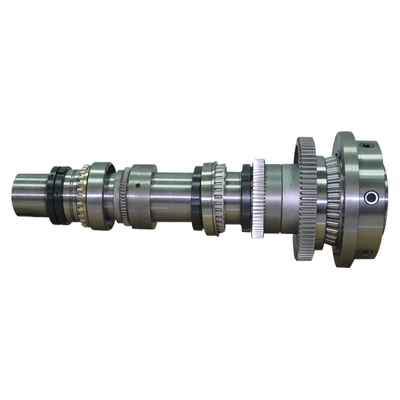

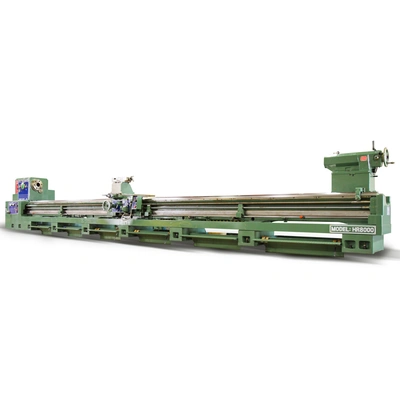

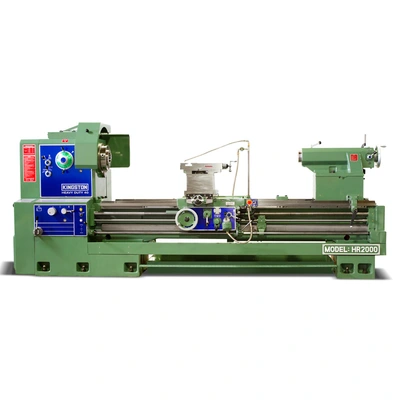

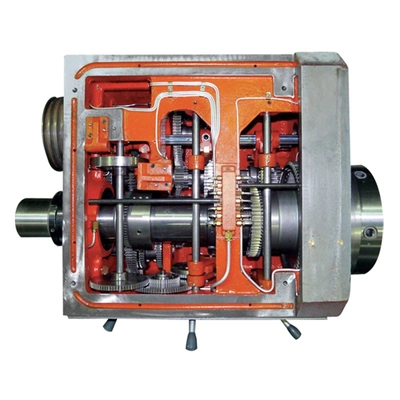

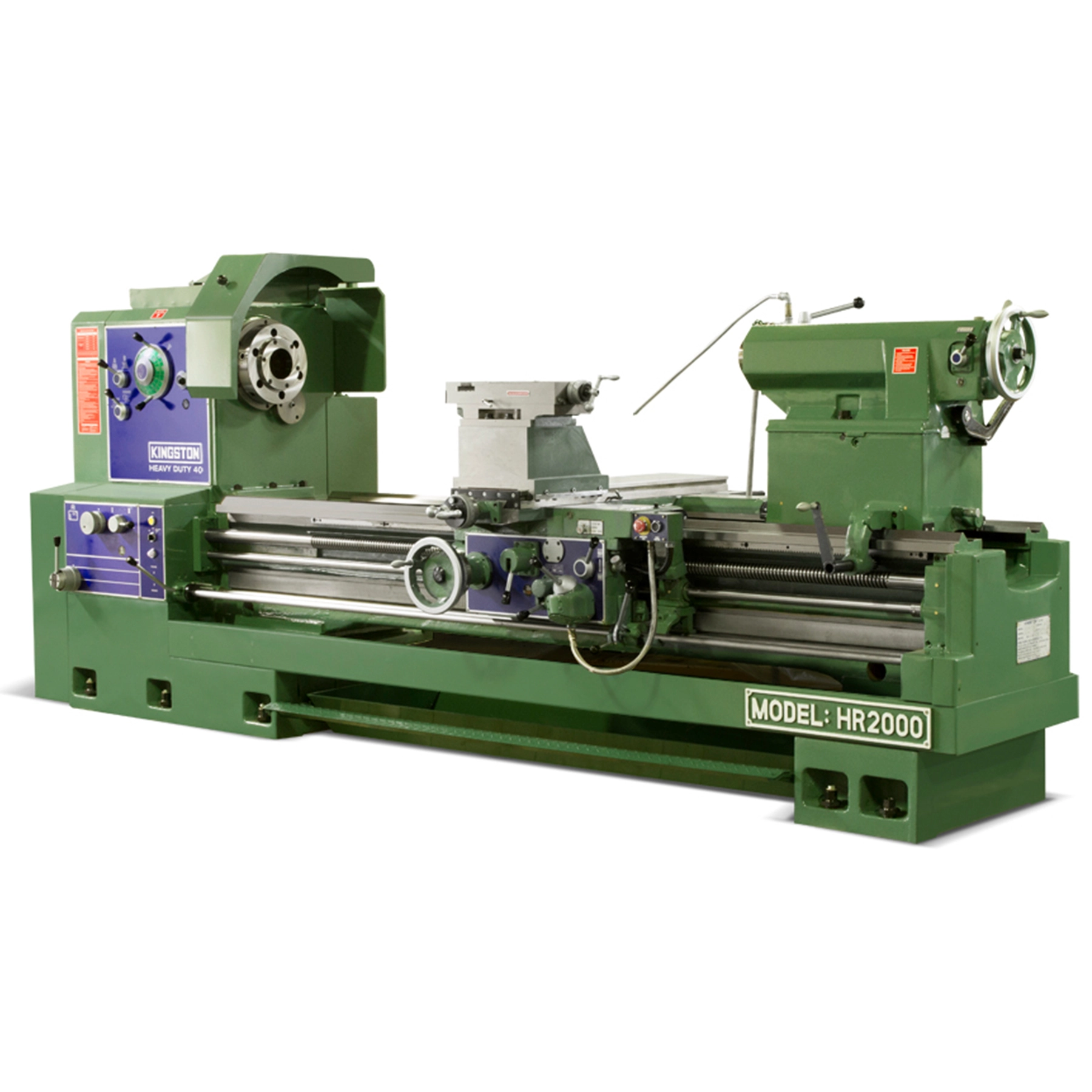

The 40″ x 240″ New Kingston Lathe is known as “The Workhorse” in machine shops across the country, Kingston’s heavy-duty HR model has been the industry leader in its class for nearly 40 years. At the heart of this machine is a strong and rigid headstock with a hardened and ground main spindle, which features a 4.06” bore and a 3-point bearing support system for superior cutting capability. Operators benefit from the increased control that comes with 16 spindle speeds (8 – 800 RPM) and a wider range of feeds and threading choices. The unique rib structure of the 22” bedway is made with high-quality casting to ensure greater stability and accuracy in heavy-duty applications. The HR is available in 30”, 34”, or 40″ swing and lengths from 80” – 320”.
Main Motor: 20 HP, 230V/460V, 3 Phase, 60 Cycle, Switch and Wiring Complete
4.09″ Spindle Bore
Spindle Nose: D1-11 Camlock
Headstock Spindle Adapter: ASA-450 to MT#6
Chuck Guard
Set of Change Gears for Special Leads
Hardened and Ground Bedways

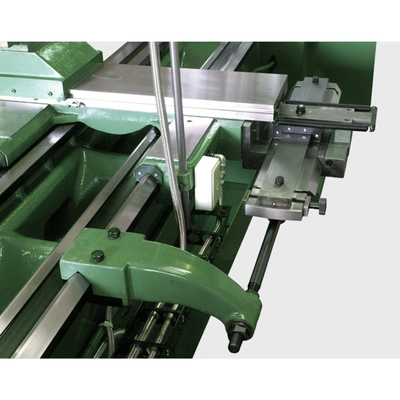

T-Slot on Tool Slide

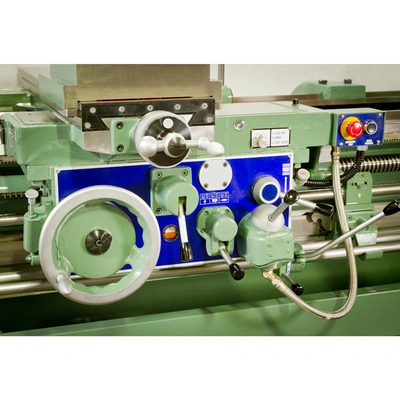

4-Way Rapid Traverse
Thread Chasing Dial
Tailstock Safety Locking Chock
2-Speed Drive Tailstock Quill
Coolant System with Pump and Piping
Pull Drawer Chip (Coolant) Pan
UL Electrical Components & Cables
Tool Box with Necessary Wrenches & Spanners
Instruction Manual and Parts List
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.
Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
Swing Over Cross Slide: 31″
Swing Over Gap: 51.5″
Distance Between Centers: 240″
Width of Bed: 22″
Height from floor to work center: 51.5″
Spindle Bore: 4.09″
Taper of Spindle Bore & Center: ASA #450 x M.T. #6
Type of Spindle Nose: D-1-11
Number of Spindle Speeds: 16
Spindle RPM: 8-800 RPM (12-1200 Optional)
Number of Feed Changes: Fine (20), Normal (40), Course (30)
Range of Feeds per Revolution: 0.0384”-0.2694”
Longitudinal Cross: 1/2 of Longitudinal Feed
Leadscrew Diam. & Threads per Inch: 1.9” / 2 TPI
Threading: inch/metric
Threading range Whitworth: 2 to 28 TPI (40) / Coarse 5/8” to 8” Pitch (16)
Threading range Metric: 1 to 14 mm (31) / Coarse 16 to 200 mm Pitch (61)
Threading range Module: 0.5 to 7 M (20) /Coarse 8 to 56 M (30)
Threading range D.P.: 56 to 4 D.P. (40) / Coarse 3.5” to 0.5” D.P. (30)
Maximum Travel of Compound: 9.4″
Maximum Travel of Cross Slide: 21.2″
Tailstock Quill Travel: 11.8″
Tailstock Quill Diameter: 5.1″
Tailstock Center: M.T. #6
Main Motor Drive: 20 HP (25HP, 30 HP Optional)
Coolant Pump Motor: 1/4 HP
Floor Space: W: 82″ L: 358″
Machine Weight: 18,860
