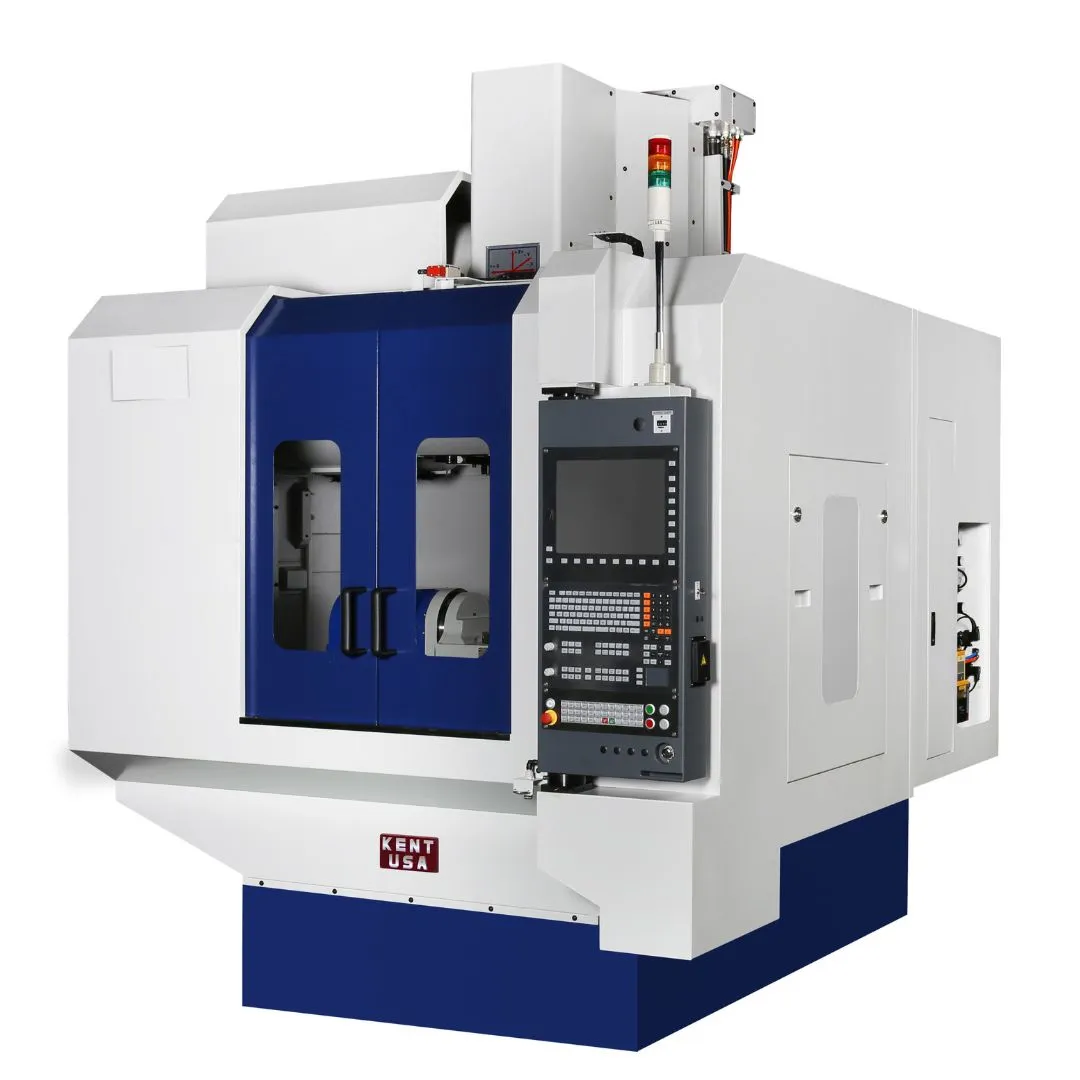

New Kent USA High Speed Vertical Machining Center KTMV-720A

The KENT CNC KTMV-720A Vertical Machining Center is a high-performance machine designed for precision and efficiency. It features a robust 31.5″ x 18.9″ (800 mm x 480 mm) table with a maximum load capacity of 1,102 lbs (500 kg) and a height of 35.4″ (900 mm) from the floor. Equipped with a 7/24 Taper No.40 spindle taper and a BT-40 tool shank, the spindle reaches speeds up to 8,000 rpm. The machine offers generous X/Y/Z axis travels of 28.3″ (720 mm), 18.9″ (480 mm), and 20.9″ (530 mm) respectively, with a rapid traverse rate of 1,577.5 in/min (48 m/min) and a cutting feedrate range of 0.04 to 393.7 in/min (1 to 10,000 mm/min).
The KTMV-720A includes a 24-tool capacity arm-type ATC, supporting tools up to 9.8″ (250 mm) in length, 15.4 lbs (7 kg) in weight, and 4.9″ (125 mm) in diameter without adjacent tools. Powered by a 10/7.4 kW spindle motor and 2.4/2.4/4.0 kW servo motors for each axis, the machine delivers reliable and consistent performance. With overall dimensions of 78.7″ x 107.9″ x 105.9″ (2000 mm x 2740 mm x 2690 mm) and a weight of 9,700 lbs (4400 kg), the KTMV-720A is controlled by the advanced Fanuc 0i-MF system, making it a solid choice for demanding machining applications.
X/Y/Z-Axis Travel: 28.3″ / 18.9″ / 20.9″ (720 mm / 480 mm / 530 mm)
X/Y/Z-Axis Travel: 28.3″ / 18.9″ / 20.9″ (720 mm / 480 mm / 530 mm)
X/Y/Z-Axis Rapid Traverse: 1,577.5 in/min (48 m/min)
X/Y/Z-Axis Rapid Traverse: 1,577.5 in/min (48 m/min)
Spindle Speed: 8,000 rpm
Spindle Speed: 8,000 rpm
Coolant through Spindle
Spindle Cooler
4th Axis
Tool Breakage Detector
Oil Skimmer
Chip Conveyor
Tri-Color Warning Light
Oil Mist Collector
Coolant Gun
A/C for Electrical Cabinet
Transformer
Sub-Operation Box
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.

Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/

Table Size (LxW): 31.50″ x 18.90″ (800mm x 480mm)
Table Max. Loading Capacity: 1,102.3 lbs (500 kg)
Table height from floor: 35.43″ (900mm)
T-slot (sizexNo.): 0.71″ x 0.20″ (18mm x 5mm)
Spindle Taper: 7/24 Taper No.40
Spindle Speed: 8,000 rpm
X/Y/Z axis travel: 28.35″ / 18.90″ / 20.87″ (720mm / 480mm / 530mm)
Distance from table surface to spindle gage line: 3.94″ ~ 24.80″ (100mm ~ 630mm)
X/Y/Z axis rapid traverse: 1,890 ipm (48m/min)
Cutting feedrate: 0.04–393.7 ipm (1~10,000 mm/min)
Tool Shank: BT-40
Tool Capacity: 24pc
Max. tool diameter: Ø3.15″ (Ø80mm)
Max. tool diameter (w/o adjacent tool): Ø4.92″ (Ø125mm)
Max. tool length: 9.84″ (250mm)
Max. tool weight: 15.43 lbs (7 kg)
Spindle Motor: 10 HP / 7.4 HP (7.5/5.5 kW)
X/Y/Z axis servo motor: 2.4 / 2.4 / 4.0 HP (1.8/1.8/3.0 kW)
Machine Dimensions (WxDxH): 78.74″ x 107.87″ x 105.91″ (2000mm x 2740mm x 2690mm)
Machine Weight: 9,700 lbs (4400 kg)
Controller: Fanuc 0i-MF
