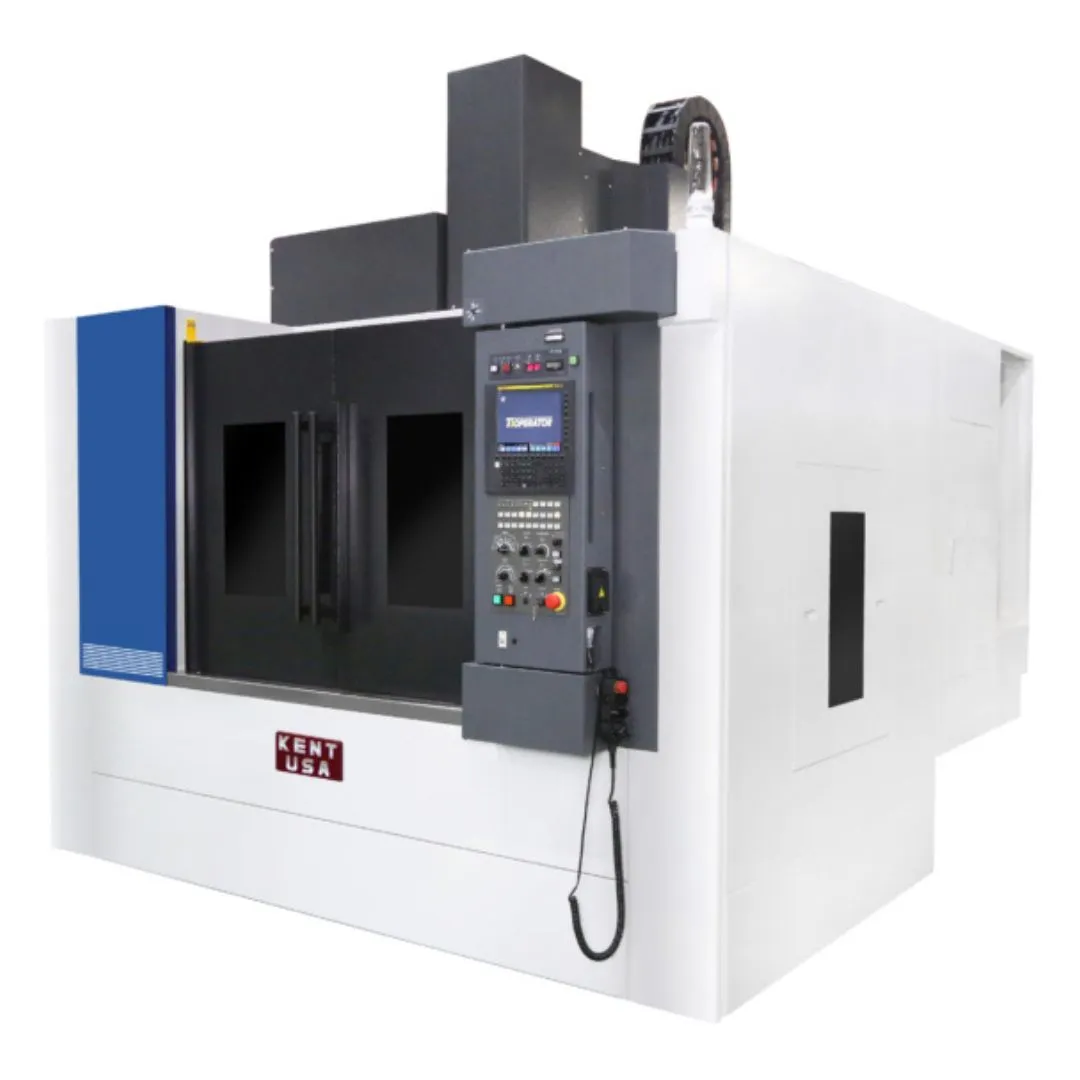

New Kent USA High Speed Vertical Machining Center KVP-12

The KENT CNC KVP-12 Vertical Machining Center is designed for high efficiency, precision, and reliability. It features a spacious machining area with X/Y/Z travels of 50.0″ / 26.4″ / 28.0″ (1,270 / 670 / 710 mm) and rapid traverse speeds of 1,417 / 1,417 / 1,181 in/min (36 / 36 / 30 m/min), providing ample room and speed for various machining tasks.
The direct-drive spindle minimizes heat transmission from the motor and offers high precision, low vibration, and easy maintenance. Standard spindle speed is 10,000 rpm, with an optional upgrade to 15,000 rpm. The BIG-PLUS dual-face contact system enhances spindle and tool holder rigidity for better machining accuracy.
An intelligent spindle system includes clamping position sensors and automatic coil switching for optimal power output at all speeds. An optional spindle cooling system further improves thermal stability and precision. Combined with air-shield sealing for bearing protection, the KVP-12 delivers consistent, high-performance results with long-term reliability.
X/Y/Z-Axis Travel: 50.0″ / 26.4″ / 28.0″ (1,270 / 670 / 710 mm)
X/Y/Z-Axis Travel: 50.0″ / 26.4″ / 28.0″ (1,270 / 670 / 710 mm)
X/Y/Z-Axis Rapid Traverse: 1,417 / 1,417 / 1,181 in/min (36 / 36 / 30 m/min)
X/Y/Z-Axis Rapid Traverse: 1,417 / 1,417 / 1,181 in/min (36 / 36 / 30 m/min)
Spindle Speed: 10,000 rpm (Opt. 15,000 rpm)
Spindle Speed: 10,000 rpm (Opt. 15,000 rpm)
10,000 rpm (Direct-drive)
BBT-40 Tool Shank
24 pcs Tool Capacity
Auger-Style Chip Conveyor
Spinlde Through Coolant
FANUC fine surface machining
FANUC Tool life management
Air gun set
LED work light
Tri-color warning light (LED)
Manual pulse generator
Workpiece counter (CNC)
Air blow system
Automatic low-speed or high-speed winding switch(※)
Coolant tank with filter box
Spindle nozzle coolant
15,000rpm(Direct-drive)
HSK-A63 Tool Shank
30 pcs Tool Capacity
Coolant through Spindle: 20 bar
Coolant through Spindle: 50 bar
Spindle oil cooler
Electrical cabinet cooler
Bed flushing system
Coolant tank with chip conveyor
Chip shower
Coolant gun set
Disk type oil skimmer
Renishaw TS-27R (Tool Breakage Measurement System)
Factorytool breakage detector (Tool Breakage Measurement System)
Renishaw OMP60 (Workpiece measuring system)
Linear scale
Automatic door
Mist collector
Transformer/ Stabilizer
Hydraulic units and interface
Automatic power off system
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.

Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/

Table Size (LxW): 53.15″ × 27.95″ (1350mm × 710mm)
Max. Loading Capacity: 2866 lbs (1300kg)
Table height from floor: 37.2″ (945mm)
T-slot (sizexNo.): 0.71″ x 7 (18mm x 7)
Spindle Taper: 7/24 Taper No.40
Spindle Speed: 10,000 rpm (Opt. 15,000 rpm)
X/Y/Z axis travel: 50″ / 26.38″ / 27.95″ (1270mm / 670mm / 710mm)
Distance from table surface to spindle gage line: 3.94″–31.89″ (100-810mm)
X/Y/Z axis rapid traverse: 1417/1417/1181 in/min (36/36/30 m/min)
Cutting feedrate: 0.04″–393.7″/min (1–10,000mm/min)
Tool Shank: BT-40
Tool Capacity: 24pc (Opt. 30 pc)
Max. tool diameter: Ø3.5″ (Opt. Ø2.95″) (Ø89mm / Opt. Ø75mm)
Max. tool diameter (w/o adjacent tool): Ø4.92″ (Ø125mm)
Max. tool length: 11.81″ (300mm)
Max. tool weight: 15.43 lbs (7kg)
Spindle Motor: 14.75/20.11/24.8 hp (11/15/18.5 kW)
X/Y/Z axis servo motor: 5.36/5.36/9.39 hp (4/4/7 kW)
Machine Dimensions (WxDxH): 114.17″ × 128.54″ × 124.61″ (2900mm × 3266mm × 3166mm)
Machine Weight: 19,841 lbs (9000 kg)
Controller: FANUC 0i-MF Plus
