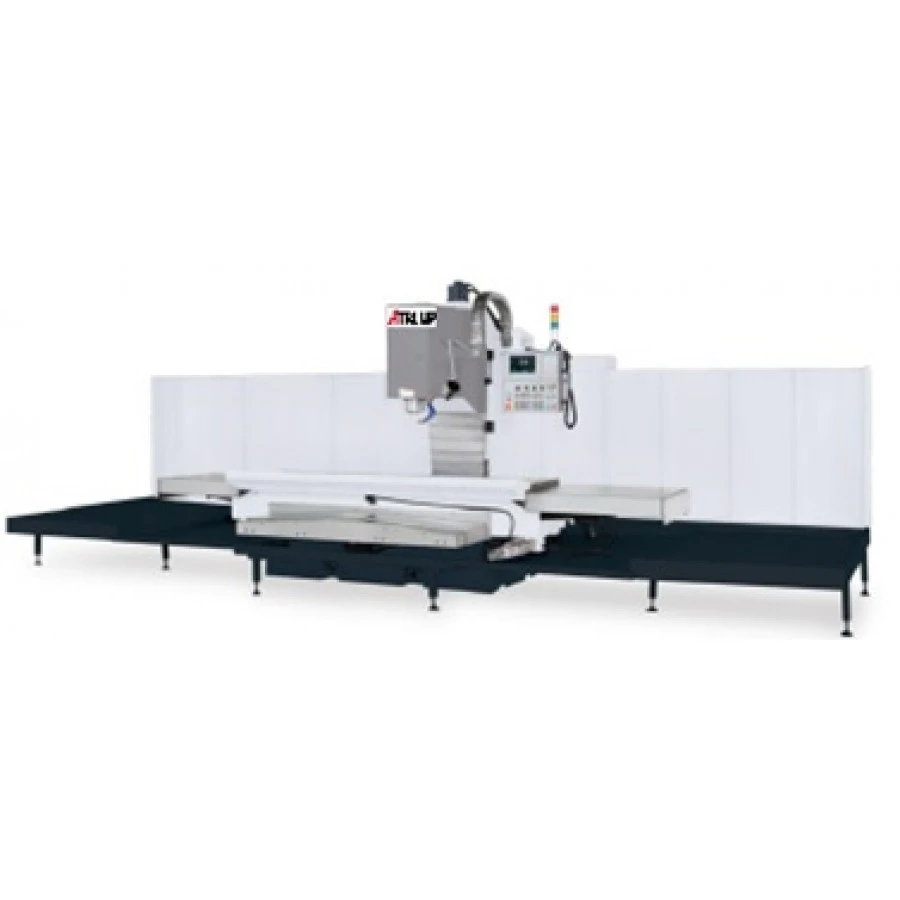

32″ x 108″ New ATrump Machining Center Model BM-780H Specifications:
32″ x 108″ New ATrump Machining Center Model BM-780H Features:
Centroid M400 control with 15” Touch Screen LCD
20 tools ATC armless
20HP spindle motor, BT40 or CAT40 spindle taper
8,000 rpm spindle speed
Hardened & ground with Turcite-B coating guide way
Double nut precision ball screws hardened & ground for high accuracy and long lasting
FC30Meehanitecasting main frame with annealed & stress relieved for long term reliability
100% laser tested for positioning accuracy & repeatability
Box ways design on Y axis to provide maximum rigidity & stability
Telescopic steel way cover on three axes
Tool box & tools
Coolant system and air blast system
Central lubrication system
Built-in Quartz work light
Rigid tapping (opt)
Portable hand wheel (opt)
Standard Accessories:
Tools & box
Leveling bolts & plate
RS-232 interface
Parts manual machine
Splash guard
Air blast, coolant flush gun
Table guard
Halogen work light
240 GB solid state hard drive
USB 2.0 port
Auto lube/ coolant system
Shop floor programming/Conversational
Electronic operation manual Centroid
Optional Accessories:
Longitudinal travel:: 98″
Cross travel: 33″
Vertical travel: 27.5″
Spindle nose to table top (D): 3.9”-31.4”
Load capacity: 4400lbs (2000kgs)
Spindle taper: BT40 or CAT40
Spindle speed: 8000 rpm
Transmission of spindle & motor: Belts
Spindle center to column front surface: 35.4
Rapid feed rate: 400ipm AC
Cutting feed rate: 100ipm AC
Spindle motor: 20 HP
Feed motors on XYZ: 3 kW – AC
Coolant pump: 1/4 Hp
Lubrication pump: 150W
No. of tools: 20
Max tool diameter: 3.54″ (90mm)
Max tool weight: 15.4lbs (7kgs)
Power requirement: 30 KVA 3 phase 208V to 230V (Max)
Air requirement: With opt. power draw bar 90 – 100 psi
Type of oil for way oil / pneumatic oil: Mobil Vectra #2/ Shell Tellus 32/ Air tool oil
Coolant capacity: 26 Gallons
Length x Width x Height: 91” x 185” x 102” (package size)
Floor size: 194″ x 185″ x 118″
Net weight: 22,320lbs (10000kgs)
