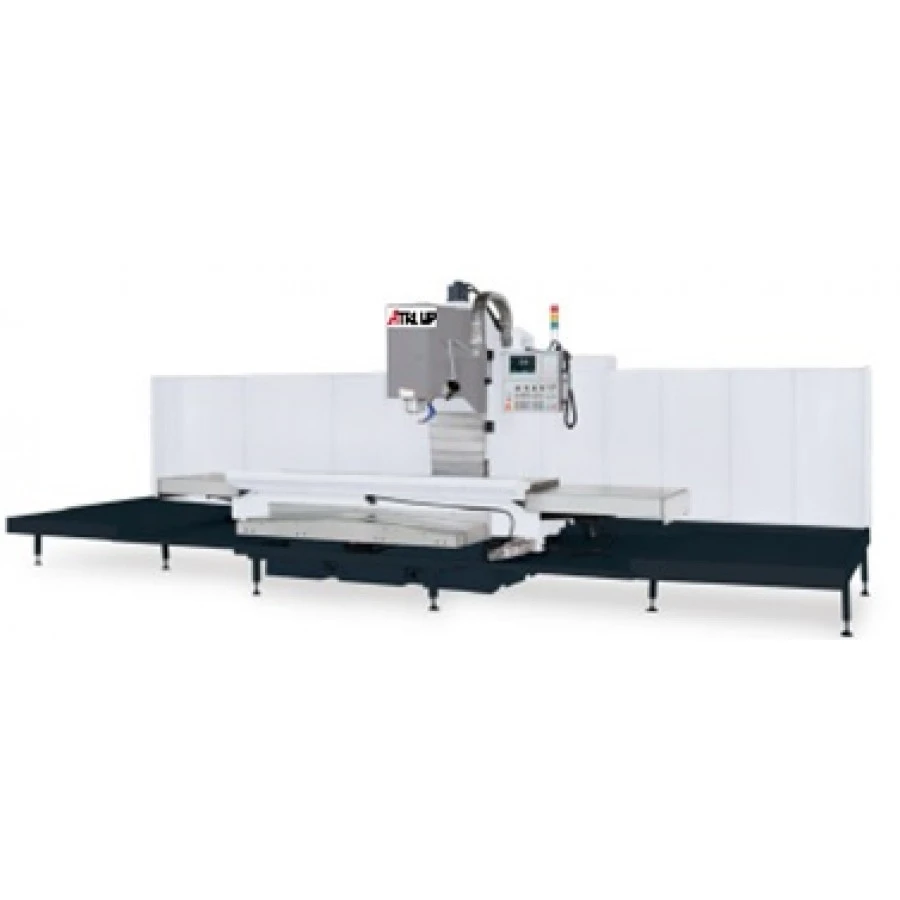

32″ x 126″ New ATrump Machining Center Model BM-880H Specifications:
32″ x 126″ New ATrump Machining Center Model BM-880H Features:
Centroid control with 15″ Touch Screen LCD
20 tools ATC armless
20 HP spindle motor, CAT50 spindle taper
6,000 rpm spindle speed
Hardened & ground with Turcite-B coating guide way
Double nut precision ball screws hardened & ground for high accuracy and long lasting
FC30 Meehanite casting main frame with annealed & stress relieved for long term reliability
100% laser tested for positioning accuracy & repeatability
Box ways design on Y axis to provide maximum rigidity & stability
Telescopic steel way cover on three axes
Tool box & tools
Coolant system
Auto lubrication system
Built-in work lamp
32″ x 126″ New ATrump Machining Center Model BM-880H Standard Accessories:
Work lamp – 110V
Coolant pump
Auto lubrication system -110V
Chip tray + tank
X/Y/Z axis telescopic cover
Heat exchanger for electrical cabinet
Tool box
Column side rear splash guard
20 tools ATC armless
Parts manual machine
Electronic operation manual Centroid
240GB SSD hard drive
32″ x 126″ New ATrump Machining Center Model BM-880H Optional Accessories:
Longitudinal travel: 118″
Cross travel: 35.4″
Vertical travel: 29.5″
Load capacity: 4850 lbs
T-slot: 0.7″ x 7” x 3.93″
Spindle taper: CAT50
Spindle speed: 6000 rpm
Feed rate: 393 ipm
Ballscrew (X.Y-axis) / (Z-axis): D3.14″ / D2.48″
Rapid travel (X.Y-axis) / (Z-axis): 393″ ipm / 787″ ipm
Spindle motor: 20 HP
Feed motors on XYZ: AC 3kW
Coolant pump: 1 HP
Lubrication pump: 150 W
No. of tools: 20
Max tool diameter: 3.54″
Max tool weight: 15.4 lbs
Length x width x height: 240″ x 89″ x 100″
94″ x 88″ x 59″
70″ x 88″ x 43″
Net weight: 32180 lbs / 2425 lbs / 1763 lbs
Power requirement: 35 KVA 3 phase 208V to 230V (Max)
Air requirement: With opt. power draw bar 90 – 100 psi
Type of oil for way oil / pneumatic oil: Mobil Vectra #2/ Shell Tellus 32/ Air tool oil
Coolant capacity: 26 Gallons
