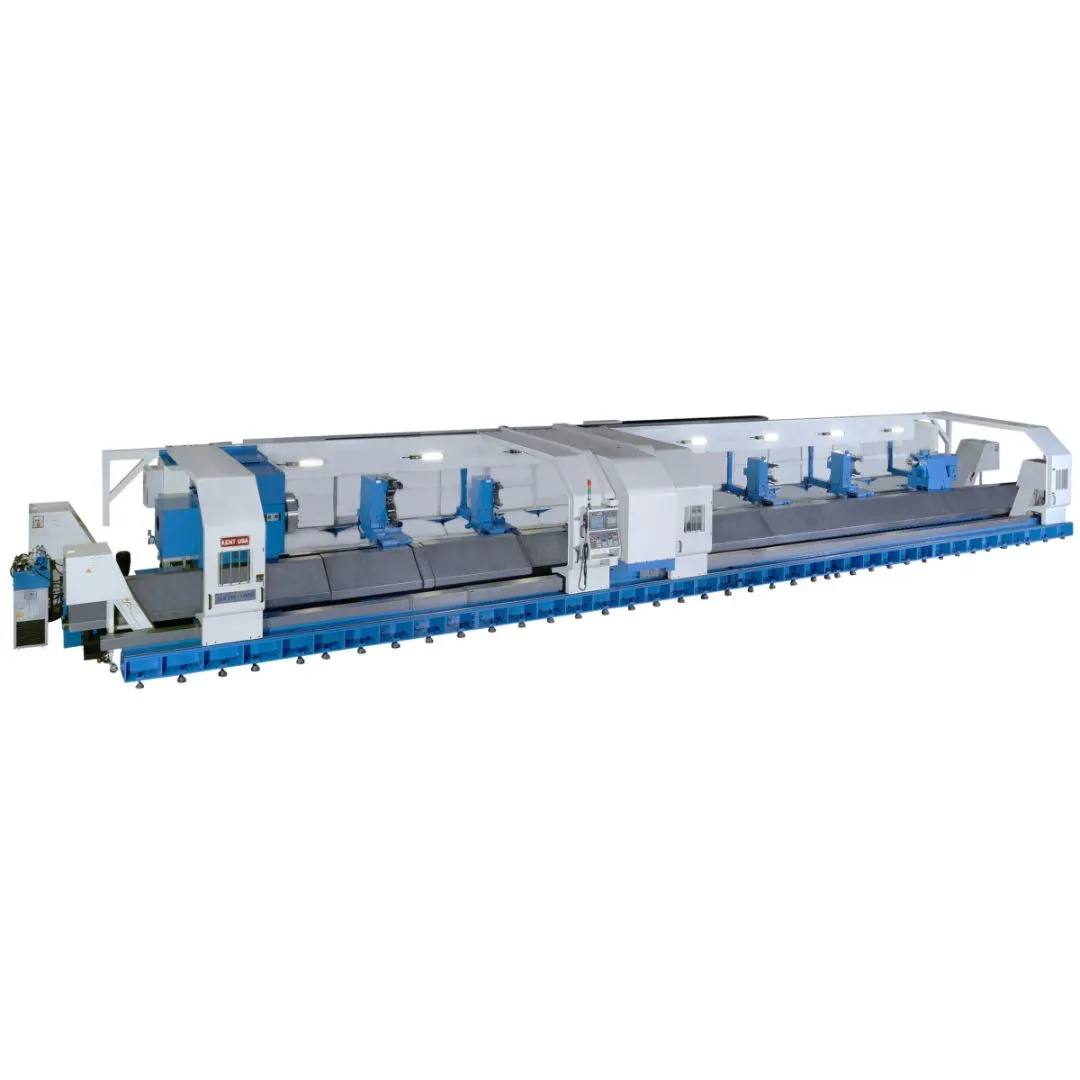

37″ x 196″ New Kent USA CNC 5-Axis Milling Turning Center CLB & CLB-B Series

37″ x 196″ New Kent USA CNC 5-Axis Milling Turning Center CLB & CLB-B Series

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
CNC Lathes
Manufacturer:
KENT USA
Stock #:
43147
Description

The Kent CNC 5-Axis Milling Turning Center provides 2 excellent configurations for complex multi-tasking milling and turning. The sub-spindle system is built on an independent guideway to provide maximum support. Both 5-axis milling turning centers are also equipped with a 20 ATC system for multi-tasking processing.
Lubrication Pump
Coolant Pump
Hydraulic Pump
Chip Removal System

Specifications

Series: CLB/CLB-B
Max cutting diameter: 37.4″
Center Height: 27″ / 31.7″
Distance Between Centers: 118.1″-551.2″ / 196.9″
Control: Fanuc 0i-TF / Fanuc31iB
Bed Width: 43″ / 50.8″
Bed Way: 2 Box way for Carriage; 1 V-Way and 2 flat way for tailstock and steady rest
Spindle Bore: 6″ (Opt. Up to 16″) / 9.1″
Spindle Nose: A2-11 (Opt. Up to A2-28) / A2-15
Spindle Speed: 9-900 to 5-250 RPM / 9-600 RPM
Spindle Center: MT#6
Spindle Power: 40/50HP
Sub Spindle Mode for CLB-B: Kenturn MV2005B-CTS + 20 Tool ATC
Sub Spindle Servo Motor for CLB-B: Fanuc 15/6000i
Sub Spindle Speed for CLB-B: 300-4500 RPM
Tool Size for CLB-B: BT50/CAT50/ISO50
Quill Diameter: both- 7.87″ (Opt. 9.8) / CLB-B only 9.84″
Quill Stroke: 9.8″
Quill Movement: Hydraulic
Tailstock Center: MT#6
X-Axis Feed Rate: 197 ipm
X-Axis Ballscrew Diameter: 50mm x P5
X-Axis Stroke: 22″/ 33″
X-Axis Servo Motor- CLB-B: Fanuc 5.4 HP
Z-Axis Ballscrew Diameter: 80mm x P10
Z-Axis Servo Motor- CLB-B: Fanuc 9.4 HP
C-Axis Indexing System- CLB-B: CS Axis
Z-Axis Stroke- CLB: 118″ up tp 551″
Y-Axis Feed Rate: 197 ipm / ±4″
Y-Axis Ballscrew Diameter: 40mm x P5
Y-Axis Servo Motor- CLB-B: Fanuc 5.4 HP with Brake
Y-Axis Stroke- CLB: ±3.9″
B-Axis Index Accuracy- CLB-B: 15″
B-Axis Motor- CLB-B: Fanuc 4 HP with Brake
B-Axis Min Increment – CLB-B: .001 mm
B-Axis Traverse – CLB-B: ±90°
Steady Rest Quill Diameter -CLB-B: 3.15″ (Opt. 4.13″)
Steady Rest Capacity – CLB-B: 11.8″-19.7″ (Opt. 29.5″-37.4″)
Control: Fanuc 0i-TF
X2 Servo Motor: 5.4 HP
Z2 Servo Motor: 9.4 HP
Boring Bar Diameter: 5.9″ (Opt. 9.8″)
Internal Holte Maximum Cutting Diameter: 9.8″ – 33″ (Opt. 13.8″ – 37″)
Internal Hole Maximum Cutting Depth: 59″ (Opt. 98.4″)
X2 Rapid Traverse: 197 ipm
X2 ballscrew Diameter: 40mm x P5
X2 Stroke: 11.8″
Z2 Rapid Traverse: 197 IPM
Z2 Ballscrew Diameter: 63mm x P5
Z2 Stroke: 118″
