The KENT USA KTM-3VSF knee-type milling machine combines proven designs with the latest advance technology in engineering and over 35 years of manufacturing excellence. Reliability and performance makes these a favorite among demanding job shops and in-house tool rooms. With best in class features and superior built quality, the KTM-3VSF knee mills are the new industry standard in high performance vertical turret knee-type milling machines.
3 HP spindle motor, 50 – 4500 rpm variable speed milling head with AC-Freq drive
Digital spindle RPM display and real-time LED spindle load indicator bar
Automatic spindle direction matching when switching between High/Low gear range
9” x 49” table size, hardened and ground for long-lasting performance
T-slots ground parallel to table ways for easy and precise set ups
Precision ground lead screws with backlash compensating double nut
Meehanite casting with built-in coolant reservoir in machine base
Interlocked UL breaker switch on electrical cabinet
Automatic centralized one-shot lubrication system with metered check-valves

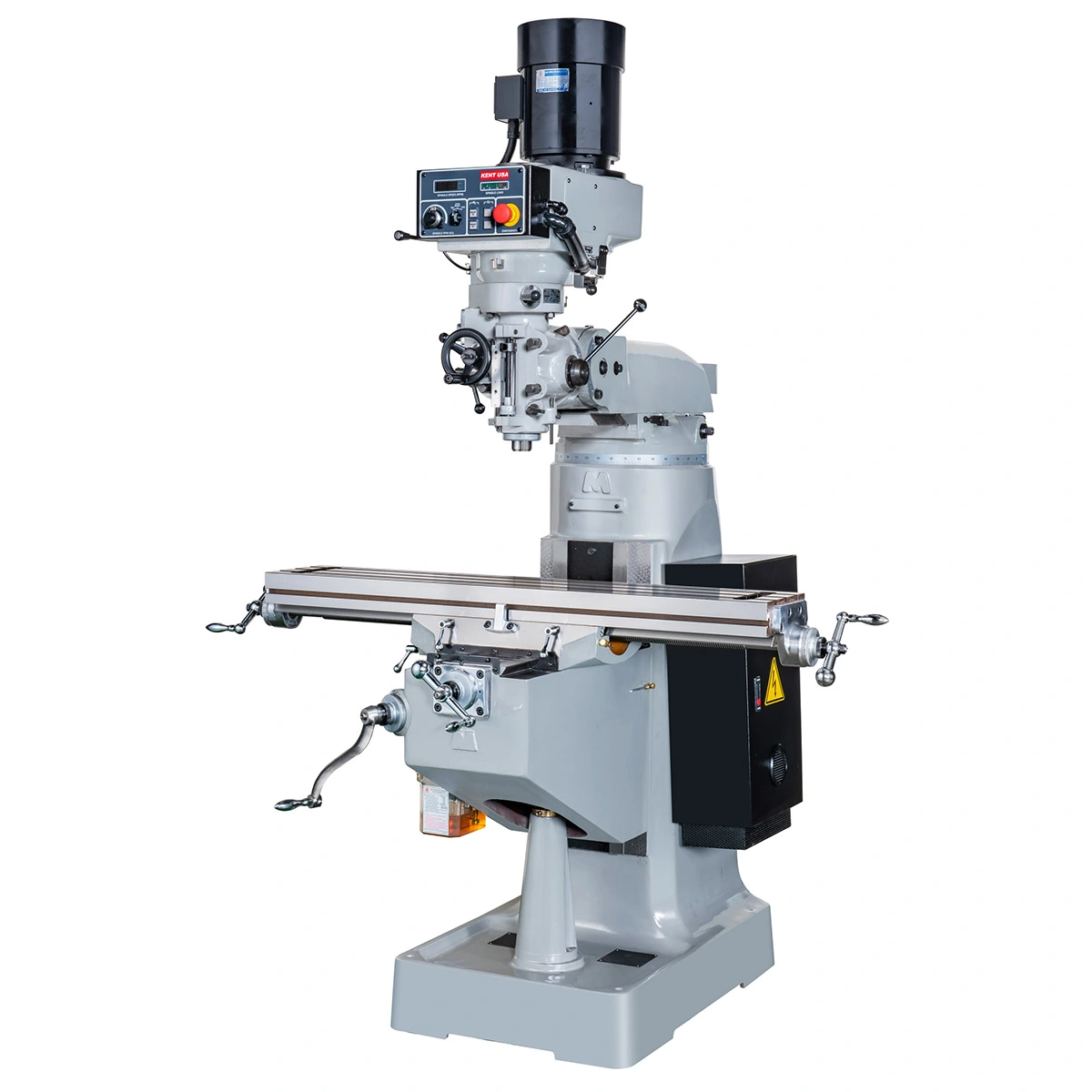

9″ x 49″ New Kent Vertical Knee Mill Model KTM-3VSF Optional Accessories:
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.
Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
Table size (WxLxH): 9″ x 49″ (9″ x 42″ Optional)
Table Travel (X Axis): 35″
Saddle Travel (Y Axis): 12″
Knee Trave (Z Axis): 15″
Quill Travel: 5″
Ram Travel: 14.5″
Spindle Motor: 3 HP
Spindle Speed: 50-550-4500 RPM (2-range, Hi/Lo)
Spindle Taper: R-8
Quill Diameter: 3.375″
Quill Feed Rate: 0.0015″ / 0.003″ / 0.006″ in/rev
Drilling Capacity (Manual/Power): 0.75″ / 0.37″ diameter
Boring Capacity: 6″ diameter
Milling Capacity: 2.0 in/min
Maximum Work Load (Center): 750 lbs
Spindle Center to Column: 5″ – 27″
Net Weight: 2550 lbs
Gross Weight: 2650 lbs
Coolant reservoir: 2 gallon
Lubrication tank size: 0.25 gallon
Shipping Dimensions: 72″ x 72″ x 88″ (skid)
Power Requirements: 220 volts, 3 phase, 60 Hz, 10 Amp (optional 440v, requires 5 A) but can also accept 220v, 1-phase power (15A) without a phase converter, ideal for customers with only 1-phase power
