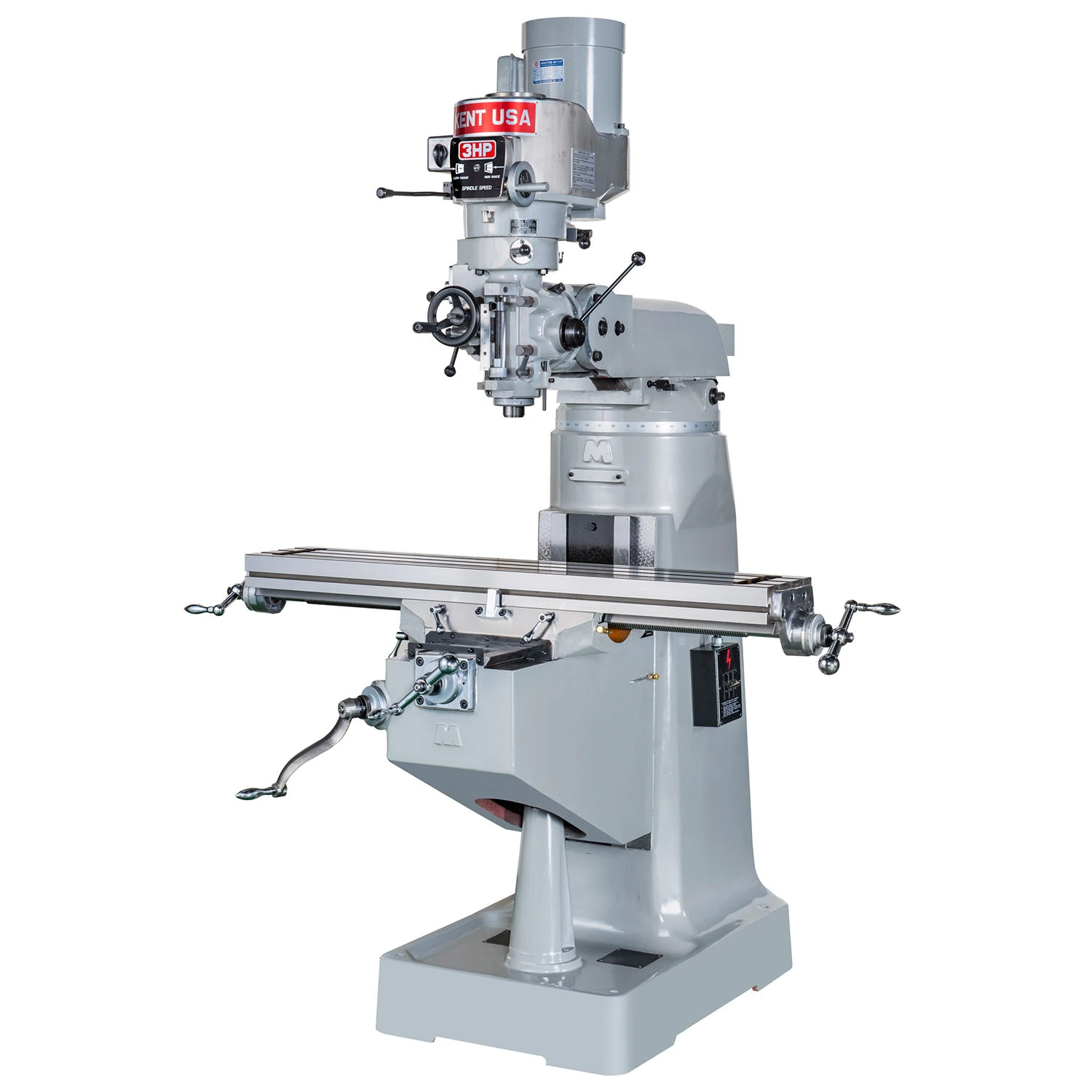

The KENT USA KTM-3VS knee-type milling machine combines proven designs with the latest advance technology in engineering and over 35 years of manufacturing excellence. Reliability and performance makes these a favorite among demanding job shops and in-house tool rooms. With best in class features and superior built quality, the KTM-3VS knee mills are the new industry standard in high performance vertical turret knee-type milling machines.
3 HP spindle motor, 60 – 500 – 4200 rpm variable speed milling head
9” x 49” table, hardened and ground for long-lasting performance
T-slots ground parallel to table ways for easy and precise set ups
Precision ground lead screws with backlash compensating double nut
Meehanite casting with built-in coolant reservoir in machine base
Table Size: 9″ x 49″
Table Travel (X-Axis): 35″ (28″ on 9″ x 42″)
Saddle Travel (Y-Axis): 12″
Knee Travel (Z-Axis): 15″
Quill Travel: 5″
Ram Travel: 14.5″
Table Load Capacity: 750 lbs (distributed)
T-Slots (Number x width): 3″ x 5/8″
Spindle motor: 3HP
Spindle Taper: R-8 (NMTB-30 Option available)
Spindle speed range: 60-500-4200 rpm (2 range High-low)
Quill diameter: 3.375″
Quill power feed: 0.0015″ / 0.003″ / 0.006″
Drilling capacity (manual): ø 0.75″
Drilling capacity (power): ø 0.37″
Boring capacity: ø 6″
Milling capacity: 2.0 in3
Head rotation (manual): +/- 90˚ rotation, +/- 45˚ tilt
Machine power required: 220V or 440V / 3Phs / 10a (5A on 440v)
Coolant reservoir: 2 Gallon
Lubrication tank size: 0.25 gallon
Machine weight: 2,450 lbs.
Shipping weight: 2,550 lbs.
Packing dimensions: 72″ x 72″ x 88″ Skid
