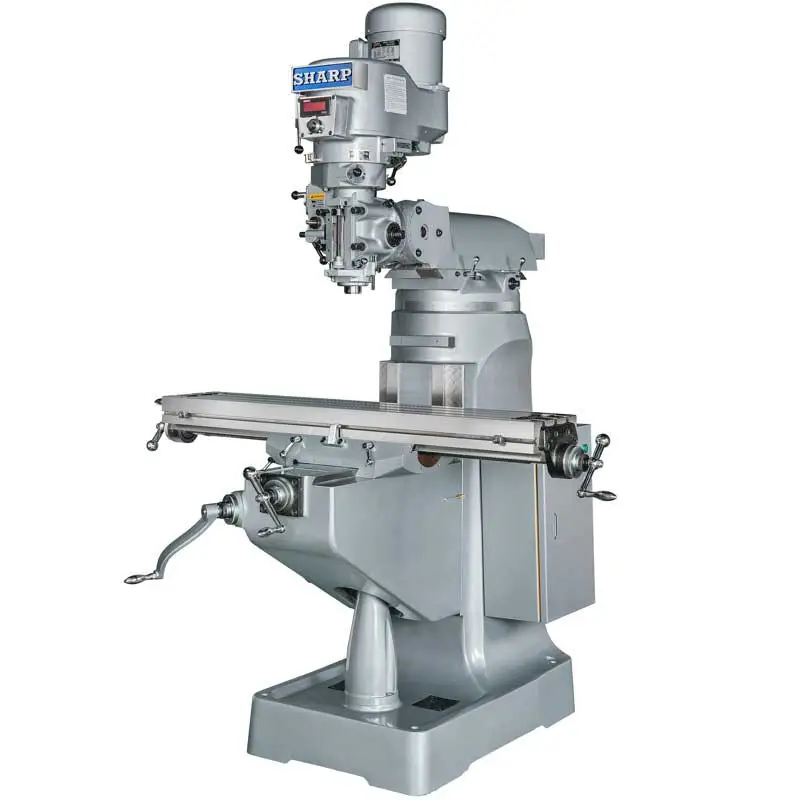

THE 9″ x 49″ New Sharp Vertical Mill Model LMV-49-DVS Is equipped with Digital Variable Speed for easy change of spindle speeds.
The model has many unique features compared with most of the similar machines on the market. The quill is CNC ground to a mirror finish and chromed to fit the housing resulting in close to jig bore accuracy for quill downfeed. Tapered gibs installed on the ways allows easy adjustment for long term usage. The feed handles are designed to spin free which eliminates the friction between the operator’s hand and the feed handle. The bottom of the saddle, instead of the top of the knee ways, which rides on the knee is hand scraped for better oil retention and prevent dirt and chips from embedded in the knee ways.
3HP
Digital Variable Speed Drive
R-8 spindle
Meehanite Casting
Chromed Ways
Self-Lubricating Motor Shaft Extends Pulley Life
Abec-7 Super Precision Spindle Bearings
One Shot Lube System
Hard-Chromed Ways and Gibbs
Precision Ground and Flaked Table
Unique Double Nut Backlash System
Cutler Hammer On/Off Switch
Front and Rear Way Covers
One Shot Lube Systems (X, Y, Z Axes)
Tool Kit Includes: Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of 6 Allen Wrenches, Philip Screwdriver, Flat Head Screwdriver, Oil Can, Grease Gun, Rear Way Cover Bracket, Pin of Indicator, Can of Paint
Wired 220V or 440V. Please Specify. (Note: 440V requires additional transformer, 220V single phase is available)
Table Size: 9″ x 49″
T-slots (No., Size): 3 slots, 5/8″
Table Travel X Longitudinal: 36.6″
Table Travel Y Cross: 12″
Quill Travel Z Vertical: 5″
Ram Travel: 12″
Knee Travel: 16″
Spindle Center to Column: 6.75″ – 18.5″
Spindle Nose to Table Top: 2.125″ – 18″
Spindle Motor: 3 HP
Spindle Nose Taper: R8
Digital Variable Speed Drive (DVS): 65-4500 rmp
Quill Feed (Inch/Rev) (3 speeds): 0.0015, 0.003, 0.006″
Head Swivel Angle: 360°
Head Tilt Angle (L/R): 45°
Head Tilt Angle (Up/Down): 45°
Floor Area (W x D x H): 7′ x 6.5′ x 6.75′
Approximate Weight: 2,100 lbs.
Power Consumption (220V): 3 KVA/8 amps
Power Consumption (440V): 3 KVA/4 amps
