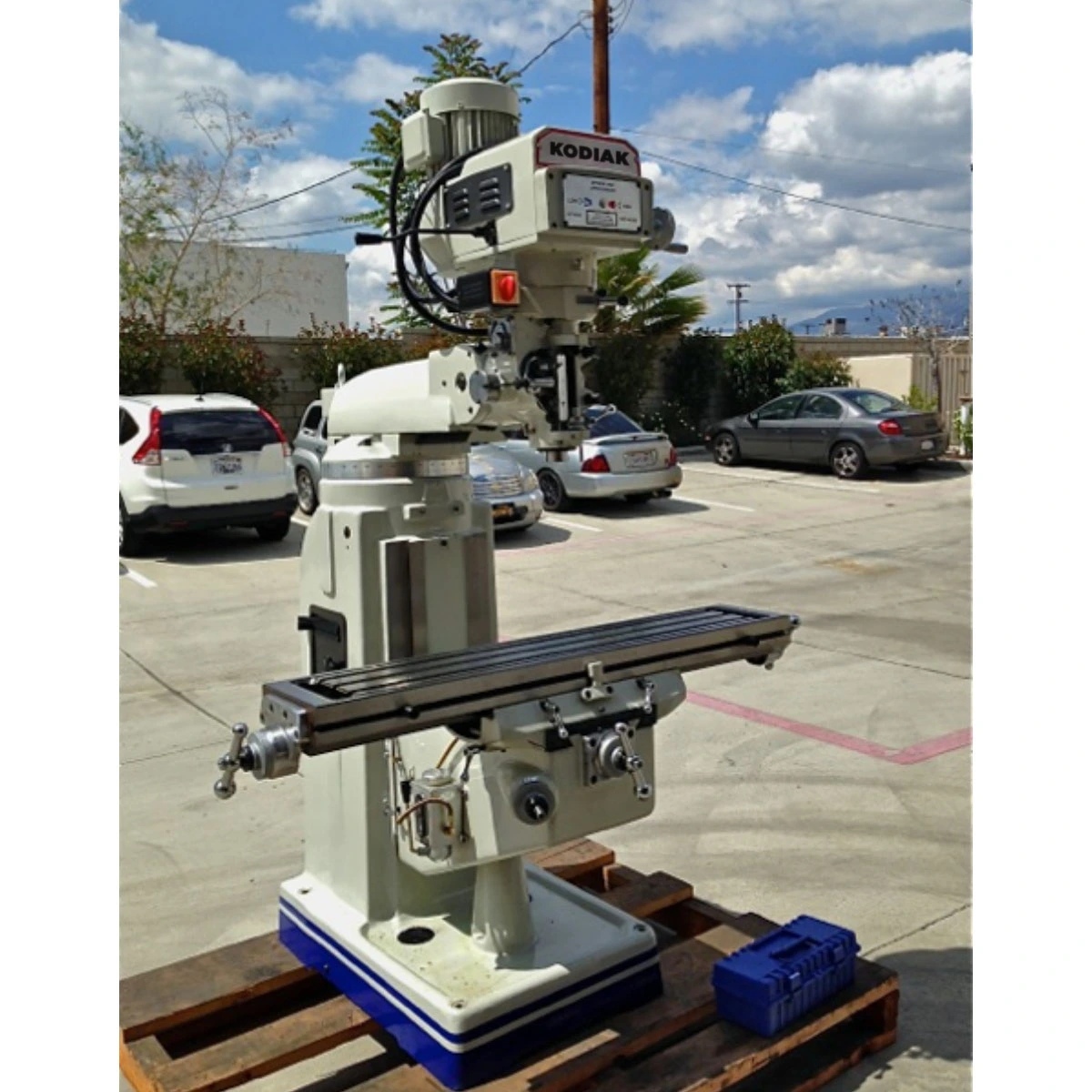

The new Kodiak Vertical Mill for sale at Worldwide Machine Tool. These new Kodiak milling machines are durable and affordable and backed by parts and service from Worldwide Machine Tool. 1 year parts warranty.
Super strong column and base
Low maintenance machines
Ram equipped w/ double locks
Large diameter quill is chromed
One-piece quill pinion and shaft
Spindle head is internally cooled
Hardened & ground ways
High precision leadscrews
Satin chrome finished dials
Built-in coolant column base
Double knee and table locks
Heavy-duty motor 3 phase or 1 phase
High precision class 7 spindle bearings
Three-stage power downfeed w/ auto stop
Tool box 1 set
Front Chip Guard 1 pc
Rear Chip Guard 1 pc
Draw Bar 1 pc
One Shot Lube
6 inch Kurt Vise … $650
2 Axis Kodiak DRO … $950
2 Axis Newall DRO … $1950
Set of R-8 Collets … $200
X Axis Power Feed … $795
Y Axis Power Feed … $795
Z Axis Power Feed … $795
Power Draw Bar … $950
Longitudinal Travel: 33″
Cross Travel: 13″
Knee Travel: 16″
Quill Travel: 5″
Spindle Motor: 3 HP – 220V – 3PHS
Spindle Speeds: 60-4300 rpm
Spindle Taper: R-8
Machine Weight: 2600 Lbs
SKU: 1243
