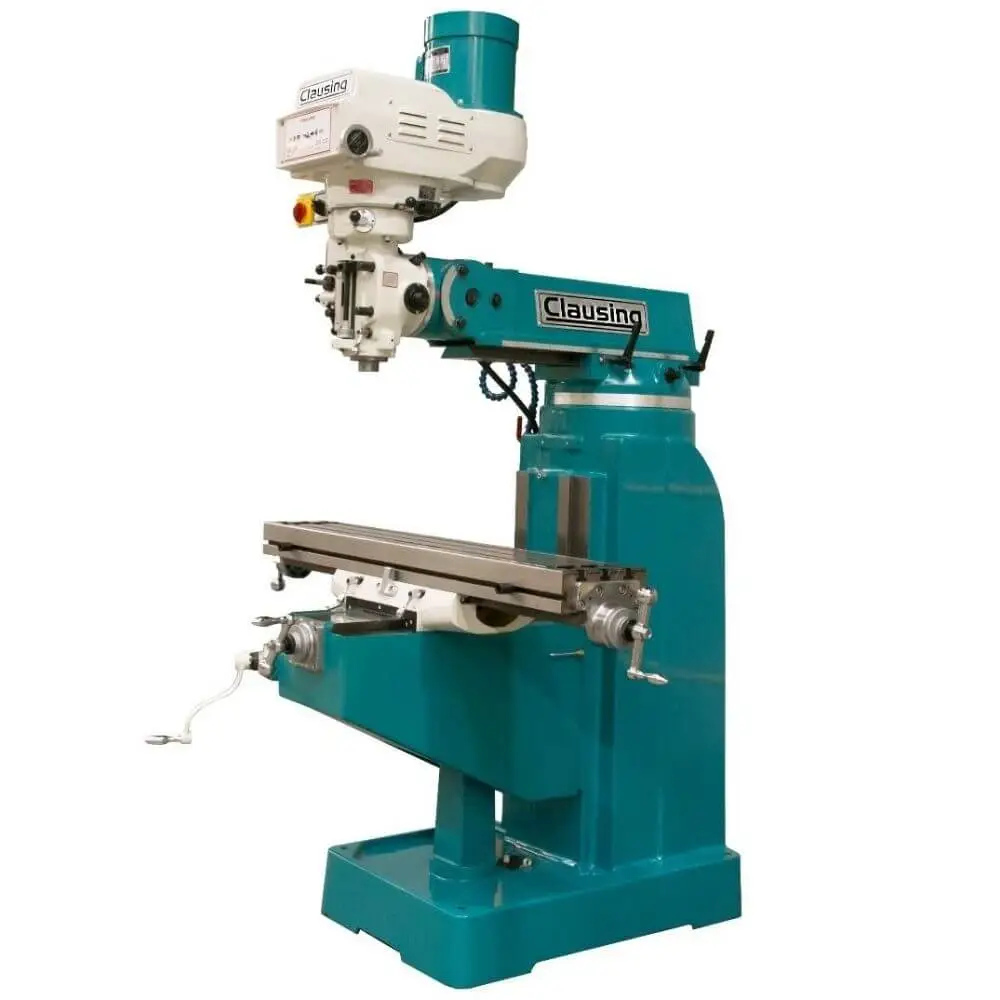

Meehanite castings for superior rigidity and wear resistance
Hardened & ground, X, Y & Z ways
X/Y ways coated with Turcite B
Column & knee ways covers
T-slots are ground to provide reference edge for positioning your workplace
Hardened & ground table surface
Hardened & ground spindle
Chromed & ground quill
Chromed X, Y, & Z leadscrews
Double nut leadscrew for backlash compensation
ABEC 7/CP4 spindle bearings
Coolant system w/pump & switch
Flexible segmented coolant nozzle
Chromed Y screw covers and one-piece wipers
7/16”-20 Imperial drawbar R8, or 1/2”-20 Imperial drawbar NMTB30
3 Hp AC motor
Manual drilling capacity 3/4″ taping capacity 0.393″
Spindle braking motor on EVS series
Variable speed drive
Articulating head for compound angles
Worm gear angular positioning of head in two directions
Lever-operated manual rapid quill movement
Handwheel for fine quill feed
Adjustable automatic feed disengagement for quill feed in both directions
Micrometer depth stop
Reversing switch for clockwise or counter clockwise operation
R8 or NMTB 30
Spindle brake (hand operated)
One-shot lubrication
Leveling bolts and pads
Tool kit, test and accuracy chart
Operations manual/parts list
Full electrics w/ disconnect (EVS series only)
2VS series standard 208/230 or 460 3 phase (other voltages require a transformer or special order)
2EVS series standard 230 volt 3 phase (other voltages require a transformer or special order)
Table size: 9″ x 49″
Table size – 42 model: 9″ x 42″
No. of T-slots: 3
T-slot width: 5/8″
T-slot center distance: 2.05″
Table ways: Dovetail
Knee ways: Dovetail
Column ways: Dovetail
X longitudinal (reduced w/ pwr feed): 38.18″
X longitudinal 42″ table (reduced w/ pwr feed): 27.9″
Y cross (reduced w/ pwr feed): 14.17″
Knee: 13.97″
Ram: 18.50″
Spindle motor R8 & 30 / 40 taper: 3 Hp/5 Hp
Amp. Draw 208v: 7
Amp. Draw 230v: 7
Amp. Draw 460v: 5
Variable spindle speed (mechanical/EVS): RPM: 60-4300/70-4200
Low range: 60-500/70-500
High range: 550-4300/550-4200
Main spindle taper: R8 or NMTB30 or NMTB40
Spindle travel: 5″
Quill feed (in/rev.): 0.0015/0.0031/0.006
Quill diameter: 3.38″
Column turret diameter: 14.96″
Knee width: 11.42″
Column bearing length: 16.54″
Saddle/table bearing length: 19.88″
Ram/turret bearing length: 16.14″
Ram length: 28.94″
Table load: 700 lbs.
Net weight: 2,100 lbs.
Height: 89″
Depth: 66″
Width: 99″
Table to spindle: 3.15″ – 17.12″
45º inward: 0 – 19.68″
Spindle ǿ to column: 4.53″ – 23.03″
45º outward: 6.89″ – 29.39″
Head tilt: 90º right & left
