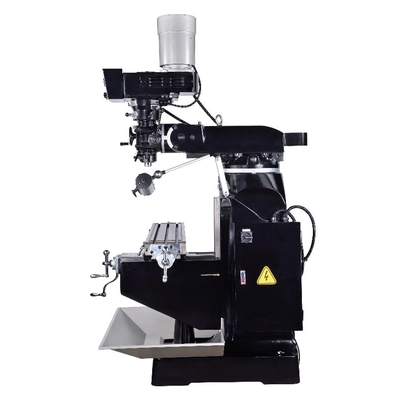

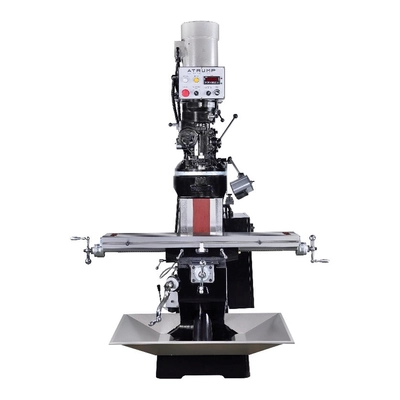

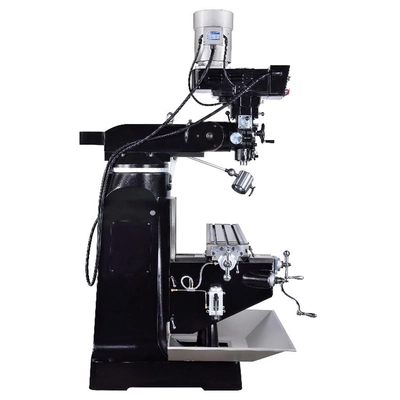

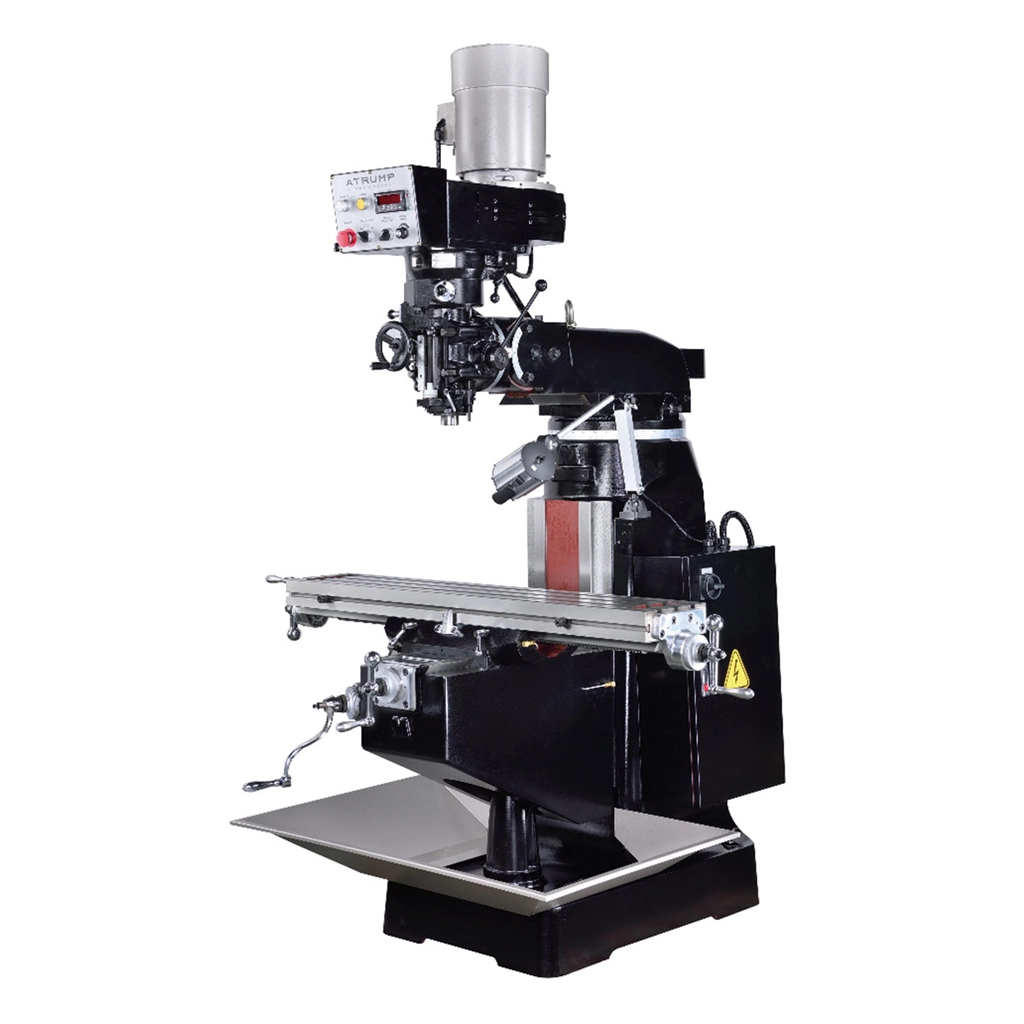

9″ x 49″ New Atrump Manual Knee Mill EVS Head Model KE2
The 9″ x 49″ New Atrump Mill EVS Head Model KE2 for sale at Worldwide Machine Tool is an exceptional vertical milling machine for every shop. Every Atrump mill for sale is built on the Bridgeport milling machine platform. The KE2 Atrump vertical milling machine is built in Taiwan using high quality Meehanite castings. The Atrump milling machine is warehoused in our United States shipping facilities. Each Atrump vertical milling machine is built with Class 7 spindle bearings, hardened and ground ways with Turcite coatings. The Atrump Machinery milling machine has served as a reliable milling machine for over 35 years. From one man job shops to large manufacturing plants, tool rooms, tool and die shops.
Atrump Machinery builds each knee mill to last and stands behind each machine with exceptional quality Atrump mill parts and service. Call Worldwide Machine Tool if you are in need of Atrump mill parts at 614-255-9000 Mon-Fri 8a.m. – 5p.m. . Search our site for Atrump mill reviews from happy owners that purchased a new high quality KE2 Atrump mill from Worldwide Machine Tool. Worldwide Machine Tool is your premier Atrump milling machine dealer. Call 614-255-9000 to order a base KE2 Atrump mill for sale or add additional optional parts and accessories to customize your new Atrump milling machine today.
9″ x 49″ New Atrump Manual Knee Mill EVS Head Model KE2 Specifications:
9″ x 49″ New Atrump Manual Knee Mill EVS Head Model KE2 Features:
Meehanite castings mainframe with annealed relieved for long term reliability.
X Y Z hardened & ground with Turcite-B coating guide way
Electronic Vari-Speed Head 3HP spindle motor, R8 spindle taper
Digital output 70-5000rpm spindle speed with Hi/Lo gears.
Precision APEC class 7 spindle bearing to ensure spindle run out within 0.0002inch
C7 double nut precision acme lead screws for high accuracy and long lasting
Chip rubber cover (front & rear)
Built in LED work light.
One shot lubrication system
Easy tap function
9″ x 49″ New Atrump Manual Knee Mill EVS Head Model KE2 Standard Accessories:
Electronic variable speed head
Huge digital spindle speed display
EMG button for safety

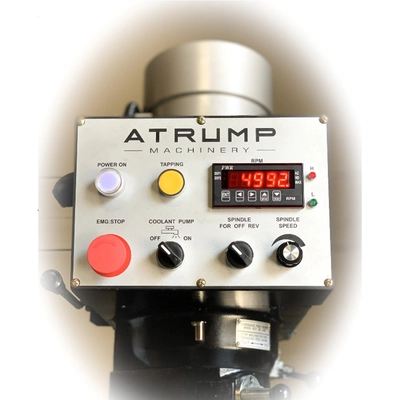

Control panel
LED work light
Way cover
Easy tap function
Two power outlets (110V)
Tools & tool box
One shoot lubrication
Operation manual
9″ x 49″ New Atrump Manual Knee Mill EVS Head Model KE2 Optional Accessories:
Table: 9” x 49”
X travel: 30″
Y travel: 12″
Z travel: 16″
Quill travel: 5″
Quill diameter: 3.38″
Ram travel: 12″
Spindle nose to table top: 1.96″ to 17.9″
Table load capacity: 660 lbs
T-slot (3): 0.62″ x 2.55″
Spindle taper: R8 / NT30
Spindle speed: 70 to 5,000 rpm with Hi/Lo gears
Transmission spindle-motor: Timing belt
Head swivel (right/left): ±90°
Head tilting angle (up/down): ±45°
Spindle motor/Max power: 3HP
Coolant pump (optional): 1/8 HP
Lubrication pump: One shot
Floor plan: 64″ x 75″ x 85″
Net weight: 2,640 lbs
Power requirement: 4 KVA 3 Phase 208V-230V (Max)
Type of oil for oil way: Mobil Vectra #2
