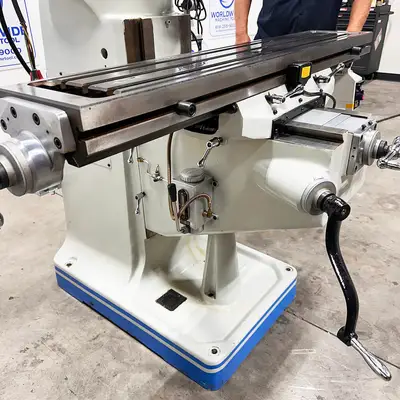

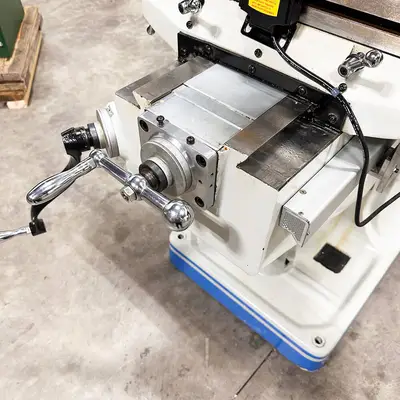

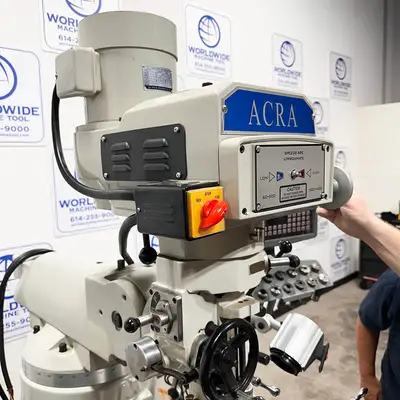

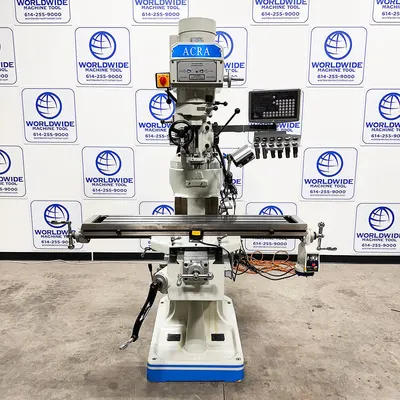

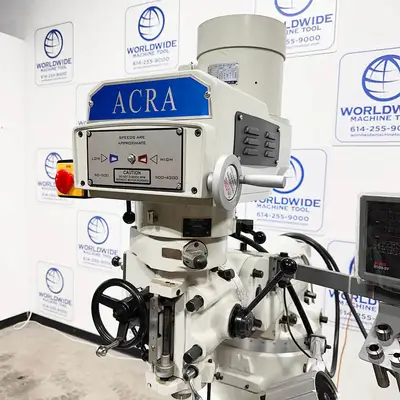

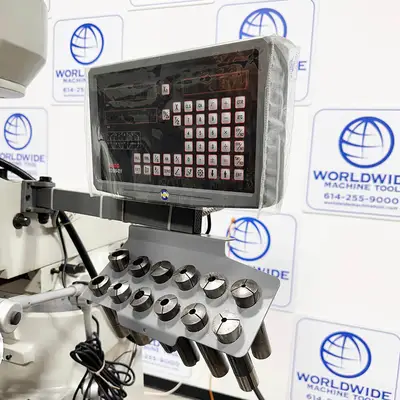

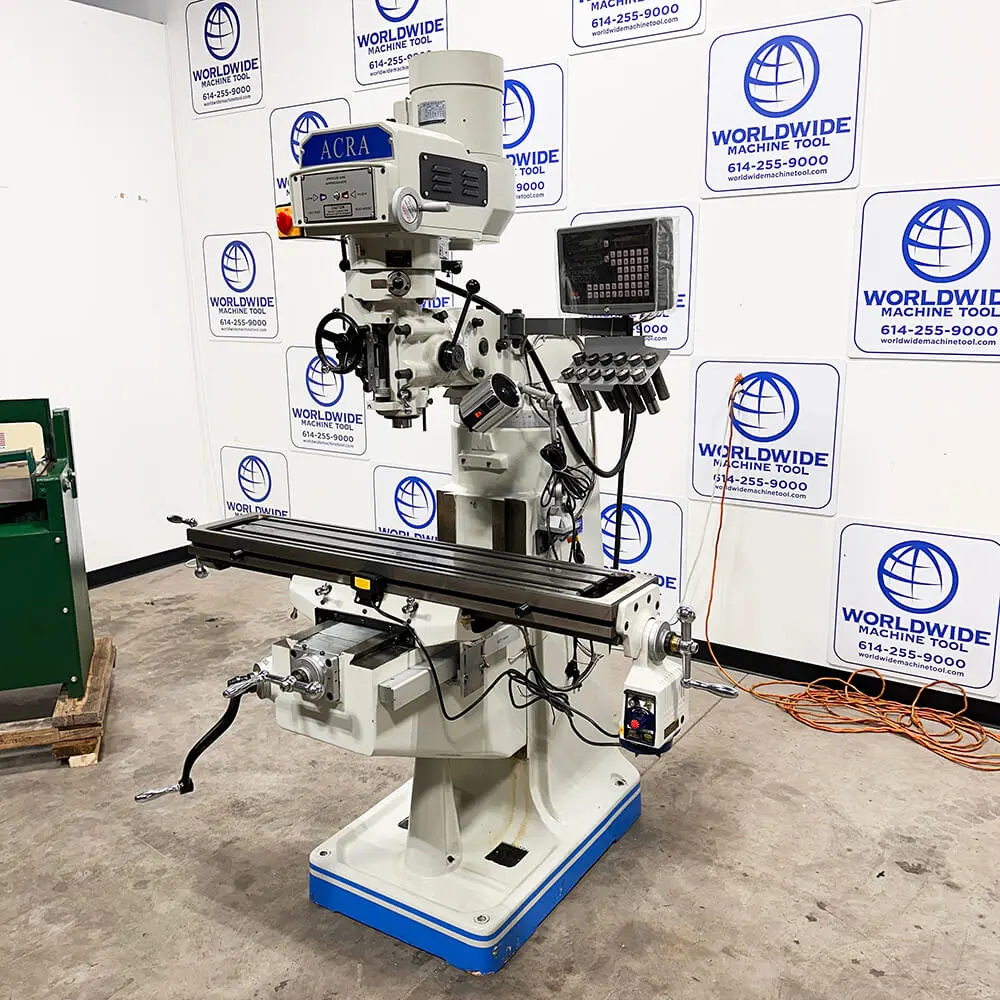

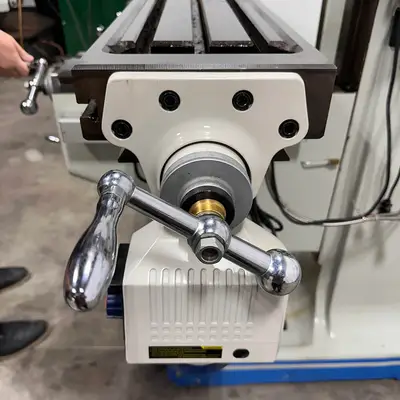

9″ x 49″ Used Acra Vertical Milling Machine
  • 9″ x 49″ Used Acra Vertical Milling Machine
  • 9″ x 49″ Used Acra Vertical Milling Machine
  • 9″ x 49″ Used Acra Vertical Milling Machine
  • 9″ x 49″ Used Acra Vertical Milling Machine
  • 9″ x 49″ Used Acra Vertical Milling Machine
  • 9″ x 49″ Used Acra Vertical Milling Machine
  • 9″ x 49″ Used Acra Vertical Milling Machine
  • 9″ x 49″ Used Acra Vertical Milling Machine

9″ x 49″ Used Acra Vertical Milling Machine

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Vertical Mills
Manufacturer:
BRIDGEPORT
Stock #:
42955
Description

9″ x 49″ Used Acra Vertical Milling Machine Model 2V Specifications:

9″ x 49″ Used Acra Vertical Milling Machine Model 2V Standard Equipment:
One-piece draw bar for Spindle
Precision lead screws on X, Y axis
Front & back dust cover
Turcite-B on X/Y axis
One-shot Lubrication System
Safety handles on X/Y/Z axis
Work lamp
Hand tools & box
Manual & Parts list
Machine base, knee and table are made by MEEHANITE cast iron construction.
Slideways are hardened and precision ground, and the X,Y axis coated with Turcite-B.
Milling head can be tilted 90 degrees either right or left side.
The X, Y, Z axis are dovetail way.
The X, Y, Z axis are transmitted by precision feed lead screw with double nut.

Specifications

Working Surface: 9″ x 49″
Longitudinal Travel (X-axis): 35-1/2″
Cross Travel (Y-axis): 12-1/2″
Knee Travel (Z axis): 16″
Overarm Travel: 16-1/4″”
T-Slots: 3 with 2-1/2″ centers, 5/8″ each
Spindle Speeds: 60-4,200 RPM
Spindle Feeds: .0015/.0003/.0006 inch/rev.
Spindle Travel: 5″
Spindle to Table: 2-3/4″ to 17-1/2″
Weight of Work Piece, max: 550 lbs
Spindle Motor: 2 HP 230V or 460V AC only
Machine, Net Weight: 2,550 lbs
