USB + Ethernet compatible (RS-232)
Simplified navigation that eliminates multiple menu screens
Upgrades available for all legacy MillPwr models
12.1” high resolution display
Available offline software
Estimated runtime feature
Expanded tool/datum offsets
Windows off-line programming station
Filename filter search
Tree file manager navigation
Auto save (program)
9,999 steps program size limit
Extended support plus G80 series drill cycles
Block form solid model 3D graphics
Hard keys & pop-up menus for program step navigation
Circle (Pocket, frame, ring, helix)
Tool library
Multiple datum’s fixture offsets (99)
Line/3D shaded graphic view
Linear & bidirectional non-linear error compensation

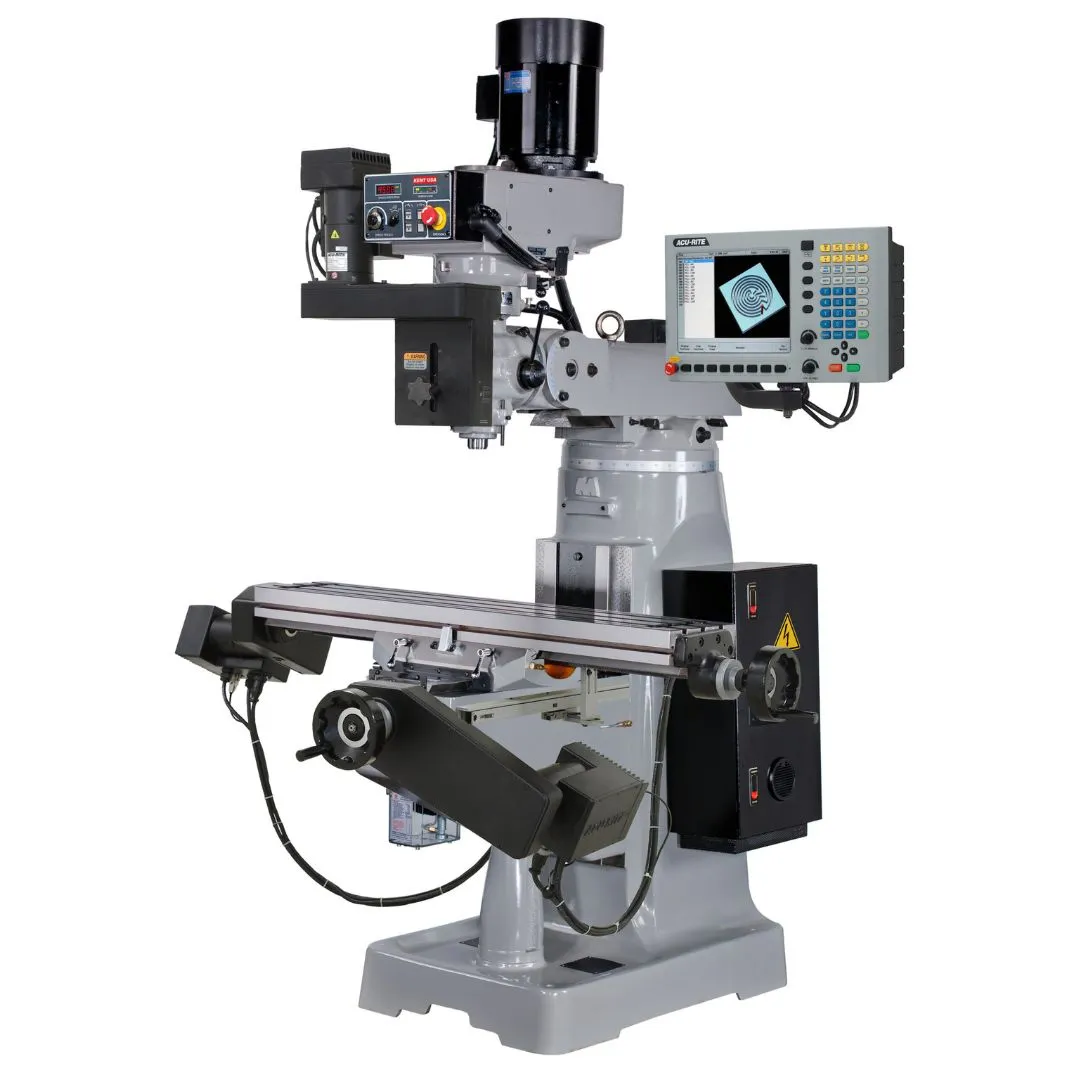

Optional spindle speed override adjustment now standard on all KENT USA Acu-Rite MillPwr CNC knee mills
3 HP spindle motor with AC-Frequency drive, digital RPM display, load meter, and automatic spindle direction reversal when switching between high and low speed gear ranges. Can run on either single phase or 3 phase power
10” x 50” (Opt. 10″ x 54″) hardened and ground table top
Table, saddle, and knee with hardened and ground dovetail ways
Precision ground leadscrews with backlash compensating double nut
Precision bored and ground milling head, with super precision ABEC-7 bearings
Meehanite castings, with built in coolant reservoir in machine base
Centralized one-shot lubrication, with metered check-valves
Easy conversational programming, DRO-mode allows for full manual operations with built-in 3 axis absolute encoder glass scales
Engraving feature and DXF file import capability, USB drive and 12.1” high resolution flat panel color LCD display
Position-Trac scale has absolute encoder technology. This allows MillPwr G2 control to find machine “home” position in any axis by moving only up to 2” of travel. Once homed, work piece datum is established and the control can repeat a position even after being powered off. As an added benefit, software limits can be set to safely keep machine travel within machine travel limits without the need of additional hardware limit switches and home switches.
The quick-release knob allows the quill to be quickly release from the Z-axis drive mechanism so that the operator can use the quill/handle freely in manual DRO mode. The Z-axis position readout is maintained to allow Z-position reading/display while in this manual DRO mode.
MillPwr G2 is manufactured in the United States at Acu-Rite’s ISO-9001 registered facility. MillPwr G2 is backed by a comprehensive 1-year warranty.
*Please note: Installed options may require a deposit; which is non-cancelable and non-refundable.
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.
Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
Table size (WxLxH): 10″ x 50″ (10″ x 54″ Optional)
Table Travel (X Axis): 32″
Saddle Travel (Y Axis): 14″
Knee Trave (Z Axis): 15″
Quill Travel: 4″
Ram Travel: 22″
Spindle Motor: 3 HP
Spindle Speed: AC Frequency Drive Head 60-550-4500 RPM
Spindle Taper: R-8
Quill Diameter: 3.375″
Quill Feed Rate: 0.0015″ / 0.003″ / 0.006″ in/rev
Drilling Capacity (Manual/Power): 0.75″ / 0.37″ diameter
Boring Capacity: 6″ diameter
Milling Capacity: 2.0 in³/min
Maximum Work Load (Center): 850 lbs
Spindle Center to Column: 5″ – 27″
Net Weight: 3100 lbs
Gross Weight: 3300 lbs
Shipping Dimensions: 72″ x 72″ (skid)
Power Requirements: 220v, 3 phase, 60 Hz, 10 Amp (optional 440v power requires 5A) but can also accept 220v, 1-phase power (15A) without a phase converter, ideal for customers with only 1-phase power
