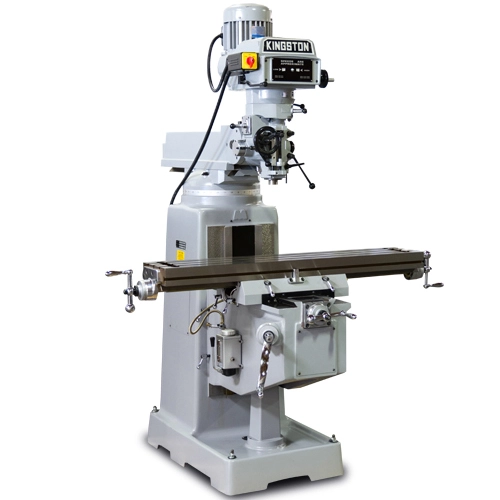

The New Kingston Vertical Mill Model KMT 6V brings Kingston’s commitment to quality to a precision milling machine. Turcite-B, which coats the sliding surfaces of the X- and Y-axis for optimal performance, and Meehanite casting make these mills ready to tackle all types of projects. The spindle contains a Class 7 precision bearing and a maximum runout within .0002 inches, with spindle speeds up to 4200 RPM. The knee and table ways are hardened and ground, while a heavy-duty saddle support runs the full width of the table for extra stability. The New Kingston Vertical Mill Model KMT 6V features a 5HP motor and an NT#40 spindle nose; Kingston’s rugged design and sturdy head housing ensure this well-built machine will last for years.
10″ x 54″ New Kingston Vertical Mill Model KMT 6V Features:
Main Motor 5HP, 220V only, 3 Phase, 60 Cycle Main
NT#40 Spindle Nose
Class 7 Precision Spindle Bearing
Variable speed change (60-4200 RPM)
Chromed Quill
3 Quill Feeds Up & Down w/Auto Stops
Max Spindle Accuracy within .0002 (.0051mm)
10″ x 54″ Hardened & Ground Table
Square Ways in Both Y & Z Directions
Hardened & Ground Back Gear & Clutch
Double Nuts Backlash Eliminator On X+Y Axes
Double Lock for Table and Knee
Adjusting Tool & Tool Box
Way Covers
KMT 6V Special Features:
X & Y-Axis Clutch-Type Auto-Feeds Controlled by Yaskawa Frequency Inverter Drive (180 Parameters)
1HP Elevating Motor (Auto-Knee)
Coolant Pump & System
Convenient Multi-Function Control Box w/E-Stop & Special Features Listed Above
10″ x 54″ Table
Auto-Lubrication System (2 Switches)
Coolant & Chip Pan
Halogen Work Light
Simultaneous X & Z or Y & Z-Axis Movement Possible
A& T Mechanical Power Lock Draw Bar. $1,050
Newall DP-700 Digital Readout System 36″ x16″ (X,Y) $2,100
Newall DP-700 Digital Readout System 36″ X 16″ X 16″ (X, Y, Z – Knee Only) $2,800
Installation for 2-Axis DRO Net $500
Installation for 3-Axis DRO. Net $700
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.
Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
Table: 10″ x 54″
Travel (X x Y): 34.4″ x 14.5″
Travel (Z) Quill: 5.0″
Travel (Z) Knee: 16.0″
Quill Diameter: 4.1″
Spindle Motor: 5 HP
Spindle Taper: NT#40
Spindle Variable Speed (RPM): 60 – 4200
Spindle Power Feed Rate (3 Speeds): 0.003″/Rev, 0.0015″/Rev, 0.006″/Rev
X & Y Feeds (RPM): 0-1730
Z-Knee Feed Rate (RPM): 0-560
X/Y/Z Motors: 1/2, 1/2, 1HP
Overall Height: 93.7″
Overall Depth: 60.3″
Overall Width: 74.8″
Spindle to Table: 2.8″-20.5″
Spindle to Column: 5.9″-24.8″
Table to Floor: 37.8″-54.1″
Weight: 3,740 lbs
