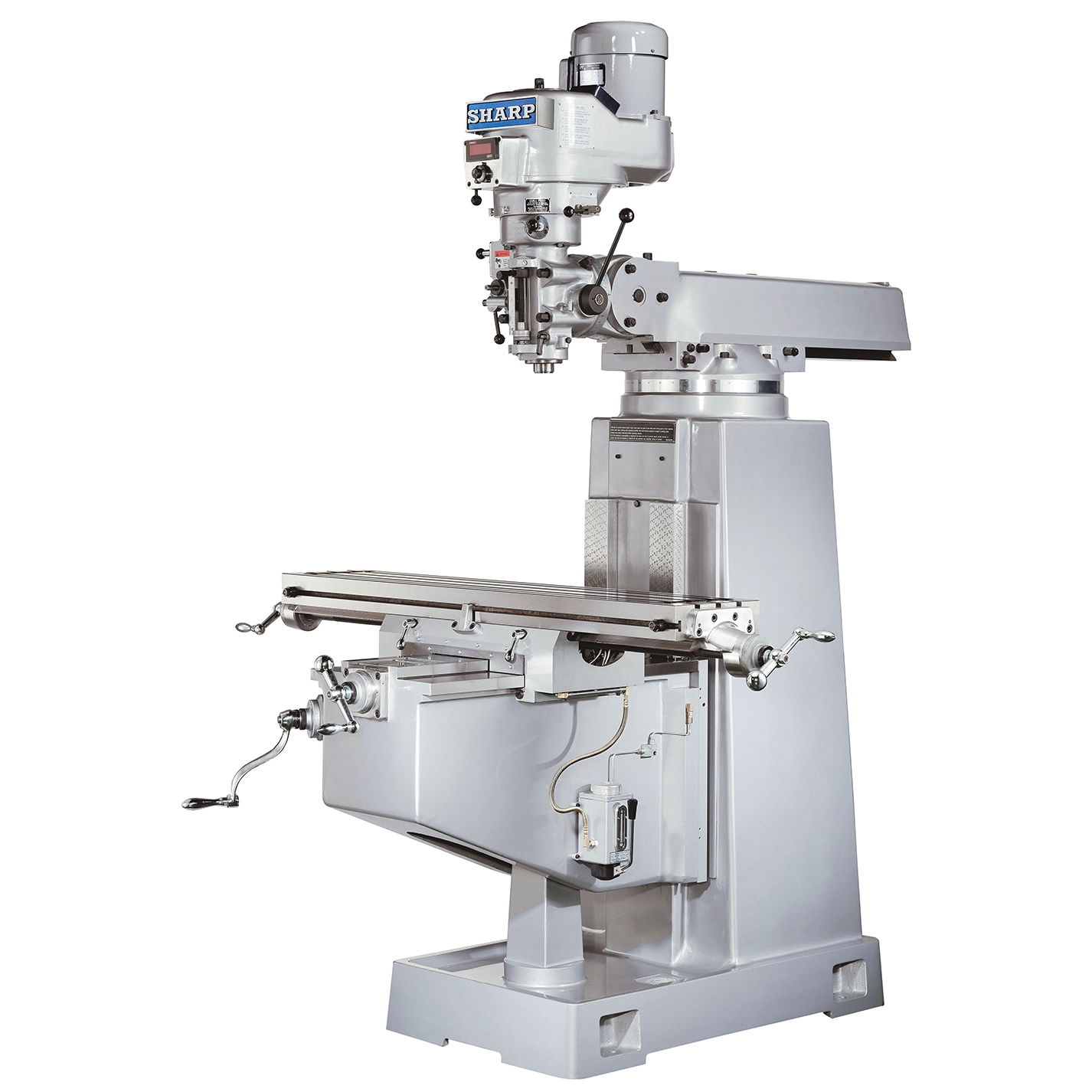

One shot lubrication system
Hard-Chromed Ways
Front and Rear Rubber Way Covers
Tool Box with Tools
Wired 220V or 440V
3 HP motor R-8 spindle
Hardened & ground box ways on column and saddle
Variable speed drive (60-4500 rpm)
Digital variable speed (60-4500 rpm) (Model TMV-DVS)
Dual cooling fans for TMV, single fan for TMV-DVS
Meehanite castings
Self-lube motor shaft
Super precision spindle bearings
Turcite Coated saddle ways
ISO 9002 certified: Quality up to world industry standards.
MEEHANITE casting: Highest grade of casting possible.
A pair of high out-put fans: Keep head and 3 HP motor cool, to run jobs for extended periods without damaging the motor, belts, and bearing.
A pair of precision ABEC-7 angular contact bearings to support spindle: The quill is ground and chromed to fit the housing. This ensures a spindle run out of .0002″ TIR.
Motor shaft and vari-drive pulleys are dynamically balanced, then chromed for a flawless fit, ground ribs on the inside diameter: For smooth speed changes.
Motor shaft has an oil channel in the center that is fed by a grease fitting on the lower end: To keep vari-drive pulley moving smoothly on the shaft.
The mill uses a roller bearing for the lower support of the shaft: This ensures proper loading, support and alignment. It also prevents the shaft from being distorted by the tension of the belt; for quiet, accurate operation at any speed for years and years.
One shot lubrication system: For lubrication of ways and lead screws (X, Y and Z axes).
Hand scraped saddle and knee: For better oil retention; it avoids having chips and dirt embedded in the knee and damage the sliding surface.
Oil groove are milled: For maximum lubrication on all wear areas.
Table and saddle backlash is controlled by double nut design: Keeps lead screw in contact with bronze nuts at all times to keep backlash at .0008″ within 20″.
Table and saddle are mounted with thrust bearings that are pre-loaded: Eliminating end play for precisely controlled lateral movement.
Patented knuckle design uses 6 T-Bolts, 3 per side, securing them from the outside: This method locks the head securely, resulting in better accuracy and performance.
Table Size: 10 x 54 in.
T-Slots (No., Size, Pitch): 3, 5/8, 2.5 in
Table Travel: X Longitudinal: 39 in.
Tabe Travel: Y Cross: 16.3
Quill Travel: Z Vertical: 5 in.
Ram Travel: 18.5 in.
Knee Travel: Vertical: 15.3 in.
Spindle Center to Column: 9.8 – 28.3 in.
Spindle Nose to Table Top: 5.375 x 16.9 in.
Spindle Nose Taper: R-8
Spindle Variable Speed Range: 60-4500 rpm
Spindle Motor (220V/440V): 3 HP
Quill Feed (Inch/Min) (3 speeds): .0015, .003, .006 in.
Quill Diameter: 3.375 in.
Head Tilt Angle (L/R): 90°
Head Tilt Angle (Up/Down): 45°
Floor Area (w x d x h): 9.83 x 6.25 x 7.64 ft.
Approximate Weight: 3,000 lbs
Power Consumption (220V): 3 KVA/8 amps
Power Consumption (440V): 3 KVA/4 amps
