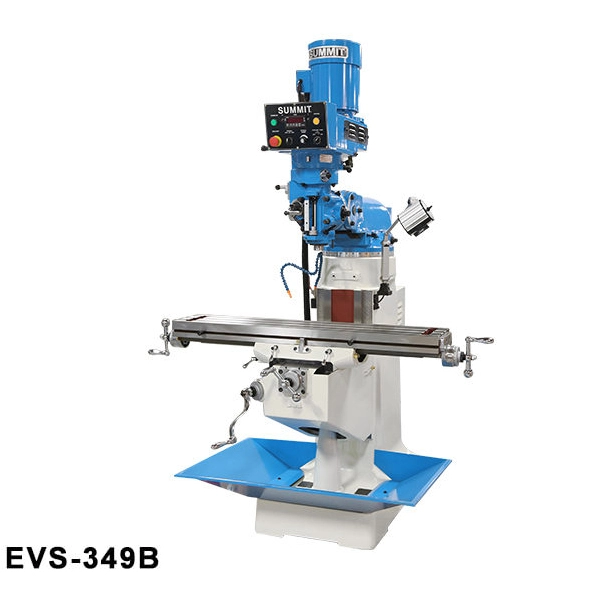

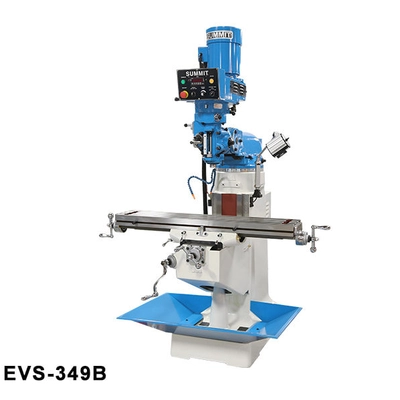

The rugged Summit® EVS Series Vertical Mills are engineered and manufactured from the finest components with the operator in mind. The newly designed control is centralized for ease of operation, has a larger display, and a power tapping mode. Movement of the head to various angles is easily obtained from the operator’s position. The Summit EVS Series Vertical Mills are versatile enough to effectively serve small one-man machine shops, job shops, R&D departments, tool rooms and maintenance shops, as well as large, sophisticated manufacturing operations.
Inverter duty, high-energy – high-efficiency motors for lower utility costs, save up to 35%
Fewer moving parts in the head for less maintenance and down time
Cogged drive belt to prevent belt slippage and extend tool life
Centrally located controls for ease of operation
Immediate response speed control (0-full speed in a 4 sec.)
Full range RPM selection. Tweak up or down to prevent chatter and prolong tool life
Electronic inverter controlled braking for reduced set-up time
Turcite-B inserted guideways for extended machine life
Complete electrics with low voltage controls for safer machine operation
Yaskawa compact AC inverter drive
Fan cooled electrical enclosure
Heavy “Meehanite” cast iron construction for excellent damping
3HP – 40 Taper – Horizontal Spindle (EVS-560B)
Huge box ways on knee (EVS-354B & EVS-550)
Power raise on knee (EVS 550B)
Power draw bar (EVS 550B)
One shot lubrication
R-8 collet set (EVS-349B & EVS-354B)
Draw bar
Way covers
Operation & parts manual
Built-in coolant system
Halogen work light
Clamping kit
Service wrenches & tool box
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.
Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
Motor size (2 speeds): 3 HP
Spindle speeds – number: Inf. variable
Spindle speeds – range: 0-4300
Spindle taper: R-8
Spindle travel: 5″
Spindle feed range: .0015/.003/.006 IPR
Head movement (side to side): +/- 90°
Head movement (front to back): +/- 45°
Table size (W x L x H): 9″ x 49″ x 3-1/8″
Table feed (longitudinal): 31″
Table feed (cross): 13″
Max weight of work piece: 850 lbs.
Rotation of over arm: 360°
Overarm adjustment: 15″
Spindle nose to table: 0″ – 17.5″
Weight: 2,200 lbs.
