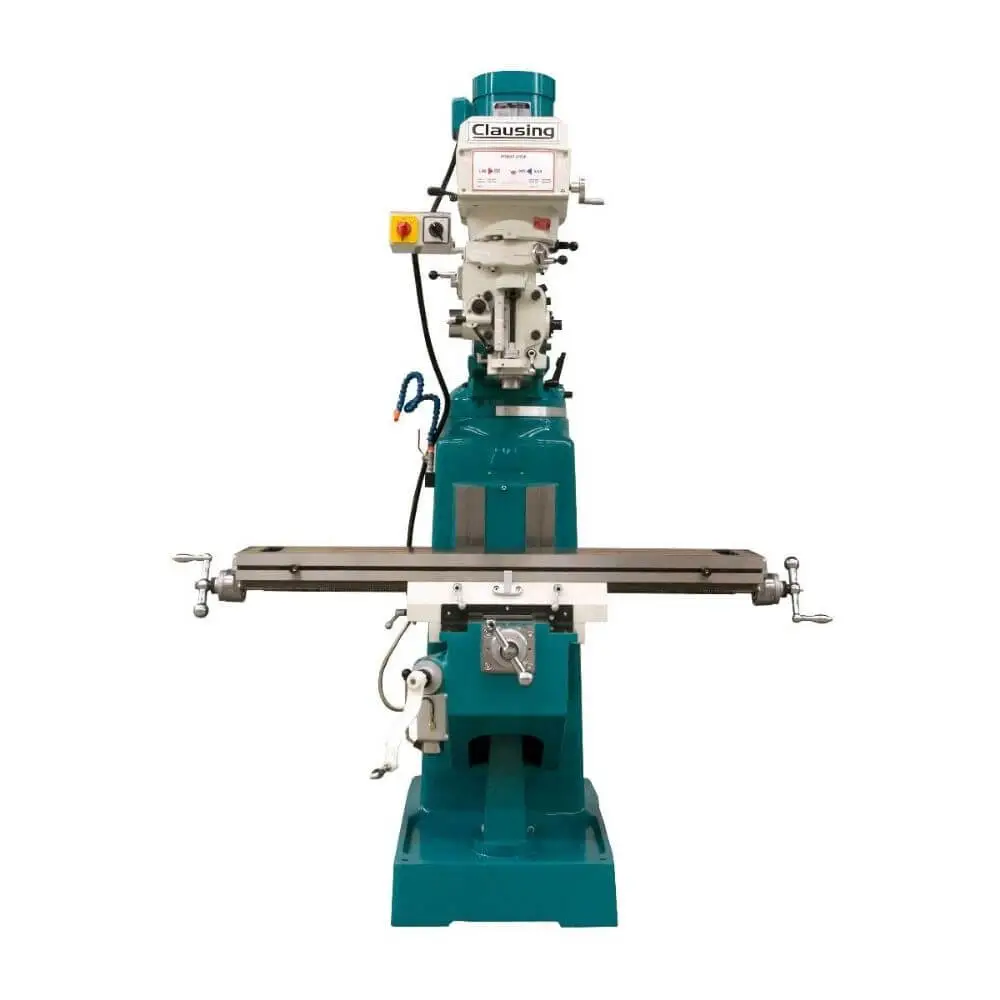

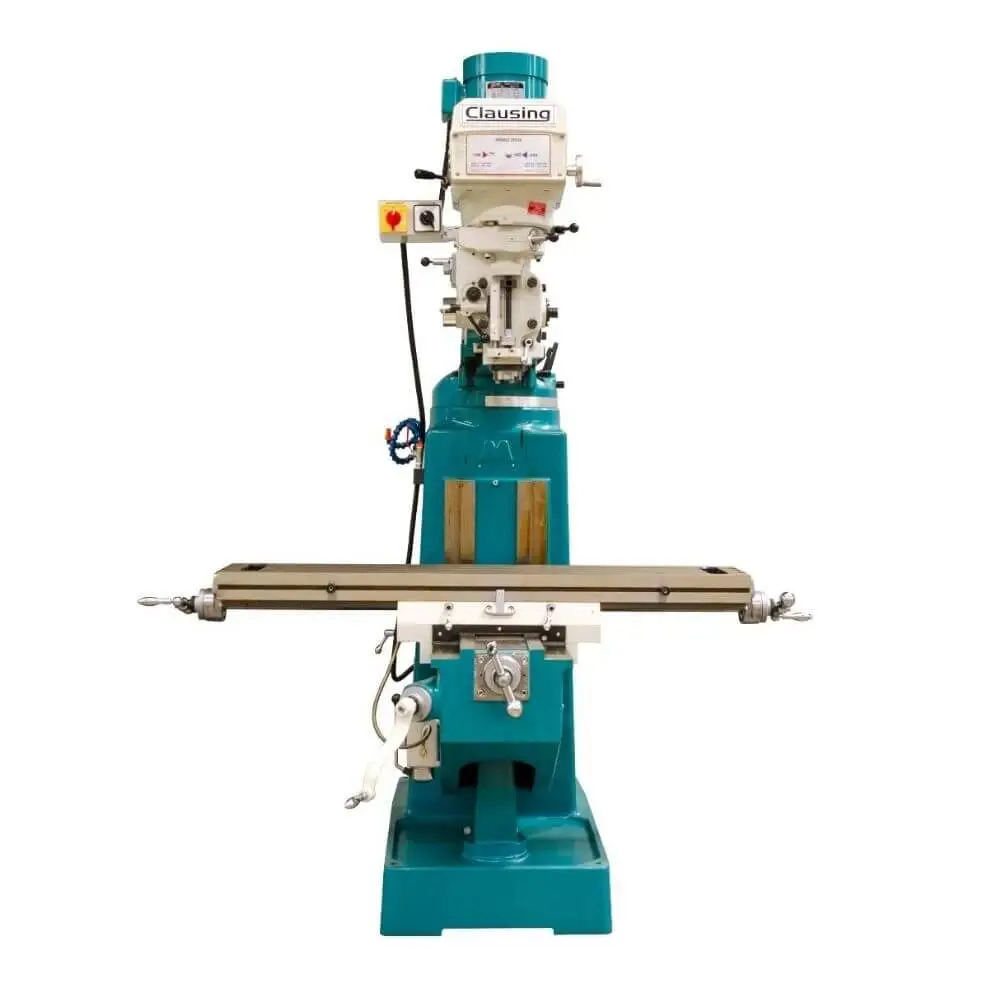

Meehanite castings for superior rigidity and wear resistance
Hardened & ground, X, Y & Z ways
X/Y ways coated with Turcite B
Column & knee ways covers
T-slots are ground to provide reference edge for positioning your workplace
Hardened & ground table surface
Hardened & ground spindle
Chromed & ground quill
Chromed X, Y, & Z leadscrews
Double nut leadscrew for backlash compensation
ABEC 7/CP4 spindle bearings
Coolant system w/pump & switch
Flexible segmented coolant nozzle
Chromed Y screw covers and one-piece wipers
7/16”-20 Imperial drawbar R8, or 1/2”-20 Imperial drawbar NMTB30, 5/8″-11 Imperial drawbar NMTB40
3 Hp AC motor, 40 taper is 5 Hp AC motor
Variable speed drive
Articulating head for compound angles
Worm gear angular positioning of head in two directions
Lever-operated manual rapid quill movement
Handwheel for fine quill feed
Adjustable automatic feed disengagement for quill feed
Micrometer depth stop
Reversing switch for clockwise or counter clockwise operation
R8 or NMTB 30 or NMTB 40 spindle
Spindle brake (hand operated)
One-shot lubrication
Leveling bolts and pads
Tool kit, test and accuracy chart
Operations manual/parts list
3VS series standard 208/230 or 460 3 phase (other voltages require a transformer or special order)
3EVS series standard 230 volt 3 phase (other voltages require a transformer or special order)
Table size: 10″ x 54″
No. of T-slots: 3
T-slot width: 5/8″
T-slot center distance: 2.48″
Table ways: Dovetail
Knee ways: Square
Column ways: Dovetail
X longitudinal: 39.56″
Y cross: 15.55″
Z knee: 15.55″
Ram: 22.04″
Spindle motor R8 & 30 / 40 taper: 3 Hp/5 Hp
Amp. Draw 208v: 7
Amp. Draw 230v: 7
Amp. Draw 460v: 5
Variable spindle speed rpm: Low range: 75-780
High range: 515-4350
Main spindle taper: R8 or NMTB30 or NMTB40
Spindle travel: 5″
Quill feed (in/rev.): 0.0015/0.0031/0.006
Quill diameter: 3.38″
Column turret diameter: 14.96″
Knee width: 11.42″
Column bearing length: 17.91″
Saddle/table bearing length: 20.28″
Ram/turret bearing length: 17.32″
Ram length: 41.73″
Table load: 880 lbs.
Net weight: 2,985 lbs.
Height: 88″
Depth: 71″
Width: 76″
Table to spindle: 3.94″ – 19.01″
45º inward: 1.57″ – 16.53″
Spindle ǿ to column: 9.45″ – 29.92″
45º outward: 12.20″ – 27.16″
Head tilt: 90º right & left
