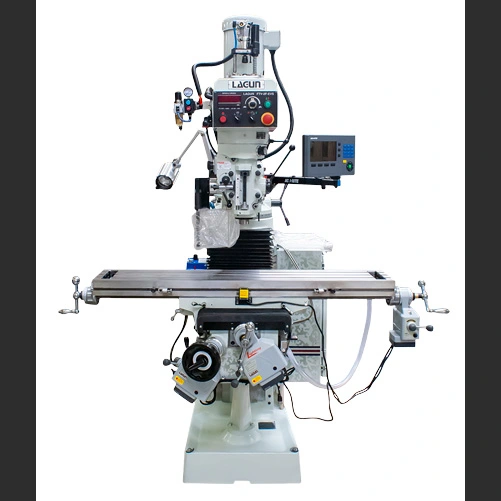

10″ x 55.25″ New Republic Lagun Vertical Mill Model FTV-2FE
the FTV-2FE Vertical Knee Mill with EVS, now available as either Metric or Imperial. We’ve revamped our bestselling FTV2F vertical knee mill from the inside out, with a full EVS conversation, and an all new look.
Equipped with an ultra-powerful, and rigid Electronic Variable Speed (EVS) head that reaches full horsepower at 356 RPM, this brawny milling head produces 74 ft/lbs. (10kgm) of torque. We’ve specially designed these heads with a 2:1 gear ratio from the motor to the spindle. This gear ratio lowers motor speed while increasing torque, allowing it to reach high RPM’s.
Additionally, like our classic FTV-2F, this vertical knee mill comes equipped with induction hardened and ground ways. We’ve also included square ways for rigidity and dovetail ways for accuracy on the knee.
The FTV-2FE’s combination of a 5hp Baldor motor with a heavy duty Yakasawa drive allows it to achieve low-end torque. When combined with a 2:1 gear ratio you have a machine with precision control, less wear on its motor & bearings, more torque at higher RPM’s, and a longer lifespan.
The head is equipped with a “high velocity cooling system”. The generated “air flow” keeps the head at a constant temperature. The fully enclosed head will keep dust from the shop environment out, keeping critical parts and components such as: pulleys, belts, and bearings, etc., clean and dust free. (See detail A)
The new head has two speed ranges, 5 HP constant drive, and infinite variable speeds. (see D) The dynamically balanced head (see B) reaches full horse power over all the speed ranges, (Low 55 to 490 – High 490 to 4,250 RPM) (See E) without the typical losses of EVS systems. This head is capable of reaching 358 ft-lb of torque (See –Graphic HP vs. RPMS) at a mere 55 RPM.
The quill 3 3/8” (85 mm) is hard chromed with a precision ground rack.Special high performance transmission belt are used. The heart of our mechanical infinite variable speed milling head uses the same hi-technology found in the continuously variable transmission of the latest Hybrid automobiles.
Spindle taper is R-8 (optional # 40 NST, #30 NST with four hi-precision, class 7 bearings.
The head assembly can be tilted front-to-back and swiveled right-to-left. Angular settings employ worm and gear.
Ram/head assembly can be easily rotated a full 360° degrees. (See detail
Massive ram features 19″ (483 mm) of bearing length and 22 3/16″ (563 mm) of travel.
The ram design allows use of the optional slotting attachment. The slots are mounted opposite the standard head (with optional kit 149-1140K).
All lead screws are thread rolled and precision ground.
A unique double nut assembly provides backlash adjustment of longitudinal and cross feed screws. Adjustment of this device eliminates backlash due to wear.
Table & saddle locks are conveniently located in front of the machine. Handles are spring loaded to allow repositioning once locked. This advanced design clamps the table to the saddle, but does not push on a gib. As a result, the table will hold its position more accurately.
Spindle Taper R-8 with 4 ea. Class Seven Hi-Precision Bearings
Flood Coolant System
Hardened & Precision Ground Ways
One Shot Lubrication System
Draw Bar
Operators Manual/Parts List
Basic Service Tool Kit
3/60/220/440 Volt Electrics
Base Chip Pan
Halogen Worklight
Way Covers
