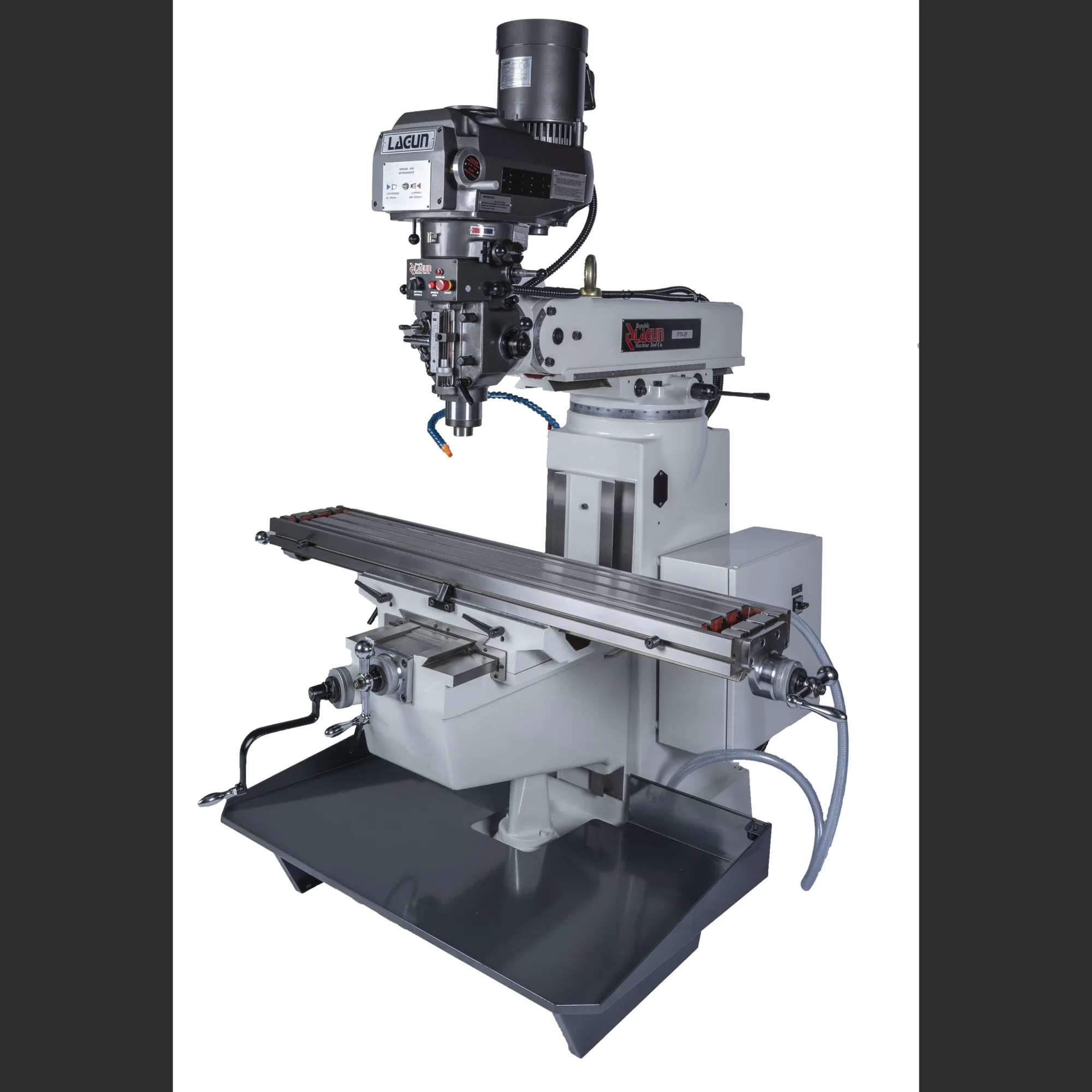

10″ x 55.25″ New Republic Lagun Vertical Mill Model FTV-2F
The backbone of Republic Lagun Machine Tool is the notable vertical knee mill model Lagun FTV2F. This mill features induction hardened and ground ways. This process is more consistent and precise than flame hardening and does not score or wear off like chrome. Our Lagun Mill features square ways for rigidity and dovetail ways for accuracy on the knee. No other machine has this feature. The vertical knee mill also consists of an extra wide saddle (23”) with Turcite to ensure smooth, non-stick and precise travel for the cross and table movement. A constant 5 HP motorized head with high velocity cooling system keeps the head at a constant temperature. In other words, Lagun’s Vertical Knee Mill, FTV-2F features surpasses its competition in capacity.
The head is equipped with a “high velocity cooling system”. The generated “air flow” keeps the head at a constant temperature. The fully enclosed head will keep dust from the shop environment out, keeping critical parts and components such as: pulleys, belts, and bearings, etc., clean and dust free. (See detail A)
The new head has two speed ranges, 5 HP constant drive, and infinite variable speeds. (see D) The dynamically balanced head (see B) reaches full horse power over all the speed ranges, (Low 55 to 490 – High 490 to 4,250 RPM) (See E) without the typical losses of EVS systems. This head is capable of reaching 358 ft-lb of torque (See –Graphic HP vs. RPMS) at a mere 55 RPM.
The quill 3 3/8” (85 mm) is hard chromed with a precision ground rack.Special high performance transmission belt are used. The heart of our mechanical infinite variable speed milling head uses the same hi-technology found in the continuously variable transmission of the latest Hybrid automobiles.
Spindle taper is R-8 (optional # 40 NST, #30 NST with four hi-precision, class 7 bearings.
The head assembly can be tilted front-to-back and swiveled right-to-left. Angular settings employ worm and gear.
Ram/head assembly can be easily rotated a full 360° degrees. (See detail
Massive ram features 19″ (483 mm) of bearing length and 22 3/16″ (563 mm) of travel.
The ram design allows use of the optional slotting attachment. The slots are mounted opposite the standard head (with optional kit 149-1140K).
All lead screws are thread rolled and precision ground.
A unique double nut assembly provides backlash adjustment of longitudinal and cross feed screws. Adjustment of this device eliminates backlash due to wear.
Table & saddle locks are conveniently located in front of the machine. Handles are spring loaded to allow repositioning once locked. This advanced design clamps the table to the saddle, but does not push on a gib. As a result, the table will hold its position more accurately.
Spindle Taper R-8 with 4 ea. Class Seven Hi-Precision Bearings
Flood Coolant System
Hardened & Precision Ground Ways
One Shot Lubrication System
Draw Bar
Operators Manual/Parts List
Basic Service Tool Kit
3/60/220/440 Volt Electrics
Base Chip Pan
Halogen Worklight
Way Covers
