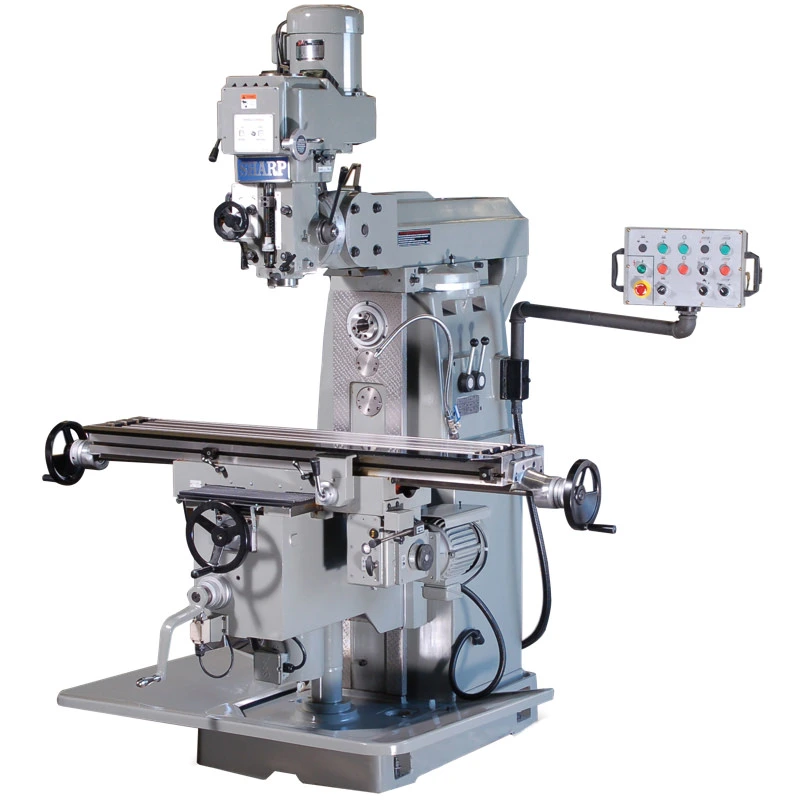

Flood coolant system
Rapid knee traverse
Longitudinal table power feed with rapid traverse
Rubber way cover-rear
Splash pan
1″ diameter horizontal arbor with 2 arbor supports
Wired 220V; application of 440V needs an optional transformer or special order from factory
Tool kit: Machine manual, half-nut wrench, 17m & 19m wrenches, set of 6 Allen wrenches, Phillips-head screwdriver, flat head screw driver, oil can, grease gun, rear way cover bracket, pin for indicator, and can of paint
5 HP, NST #40 vertical spindle
5 HP, NST #40 horizontal spindle
4-way tilt mill head for added versatility
Build-in powerfeed table with rapid traverse
Build-in rapid knee traverse
Heavy duty box-type column
Box-type knee ways, turcide saddle ways
Meehanite casting
Table Working Area: 10″ x 56″
Longitudinal Travel, Cross Travel: 36″, 16-1/2″
Longitudinal Feeds: (12) 7/8-27 ipm
Longitudinal Rapid Traverse: 82-1/2 ipm
Vertical Knee Travel, Ram Travel: 17-1/2″, 18-1/2″
Spindle Motor (vertical): 5 HP
Spindle Motor (horizontal): 5 HP
Vertical Spindle Speeds (inf. var.): 60-4,500 rpm
Spindle Speeds (horizontal): (6) 80, 120, 230, 380, 700, 1350 rpm
Spindle Taper: (2) #40 NST
Power Quill Feeds: (3) 0.0016, 0.003, 0.006 ipr
Quill Travel: 5″
Quill Diameter: 3-1/2″
Turret Swivel: 360°
Head Tilt (front & back): 45°
Head Tilt (left & right): 90°
Spindle Center to Column (min-max): 12-13/16″ – 30-11/16″
Spindle Nose to Table (min-max): 5-5/16″ – 23″
Spindle Center (min-max): 0 – 17-3/8″
Spindle Center to Bottom of Over Arm: 5-1/2″
Spindle Nose to Column: 15/16″
Wiring voltage: 220V / 3 / 60
Net Weight (approx.): 4,200 lbs
Machine Dimensions (L x W x H): 82″ x 75″ x 93″
