Atrump Machinery has been in business for over 35 years and sells approximately 20,000 machines worldwide. The K5V ATrump Mill For Sale is a reliable knee milling machine in the market today. Every K5V Atrump mill for sale is ISO 9001, a universally accepted quality assurance designation. Atrump Machinery milling machines proudly stands behind every product and has a ongoing commitment to provide superior products and service. The Atrump milling machine is warehoused in our United States shipping facilities. Each K5V Atrump vertical milling machine is built with power elevation, variable speed drive and sturdy turcite ways. Atrump Machinery builds each milling machine with exceptional quality Atrump mill parts and service. Call Worldwide Machine Tool if you are in need of Atrump mill parts at 614-255-9000 Mon-Fri 8a.m. – 5p.m. . Search our site for Atrump mill reviews from happy owners that purchased a new high quality K5V Atrump mill from Worldwide Machine Tool. Worldwide Machine Tool is your premier Atrump milling machine dealer. Call 614-255-9000 to order a K5EV Atrump mill for sale or add additional optional parts and accessories to customize your new Atrump milling machine today.

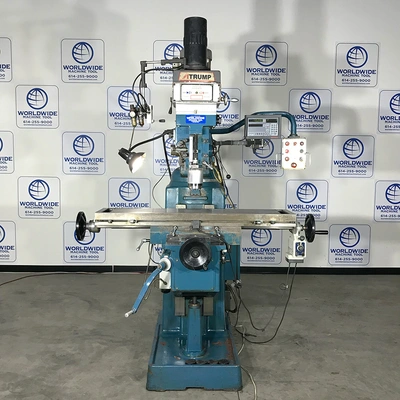

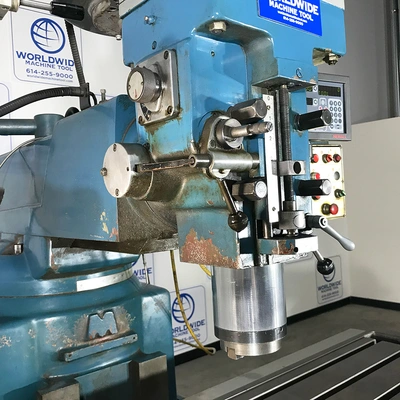

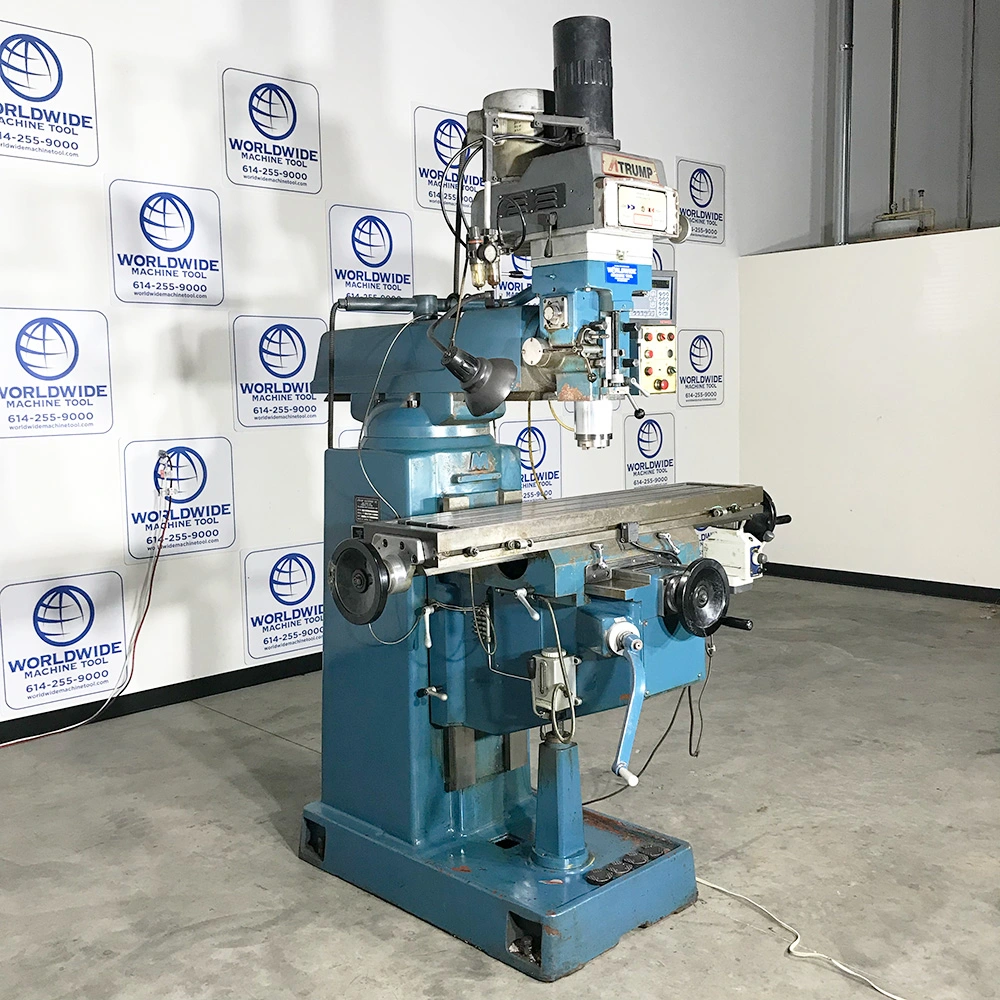

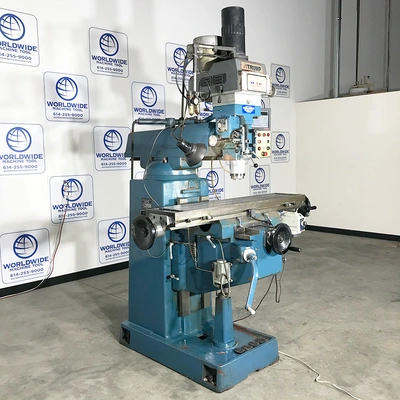

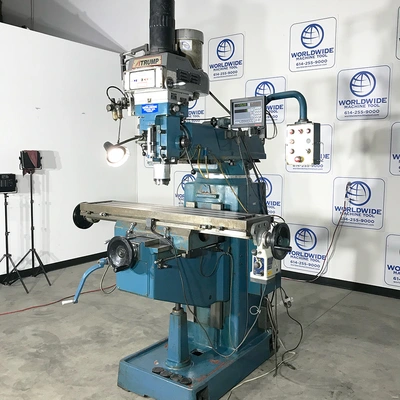

11″ x 52″ Used Atrump Mill Model K5V Specifications:
11″ x 52″ Used Atrump Mill Model K5V Features:
Box square ways
40 Taper Spindle
5HP
Head tilts left and right. No up down knuckle.
Power Draw Bar

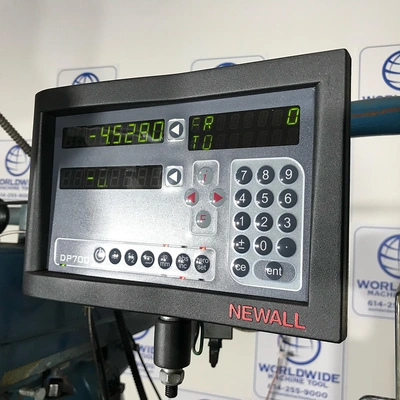

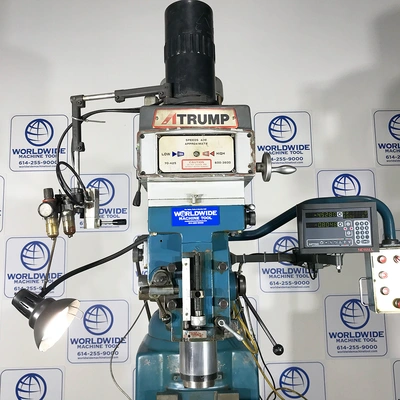

2 Axis Newall DP-700 digital readout
Mist cooling

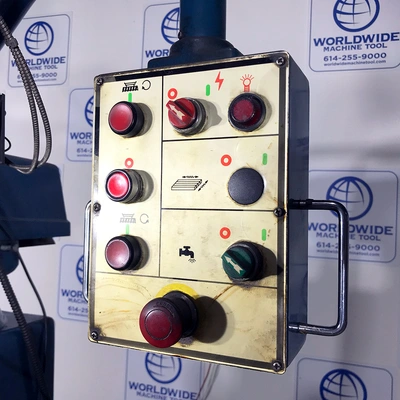

Pendant control
Hardened & groundwith Turcite-B coating guide way
C7 double nut precision acme lead screws for high accuracy and long lasting
FC30 Meehanite casting main frame with annealed & stress relieved for long term reliability
Heavy duty square slideway on Y and Z-axis
Anti rust chrome quill
Precision APEC class7 spindle bearings
Automatic lubrication system
Built-in work light
Fold Away Hand wheel
Longitudinal Travel: 33.5”
Cross Travel: 15.3”
Knee Travel: 16.5″
Quill Travel: 5.5”
Quill diameter: 4.13”
Spindle nose to table top (D): 2 1/4”to21 7/8″
Load capacity: 750lbs
Spindle taper: NST40
Spindle speed: 70 to 4000 rpm with Hi/Lo gear
Spindle center to column front surface: 6 3/8″ to 23 1/4”
Ram Travel: 20”
Spindle motor: 5HP
KVA rating: 18 Amps
Coolant pump (optional): 1/8 Hp
Lubrication pump: Auto
Power requirement: 6.5 KVA, 3 Phase 208V to 230V (Max)
Length x Width x Height: 114” x 71” x 90”
Net weight: 4,300 lbs (1955 kgs)

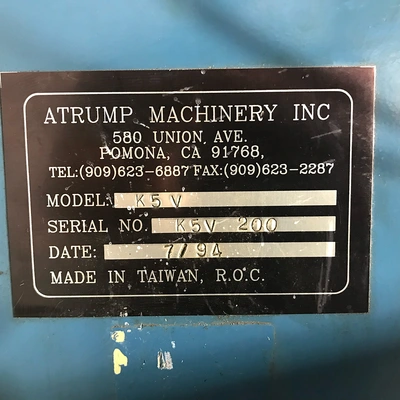

Year: 1994
