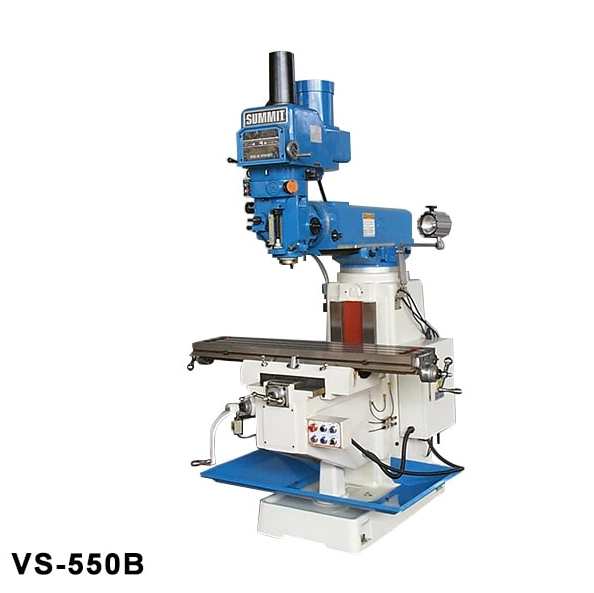

The rugged Summit® V-series Vertical Mills have been engineered and manufactured from the finest components with the operator in mind. All controls of this vertical milling machine are centralized for ease of operation in either hand or power feed mode. Movement of the head to various angle is easily obtained from the operator’s position. The Summit V-series Vertical Mills are versatile enough to effectively serve small one-man machine shops, job shops, R&D departments, tool rooms and maintenance shops, as well as large, sophisticated manufacturing operations.
Heavy Mehanite cast construction
Heavy box saddle
Huge box type ways on knee (VS-350B & VS-550B)
Double table locks
Turcite-B inserted guideways for extended machine life
Complete electrics with low voltage controls for safer machine operations
Way wipers for saddle and column
Hardened & ground ways
Power raise on knee (VS-550B)
Power draw bar (VS-550B)
R-8 collet set (V-242B & VS-350B)
One-shot lubrication
Draw bar
Way covers
Operation & parts manual
Built-in coolant system
Halogen work light
Clamping kit
Service wrenches & tool box
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.
Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
Motor size (2 speeds): 5 HP
Spindle speeds – number: Inf. variable
Spindle speeds – range: 80 – 3500 RPM
Spindle taper: #40
Spindle travel: 5.5″
Spindle feed range: .0015/.003/.006 IPR
Head movement (side to side): +/- 90°
Head movement (front to back): N/A
Table size (W x L x H): 11″ x 52″ x 3-1/8″
Table feed (longitudinal): 32″
Table feed (cross): 16″
Max weight of work piece: 1,100 lbs.
Rotation of over arm: 360°
Over arm adjustment: 24″
Spindle nose to table: 2″ – 22″
Weight: 3,740 lbs.
