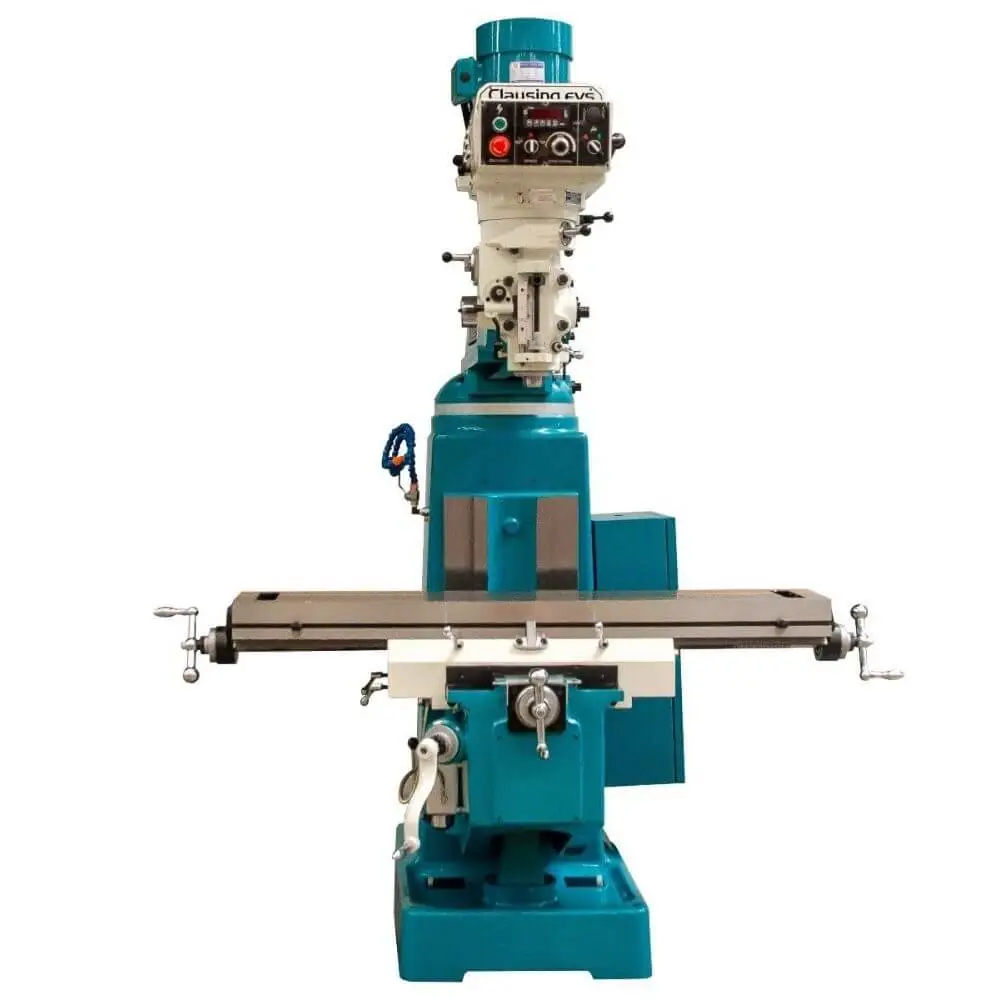

Quick and accurate rpm setting
Convenient, head mounted, easy to use control panel
LCD spindle speed display
Spindle brake with auto power off
Totally enclosed electric’s with Yaskawa A.C. inverter variable speed drive
Carbon steel, hardened and ground, chrome plated quill
Coolant system
Up to 11”x 58” table size
Meehanite castings for superior rigidity and wear resistance
Double nuts for easy backlash adjustment
Up to 38.2” X axis travel, 16” Y axis travel, 17.7” knee travel and 5” quill travel
All ways are hardened and ground with Turcite B coating on X and Y axis ways for wear resistance and smooth operation
Ground ram ways
Column & knee way covers
Hardened and ground table surface
Ground T-slots to provide reference edge for positioning workpiece
Hardened and ground spindle
Hardened, ground and chromed quill
Hardened X & Y axis leadscrew and Nickel Phosphorous treated
Coolant system
Flexible segmented coolant nozzle
5 Hp AC motor
Yaskawa inverter variable speed drive
Square Y & Z axis ways and Dovetail X axis ways
Lever operated manual rapid quill movement
Handwheel for fine quill
Adjustable automatic feed disengagement for quill feed in both directions
Micrometer depth stop
Reversing switch for clockwise or counterclockwise operation
R8 or NMTB30 Spindle
Spindle hand brake with auto power off
One-shot lubrication
Test and accuracy chart
Tools, tool box, operation and parts manuals
Standard 230 3 Phase (other voltages require a transformer)
Table size: 11″ x 58″
Table load: 990 lbs
No. of T-slots: 3
T-slot width: 5/8″
T-slot center distance: 2.48″
X axis, longitudinal: 38.2″
Y axis, cross: 16″
Z axis, knee: 17.7″
Ram travel: 22″
Ram swivel: 360º
Spindle to column: 5.3″ – 27.2″
Spindle nose to table: 1.57″ – 19.2″
Spindle drive motor: 5 Hp
Spindle speed range: 50-5000 rpm
Spindle taper: R8 or NMTB30
Quill travel: 5″
Quill diameter: 3.8″
Quill feed (in/rev): 0.00157″/0.00315″/0.0315″
Head tilt (front or back): 45º
Head tilt (left or right): 90º
Column turret diameter: 16.54″
Knee width: 15.35″
Knee bearing length: 19.69″
Saddle length: 25.59″
Table bearing length: 11.02″
Ram/turret bearing length: 17.72″
Height: 90.6″
Depth w/ram travel: 82.7″
Weight w/table travel: 110″
Width: 74″
Base depth: 44″
Base width: 25″
Spindle to column: 5.3″ – 27.2″
Spindle to table: 1.57″ – 19.2″
Head tilt: 90º right & left
Machine weight: 3,300 lbs
Shipping weight: 3,700 lbs
