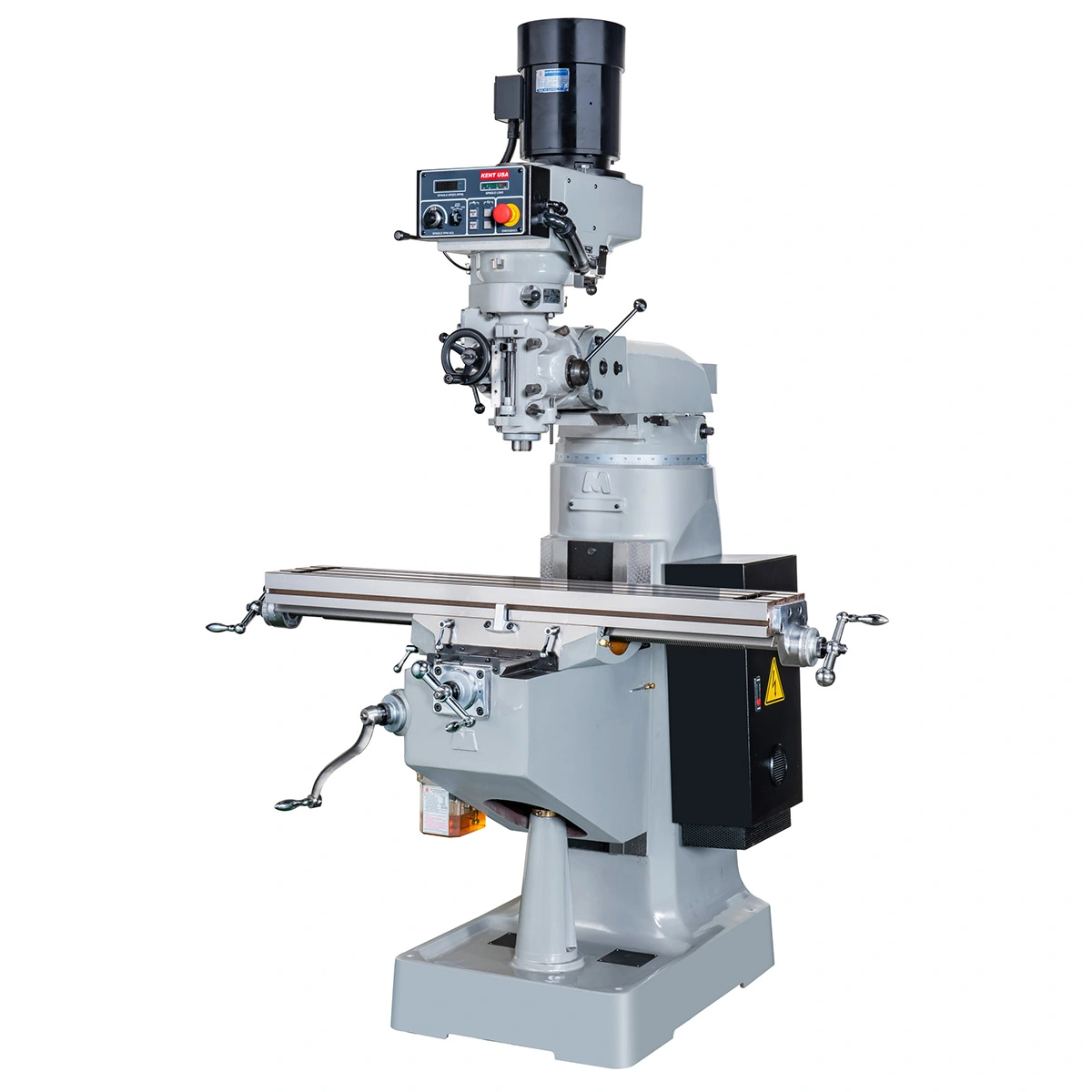

Kent USA Manual Knee Mills are affordable, versatile, and easy to operate. Our manual knee mills are ideal for prototype, tool room and R&D work, as well as part of training programs and everyday machining. You will be able to perform practically any milling operation on a knee mill. This includes angels cuts and drilling and the cutting and drilling of long workpieces. They are also great for fixtures, rework, and one-of-a-kind components. Our KTM-3VKF, KTM-3VSF, KTM-4VKF-E, KTM-5VKF-E and KTM-5AVKF models have spindle motors with AC-Frequency drive. Today, we lead the field with the highest performance AC-Frequency drive head on the market with 0-4500 rpm in under 3 seconds. We use the latest generation of flux-vector inverter drives made in the USA — for performance that is second to none. An optional high-speed head with 6000 rpm spindle is also available. Factory install CNC knee mills are also available for high precision and higher volume production.
3 HP AC-Freq drive head with digital RPM display and analog load meter. Automatic spindle direction reversal when switching between high and low speed gear ranges
60-550-4500 spindle RPM (Hi/Low gear)
Automatic centralized lubrication system with metered check-valves
Single-phase or 3-phase power without the need for a phase converter
Hardened and Ground (Hrc-53) table surface and all slide ways
Solid box ways on saddle and column
Digital Readout System (View Brochure)
Table (X Axis) Power Feed
Saddle (Y Axis) Power Feed
Knee (Z Axis) Power Feed
Air Power Drawbar
Flood Coolant System
Chip Pan
Riser Block
Angle-Lock Vise
Rustlick Coolant
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.
Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
Table size (WxLxH): 12″ x 50″
Table Travel (X Axis): 33″
Saddle Travel (Y Axis): 18″
Knee Travel (Z Axis): 18″
Quill Travel: 5.5″
Ram Travel: 22″
Spindle Motor: 3 HP
Spindle Speed: 50-550-4500 RPM (2 range, Hi/Lo)
Spindle Taper: R-8
Quill Diameter: 3.375″
Quill Feed Rate: 0.0015″ / 0.003″ / 0.006″ in/rev
Drilling Capacity (Manual/Power): 0.75″ / 0.37″ diameter
Boring Capacity: 6″ diameter
Milling Capacity: 2.0 in³/min
Maximum Work Load (Center): 850 lbs
Spindle Center to Column: 5″ – 27″
Net Weight: 3400 lbs
Gross Weight: 3600 lbs
Shipping Dimensions: 72″ x 72″ (skid)
Power Requirements: 220 volts, 3 phase, 60 Hz, 10 Amp (optional 440v, requires 5 amp)
