Power Feed Table and Saddle
Complete Coolant System (includes nozzle, tray & connecting hoses)
Auto Lube System
Front & Rear Rubber Way Cover
Halogen Worklight
Wired 220V or 440V Please Specify
440V Needs Additional Transformer
220V Can Use on Single Phase Power

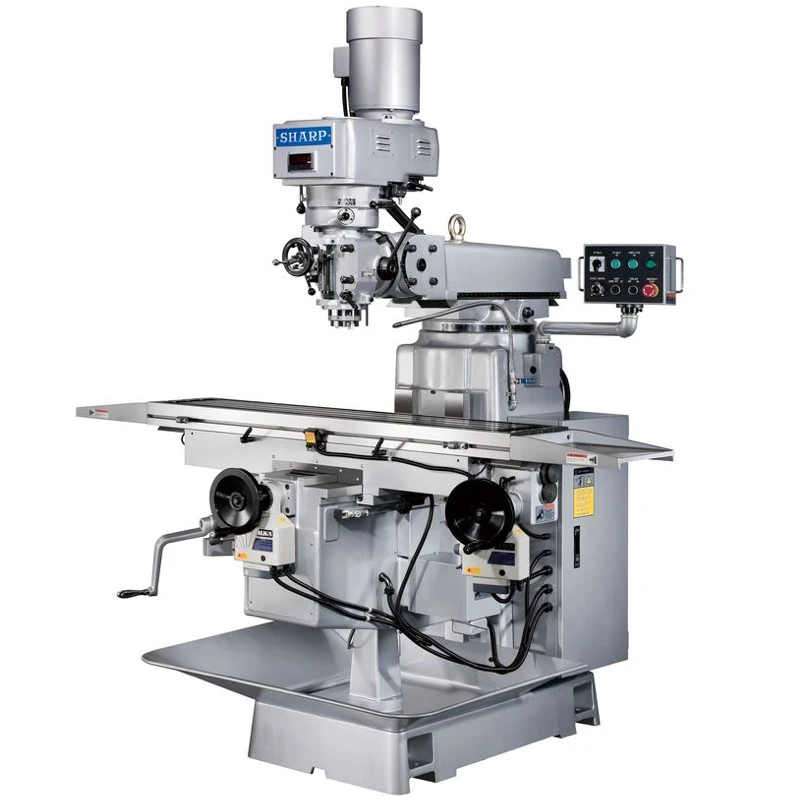

5 HP Motor, NT#40 Spindle
Digital Variable Sped Spindle (DVS Head)
Power Feed Table and Saddle
Extra Wide Saddle Design for Full Support of Table
Hardened & Ground Box Ways on Column and Saddle
Motorized Rapid Knee Positioning
Fully Ribbed High Tensile Strength Castings
Table Size: 12″ x 58″
T-Slots (No., Size, Pitch): 3, 5/8, 2.5 in.
Table Travel: X Longitudinal: 40 in.
Table Travel: Y Cross: 16 in.
Quill Travel: Z Vertical: 5 in.
Knee Travel: Vertical: 16 in.
Ram Travel: 17.8 in.
Spindle Nose to Table Top: 2-18 in.
Spindle Nose Taper: NT-40
Spindle Variable Speed Range: 70-4000 rpm
Spindle Motor (220V/440V): 5 HP
Quill Feed (Inch/Min) (3 speeds): 0.015, .003, .006 in.
Head Swivel Angle: 360°
Head Tilt Angle (L/R): +/- 90°
Head Tilt Angle (Up/Down): +/- 45°
Floor Area (W x D x H): 9.8 x 6.25 x 8.33 ft.
Approximate Weight: 4,500 lbs.
Power Consumption (220V): 3 KVA/8 amps
Power Consumption (440V): 3 KVA/4 amps
