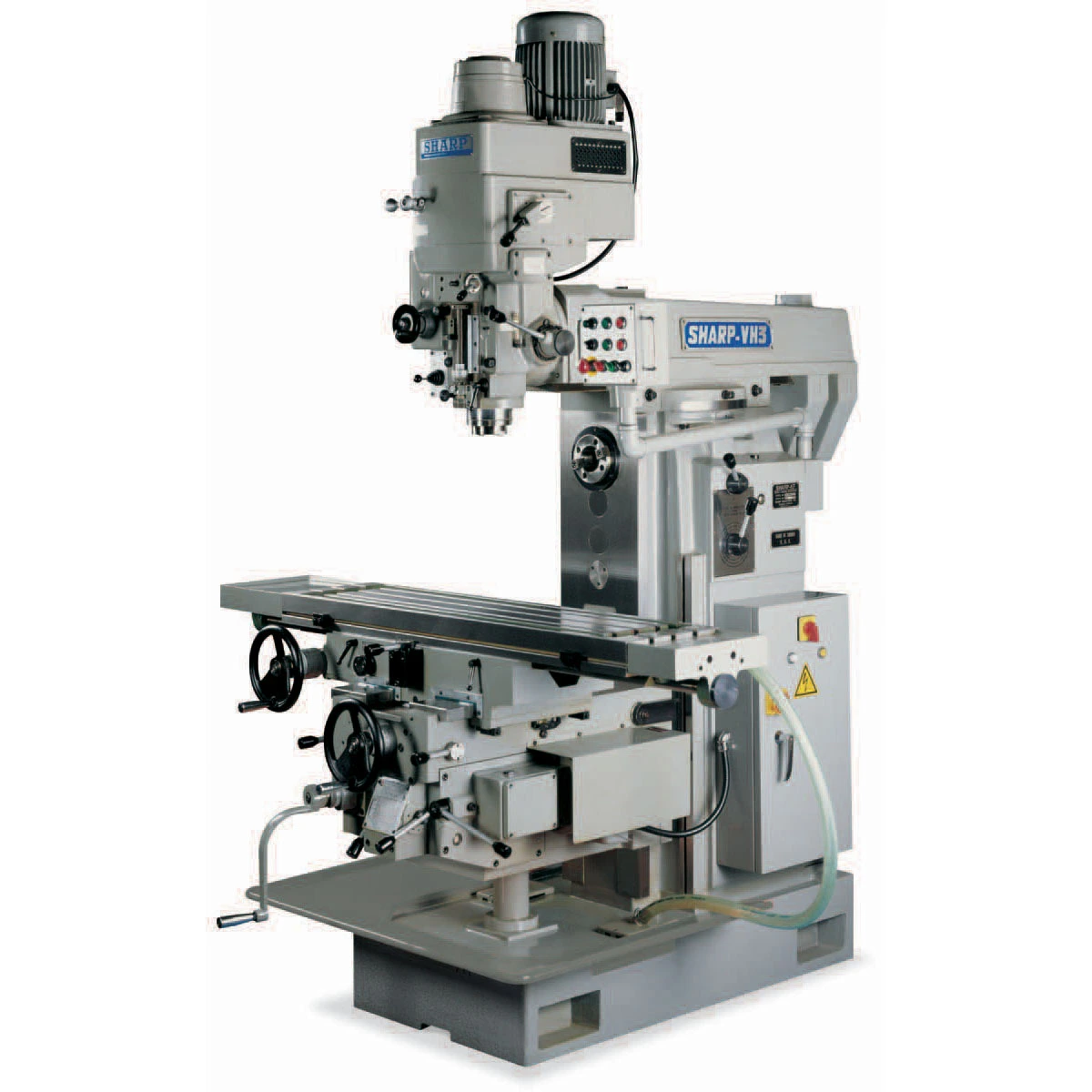

Unique double box way design on knee
Three-axis simultaneous feed and rapid traverse
Crossfeed leadscrew is mounted in middle of knee
Pressurized auto lube system
Metal casting tray at each end of table
Box type column way
Coolant system
Electro-magnetic spindle brake
Chip pan
1-1/4″ diameter horizontal arbor with 2 arbor supports
Tool Kit: Machine manual, half-nut wrench, 17m & 19m wrenches, set of 6 Allen wrenches, Phillips-head screwdriver, flat-head screwdriver, oil can, grease gun, rear way cover bracket, pin for indicator, and can of paint.
Super heavy duty constructions
5 HP, NST #40 vertical spindle 7.5 HP, NST #50 horizontal spindle with 12 speeds (35-1,382 rpm)
Vertical head has lever control for/rev for tapping, separate lever control for “2-Direction” boring
Massive hardened & ground box ways throughout
3-axis simultaneous power feeds with rapid traverse
Working Surface: 12″ x 51″
T-Slot (normal size x no. x pitch): 5/8″ x 3″ x 2-3/4″
Travel: 37-3/8″ x 14-13/16″ x 18-1/2″
Feeds (12 step): Vertical: 1/4 to 12-7/16 ipm
Long & Cross: 1/2 to 24-7/8 ipm
Rapid Traverse: Vertical: 59-13/16 ipm
Long & Cross: 116-1/2 ipm
Spindle Taper: NST #40
Spindle Speed (infinitely variable): 120-3,600 rpm
Spindle Nose to Table Surface: 5-1/8″ to 23-5/8″
Spindle Nose to Column Surface: 3-7/8″ to 24-1/8″
Quill Feed (3): 0.0019, 0.0038, 0.0076 ipr
Quill Travel: 5-1/8″
Quill Diameter: 4.6″
Swivel Angle of Head (left & right): 45°
Cross Travel of Arm: 20-1/16″
Horizontal Rotation of Overarm: 360°
Spindle Taper: NST #50
Spindle Speed (12 steps): 30-1,382 rpm
Spindle to Overarm: 7-1/8″
Spindle to Table: 7/8″ to 19-3/8″
Vertical Spindle: 5 HP
Horizontal Spindle: 7.5 HP
Table Feed and Rapid Traverse: 3 HP
Coolant Pump: 1/8 HP
Machine Height: 95-1/4″
Floor Area: 107″ x 90″
Net Weight (approx.): 5,830 lbs
VOLTAGE: 220 & 440 / 3ph
220V: 10.5 KVA / 26 amps
440V: 10.5 KVA / 13 amps
