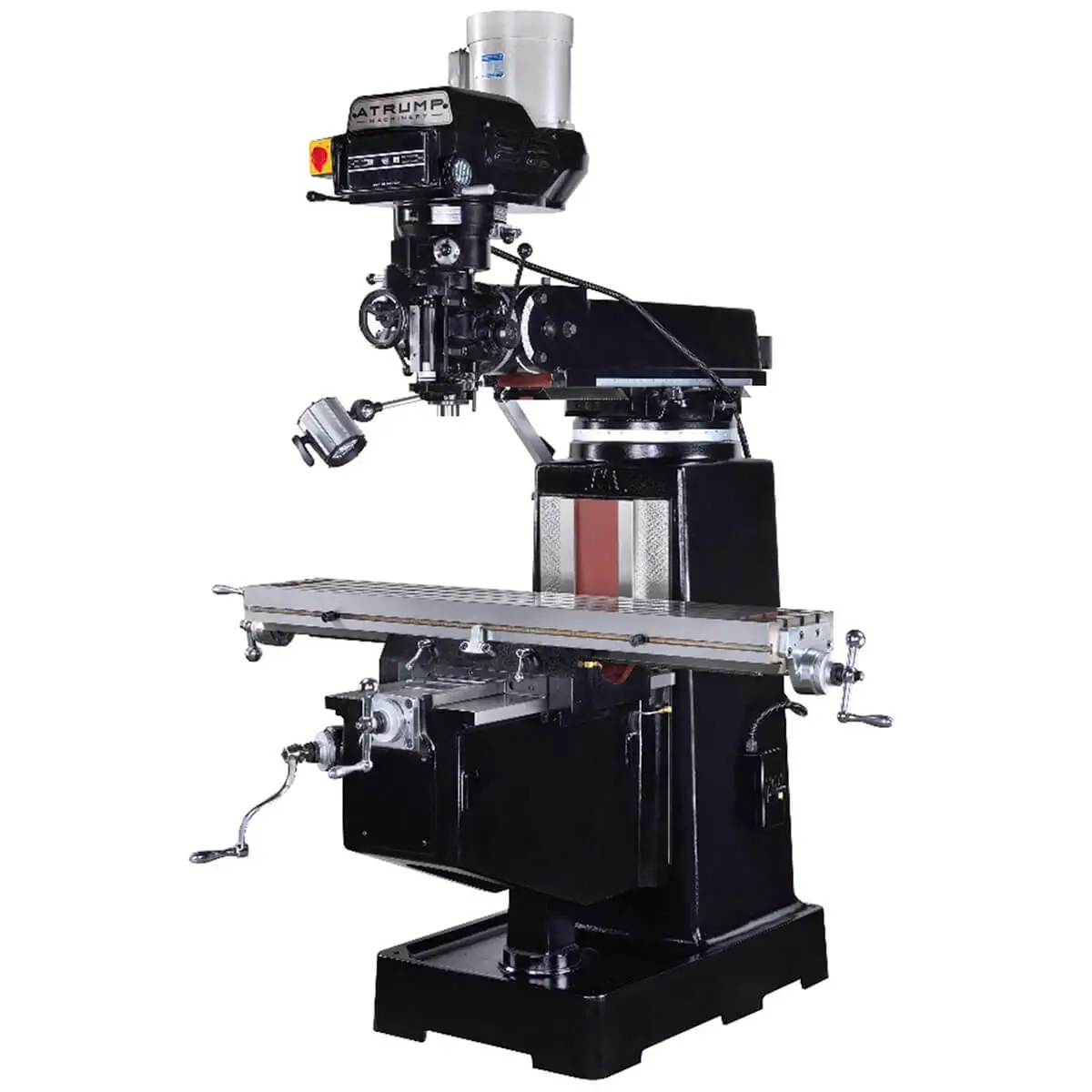

12″ x 60″ New Atrump Manual Knee Mill EVS Head Model KE5 Electronic Variable Speed Head
The Atrump Machinery milling machine has served as a reliable milling machine for over 35 years. From one man job shops to large manufacturing plants, tool rooms, tool and die shops. The new KE5 Atrump knee mill for sale at Worldwide Machine Tool is an exceptional vertical milling machine for every shop. Every Atrump mill for sale is built on the Bridgeport milling machine platform. The KE5 Atrump vertical milling machine is built in Taiwan using high quality Meehanite castings. The Atrump milling machine is warehoused in our United States shipping facilities. Each Atrump vertical milling machine is built with Class 7 spindle bearings, hardened and ground ways with Turcite coatings.
Atrump Machinery builds each knee mill to last and stands behind each machine with exceptional quality Atrump mill parts and service. Call Worldwide Machine Tool if you are in need of Atrump mill parts at 614-255-9000 Mon-Fri 8a.m. – 5p.m. . Search our site for Atrump mill reviews from happy owners that purchased a new high quality KE5 Atrump mill from Worldwide Machine Tool. Worldwide Machine Tool is your premier Atrump milling machine dealer. Call 614-255-9000 to order a base KE5 Atrump mill for sale or add additional optional parts and accessories to customize your new Atrump milling machine today.
12″ x 60″ New Atrump Manual Knee Mill EVS Head Model KE5 Specifications:
12″ x 60″ New Atrump Manual Knee Mill EVS Head Model KE5 Features:
Meehanite castings, box way design on the Y & Z axes
Rapid up & down motor
Electrical box with arm type control panel
X Y Z hardened & ground with Turcite-B coating guide way
Electric variable speed head 70-4,000rpm with Hi/Lo gears
Front steel way cover and rear chip rubber cover
Built in LED work light
Auto lubrication system
Coolant system with chip pan
Precision P5 class spindle bearing to ensure spindle run out within 0.0002inch
12″ x 60″ New Atrump Manual Knee Mill EVS Head Model KE5 Accessories:
5HP spindle motor
Rapid up/down motor
Arm type control panel
LED work light
Electronic operation manual
Way cover
Coolant system
Draw bar
Leveling bolts & plate
Auto lubrication
Chip tray
Electrical box
Tools & tool box
12″ x 60″ New Atrump Manual Knee Mill EVS Head Model KE5 Optional Accessories:
Table: 12″ x 60″
X travel: 39.4″
Y travel: 16″
Z travel: 18″
Quill travel: 5.5”
Quill diameter: 4.17”
Ram travel: 24”
Spindle nose to table top: 1.96″ to 21.25″
Spindle center to column: 4″ to 28″
Table load capacity: 1,100 lbs
T-slot (3): 0.71″ x 2.5″
Spindle taper: NT40
Spindle speed: 70 to 4,000 rpm with Hi/Lo gears
Transmission spindle-motor: Timing belt
Head swivel (right/left): ±90°
Head tilting angle (up/down): None
Spindle motor/Max power: 5HP
Coolant pump: 1/8 HP
Lubrication pump: Auto lubrication
Floor plan: 125″ x 79.4″ x 92.13″
Net weight: 4,620 lbs
Power requirement: 7 KVA 3 Phase 208V to 230V (Max)
Type of oil for oil way: Mobil Vectra #2
Air requirement: With Opt. power draw bar 90-100 psi
