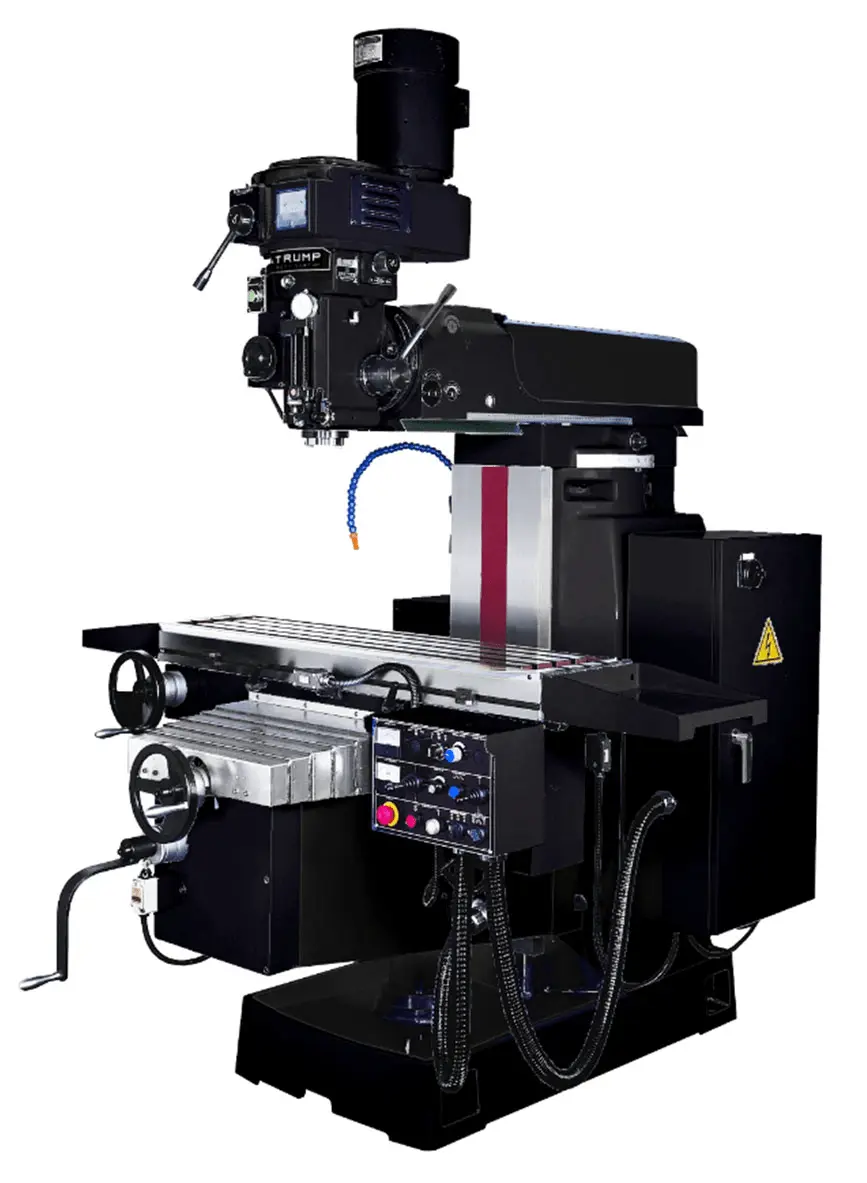

New Atrump mill for sale Model KV6 with a 12″ x 60″ table. Mechanical Variable Speed Head.
The Atrump Machinery milling machine has served as a reliable milling machine for over 35 years. From one man job shops to large manufacturing plants, tool rooms, tool and die shops. The new KV6 Atrump knee mill for sale at Worldwide Machine Tool is an exceptional vertical milling machine for every shop. Every Atrump mill for sale is built on the Bridgeport milling machine platform. The KV6 Atrump vertical milling machine is built in Taiwan using high quality Meehanite castings. The Atrump milling machine is warehoused in our United States shipping facilities. Each Atrump vertical milling machine is built with Class 7 spindle bearings, hardened and ground ways with Turcite coatings.
Atrump Machinery builds each knee mill to last and stands behind each machine with exceptional quality Atrump mill parts and service. Call Worldwide Machine Tool if you are in need of Atrump mill parts at 614-255-9000 Mon-Fri 8a.m. – 5p.m. Search our site for Atrump mill reviews from happy owners that purchased a new high quality KV6 Atrump mill from Worldwide Machine Tool. Worldwide Machine Tool is your premier Atrump milling machine dealer. Call 614-255-9000 to order a base KV6 Atrump mill for sale or add additional optional parts and accessories to customize your new Atrump milling machine today.
12″ x 60″ New Atrump Super Heavy Duty Manual Knee Mill Model KV6 Specifications:
12″ x 60″ New Atrump Super Heavy Duty Manual Knee Mill Model KV6 Features:
Meehanite castings, box way design on the Y & Z axes
C5 double nut precision ball screw screws for high accuracy and long lasting
Servo motor for X & Y axes
Rapid up & down motor
X Y Z hardened & ground with Turcite-B coating guide way
Mechanical variable speed head 70-3,800rpm with Hi/Lo gears
Front steel way cover and rear chip rubber cover
Built in LED work light
Auto lubrication system
Coolant system with chip pan
Precision P5 class spindle bearing to ensure spindle run out within 0.0002inch
12″ x 60″ New Atrump Super Heavy Duty Manual Knee Mill Model KV6 Standard Accessories:
Auto lube system
5HP spindle motor
Rapid up/down motor
Servo motor for X & Y
Coolant system
Chip pan
Draw bar
Front steel way cover
Rear rubber cover
Tools & tool box
Halogen work light
Parts manual machine
12″ x 60″ New Atrump Super Heavy Duty Manual Knee Mill Model KV6 Optional Accessories:
Table: 12″ x 60″
X travel: 47.2″
Y travel: 18″
Z travel: 19.69″
Quill travel: 5.5”
Quill diameter: 4.13”
Ram travel: 24”
Saddle: 53.5″
Table load capacity: 1,100 lbs
T-slot (3): 0.71″ x 2.5″
Spindle taper: NT40
Spindle speed: 70 to 3,800 rpm with Hi/Lo gears
Transmission spindle-motor: Timing belt
Head swivel (right/left): ±90°
Spindle motor/Max power: 5 HP
Coolant pump: 1/8 HP
Lubrication pump: Auto lubrication
Floor plan (WxDxH): 124″ x 76.7″ x 96.4″
Net weight: 5,720 lbs
Power requirement: 10 KVA 3 phase 208V to 230V (Max)
Type of oil for oil way: Mobil Vectra #2
Air requirement: With Opt. power draw bar 70-100 psi
