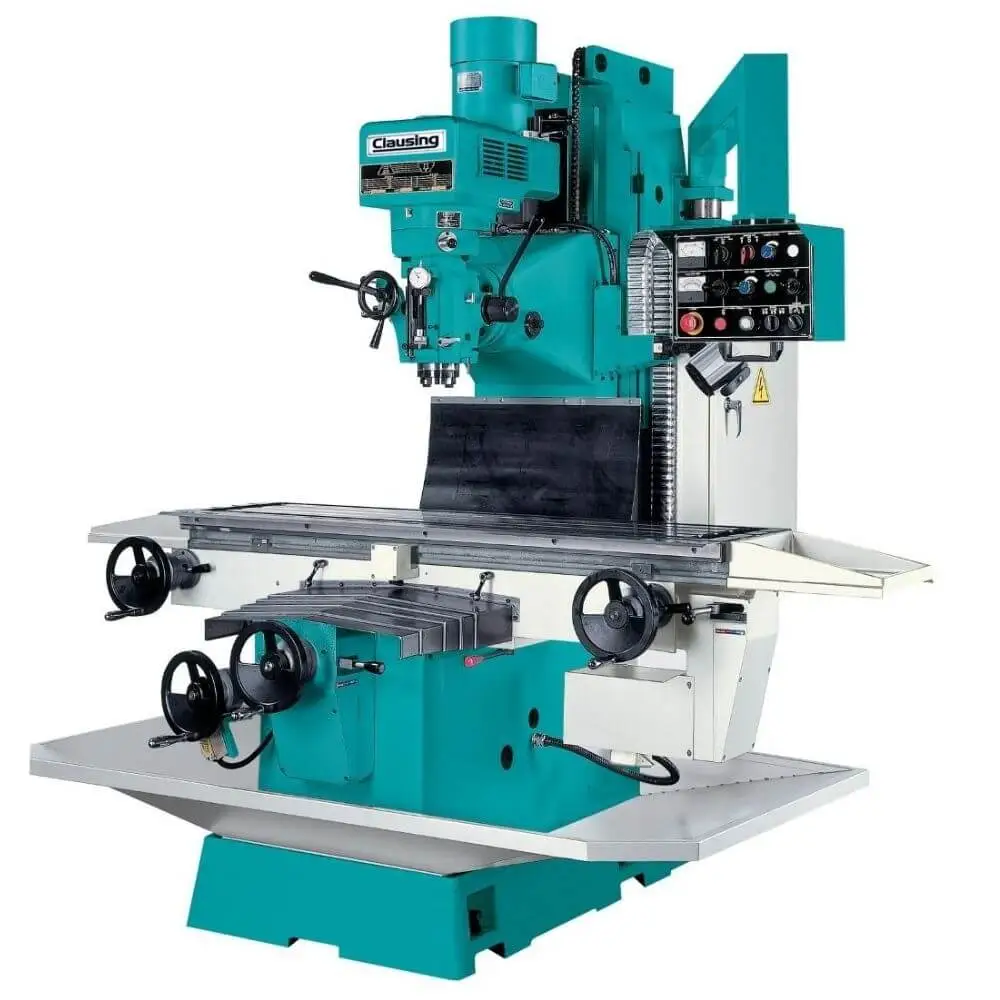

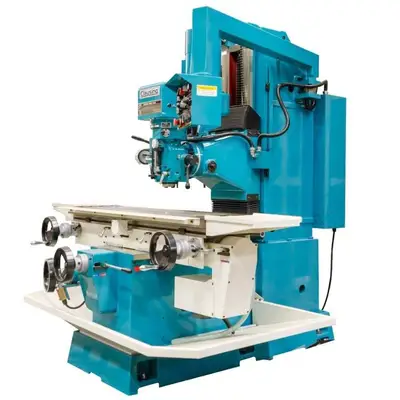

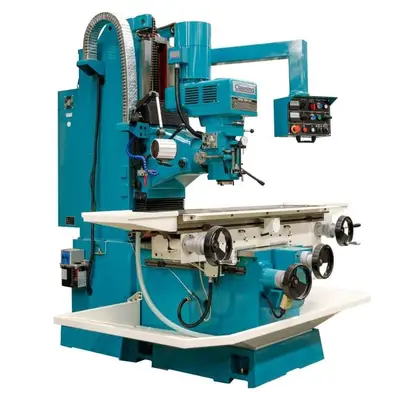

Powerful 5 Hp spindle drive motor
Inverter variable speed drive with 2 speed ranges and 2 Mechanical speed ranges
Hardened and ground spindle with NMTB40 taper
Hardened and chromed quill with 5” travel
CP4 ABEC7 angular contact spindle bearings
Telescopic Z axis ballscrew cover
Z axis concertina accordion way covers reduces overall travel by 50mm
Rubber Y rear axis way covers
Stainless steel front axis way cover
Coolant system with pump
Long arm halogen work light
C7 double nut X/Y/Z axes 1.26” diameter precision ballscrew
Hardened and ground table surface
Ground T-slots to provide accurate reference edge
Hardened and ground, square X/Y ways
Turcite B coating on saddle X/Y axes ways
Meehanite castings for superior rigidity and wear resistance
Transformer
Automatic lubrication system with alarm
Tools, toolbox and parts
Standard voltage 230 3 phase (other voltages require a transformer or special order)
Table size: 15″ x 60″
Table load capacity: 1,800 lbs.
No. of T-slots: 3
T-slot width: 0.709″
T-slot center distance: 3.15″
Table ways (X axis): Dovetail
Bed ways (Y axis): Square
Column ways (Z axis): Square
Longitudinal (X axis): 41.34″
Cross (Y axis): 19.69″
Vertical (Z axis): 23.62″
Quill diameter: 4.13″
Quill travel: 5″
Head tilt (left or right): 90º
Feedrate X & Y axes: 1.1-43.3 (in/min)
Feedrate Z axis: 0.71-31 (in/min)
X & Y axes AC motor with brake: 1 Hp
Z axis AC motor with brake: 0.5 Hp
Spindle motor: 5 Hp (inverter VS)
Spindle speed (infinitely variable): 65-5160 rpm
No. of speed ranges: 2
Low gear range: 65-590 rpm
High gear range: 575-5160 rpm
Spindle taper: NMTB 40
Quill feed (in/revolution): 0.0016/0.003/0.006
Height: 85.43″
Working width: 92.91″
Working depth: 76.77″
Width across column ways: 11.73″
Length of saddle on bed: 25.98″
Width across bed ways: 20.47″
Spindle nose to table: 3.93″-27.55″
Center of spindle to column ways: 20.47″
Floor to table surface: 37″
Table to column ways (min/max): 2.05″/21.73″
Ball screw dia./pitch: 1.26″/0.2″
Ball screw class: C7
Gross weight (approximately): 6,600 lbs.
