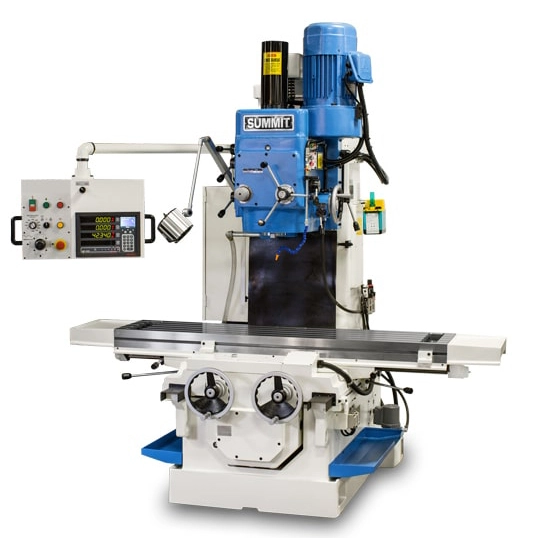

15″ x 67″ New Summit #3 Vertical Bed Mill

Summit® #3 Series Vertical Bed Mills offer high production accuracy due to their heavy construction and innovative design. The large choice of speeds and feeds makes these Vertical Bed Mills the ideal choice for job shops, production shops, repair, and tool & die shops. The alloy steel main spindle nose of this milling machine is thermally treated and precision ground, then fixed on high accuracy bearings and the saddle assembly travels on precision ground slides which ensure rigidity for large capacity table size and loads. This milling machine also has an automatic lube system which ensures consistent lubrication of the speed and feed boxes. Changing of feeds and speeds is easy and efficient, combined with centralized operator controls, these milling machines are designed for virtually uninterrupted operation.
Automatic lubrication
Conveniently located operator’s panel
Rapid traverse
Ball screws on X & Y axis
3 Axis digital readout
Air power drawbar
Coolant
Work light
Spanners & wrenches
Leveling bolts & pads

About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.

Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/

Working surface: 15″ x 67″
Table top to floor: 31.5″
Number of T-slots: 5
Number of feeds: Infinitely variable
Maximum table load: 1,760 lbs
Longitudinal travel (X): 39.4″
Cross travel (Y): 15″
Vertical head travel (Z): 19.6″
Spindle speeds, (no.) range: (12) 45 – 1500 RPM
Spindle feeds (no.) range: (Inf. var.) 0.002 – 0.008 IPR
Spindle nose to table top: 3.9″ – 23.6″
Spindle center to column: 14.91″
Spindle taper: #50
Longitudinal: 1.1 – 34.4″ IPM
Cross: 1.1 – 34.4″ IPM
Rapid traverse: 113.4 IPM
Vertical head: 7.5 HP
Feed motor: N/A
Horizontal head: N/A
Table feed: 1.7 HP
Weight: 8,800 lbs
L x W x H: 79″ x 126″ x 95″
